E700M GROUND HEATER, SKID MT

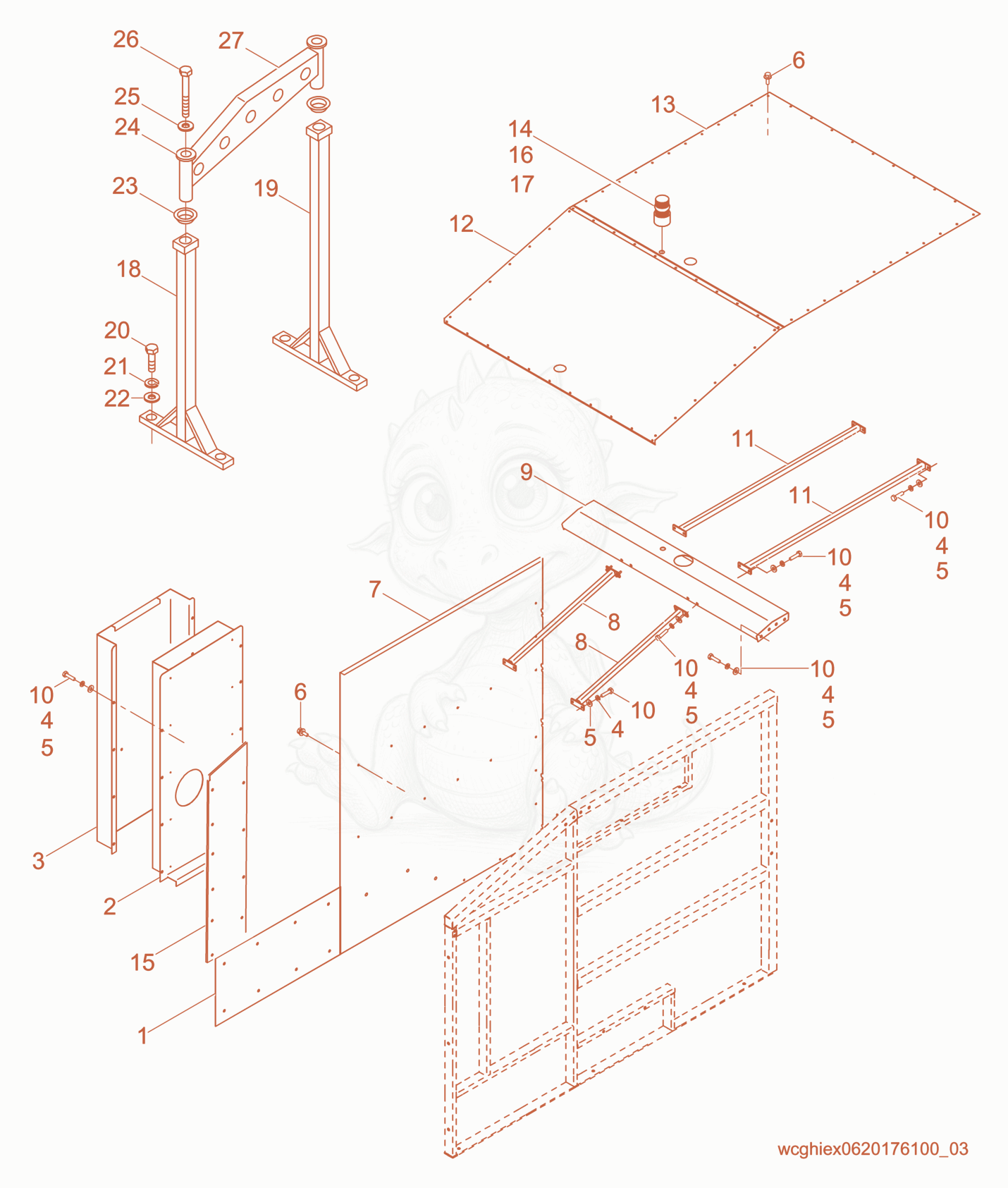

E700M Upper Enclosure cpl. Diagram

Exploded parts diagram of the Upper Enclosure cpl. of a Wacker Neuson E700M, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000173516Not stocked
    Right Side Below Exhaust Cover Kit×1
  • 25000167144Not stocked
    Inner exhaust stack cpl.×1
  • 35000167127Not stocked
    Stack guard×1
  • 45000167729Not stocked
    Flat washer×33
  • 55000167733Not stocked
    Lock washer×33
  • 65000167722Not stocked
    Screw w/washer×90
  • 75000173514Not stocked
    Right Side Cover Kit×1
  • 85000169572Not stocked
    Support×2
  • 95000169568Not stocked
    Brace×1
  • 105000167721Not stocked
    Bolt×33
  • 115000169576Not stocked
    Support×2
  • 125000173511Not stocked
    Top Front Cover Kit×1
  • 135000173510Not stocked
    Rear Roof Cover Kit×1
  • 145000166797Not stocked
    Light×1
  • 155000173515Not stocked
    Front Right Cover Kit×1
  • 165000166792Not stocked
    Plug×1
  • 175000166800Not stocked
    Cable×1
  • 185000169574Not stocked
    Lifting bail×1
  • 195000169575Not stocked
    Lifting bail×1
  • 205000167763Not stocked
    Bolt×4
  • 215000167762Not stocked
    Washer-lock×4
  • 225000167760Not stocked
    Washer-flat×4
  • 235000168522Not stocked
    Grommet×2
  • 245000167339Not stocked
    Disc×2
  • 255000167855Not stocked
    Washer-lock×2
  • 265000167856Not stocked
    Bolt×2
  • 275000169573Not stocked
    Lifting bail×1
