Converter FUE 1,5/250/200

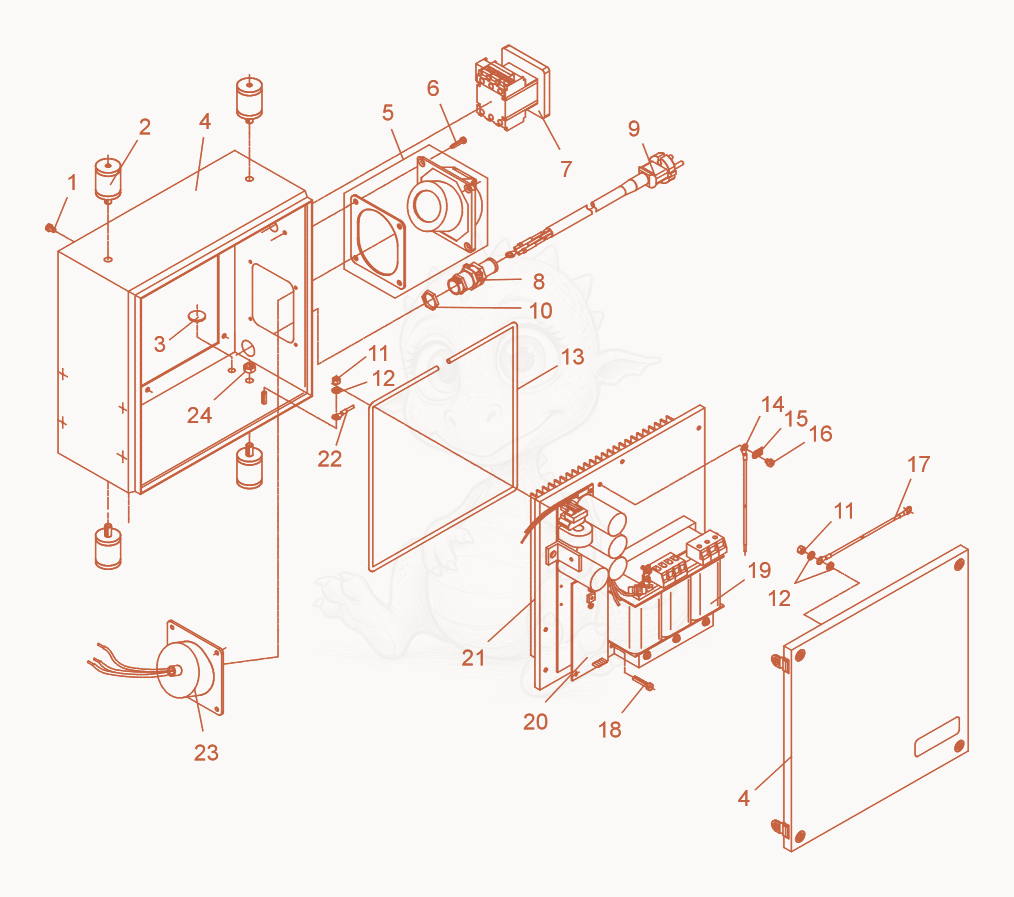

FUE1,5/250/200W Housing cpl. Diagram

Exploded parts diagram of the Housing cpl. of a Wacker Neuson FUE1,5/250/200W, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000013176Not stocked
    Cheese head screw×1
  • 5000038489
    $0.21
    CABLE-TIE 4.0 X 130MM,NO MOUNT - 5000038489Unknown×1
  • 5000102091Not stocked
    Supply line×3
  • 5000106365Not stocked
    Resistor×1
  • 15000011715
    $0.13
    SCREW M5 X 10 CHEESE HD. - 5000011715×5
  • 25000096687
    $10.80
    Shockmount - 5000096687×4
  • 35000099898
    $11.41
    Filter - 5000099898×2
  • 45000105348Not stocked
    Housing×1
  • 55000044399Not stocked
    Mounting socket×1
  • 65000069468
    $0.13
    SCREW B3.9 X 19, - 5000069468×4
  • 75000096071Not stocked
    Off-switch×1
  • 85000037649Not stocked
    Screw connection cpl.×1
  • 95000098239Not stocked
    Power supply cable with plug×1
  • 105002001146Not stocked
    Hexagon nut×1
  • 115000012997
    $0.26
    NUT-LOCK,M5 - 5000012997×4
  • 125000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×3
  • 135000099334Not stocked
    Rubber cord×1
  • 145000105988Not stocked
    Supply line×1
  • 155002003378
    $7.12
    LABEL-GROUND SYMBOL - 5002003378×1
  • 165000011716
    $0.10
    SCREW M5 X 8 CHEESE HD. - 5000011716×4
  • 175000099383Not stocked
    Supply line×2
  • 185000011711
    $0.13
    SCREW M5 X 25 CHEESE HD. - 5000011711×4
  • 195000109415Not stocked
    Transformer×1
  • 205000105663Not stocked
    Frequency converter×1
  • 215000105664Not stocked
    Cooling device×1
  • 225000109528Not stocked
    Supply line×1
  • 235000094738Not stocked
    Protective cap×1
  • 245000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
