Converter FUE 1/048/240

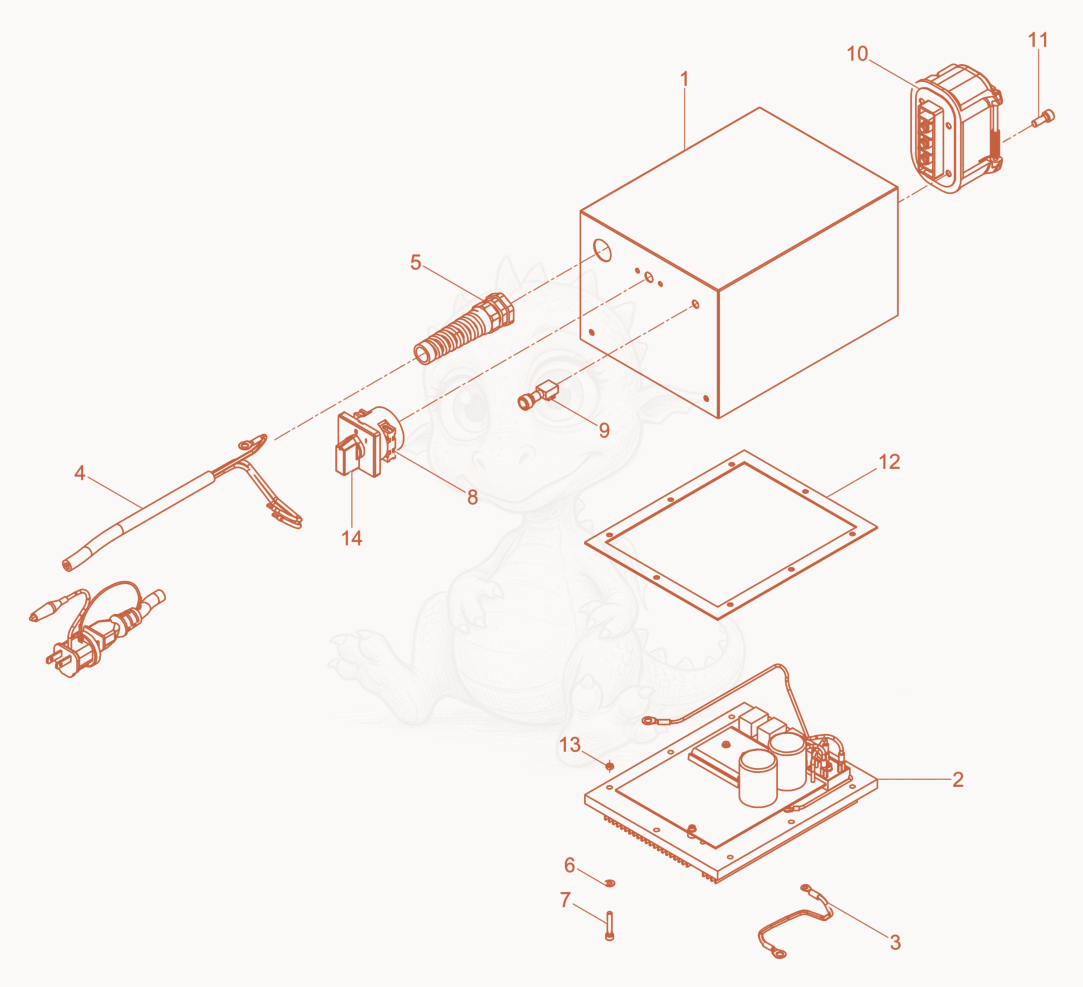

FUE1/048/240 Upper Part cpl. Diagram

Exploded parts diagram of the Upper Part cpl. of a Wacker Neuson FUE1/048/240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000125084Not stocked
    Housing×1
  • 25000125099Not stocked
    Cooling device×1
  • 35000125094Not stocked
    Ground wire cpl.×2
  • 45000125657Not stocked
    Power supply cable cpl.×1
  • 55000124669Not stocked
    Screw connection×1
  • 65000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×8
  • 75000125091
    $0.43
    Socket head cap screw - 5000125091×8
  • 85000124681Not stocked
    Off-switch×1
  • 95000124652Not stocked
    Pilot lamp×1
  • 105000124541Not stocked
    Socket cpl.×1
  • 115000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×8
  • 125000124749Not stocked
    Seal×1
  • 135000010880
    $0.03
    NUT M6 8,HEX - 5000010880×1
  • 145000219558
    $73.29
    HANDLE-REPLACEMENT,SWITCH - 5000219558×1
