FUE M/S 75A 6CEE-32A

FUEM/S75A6CEE-32A Converter cpl. Diagram

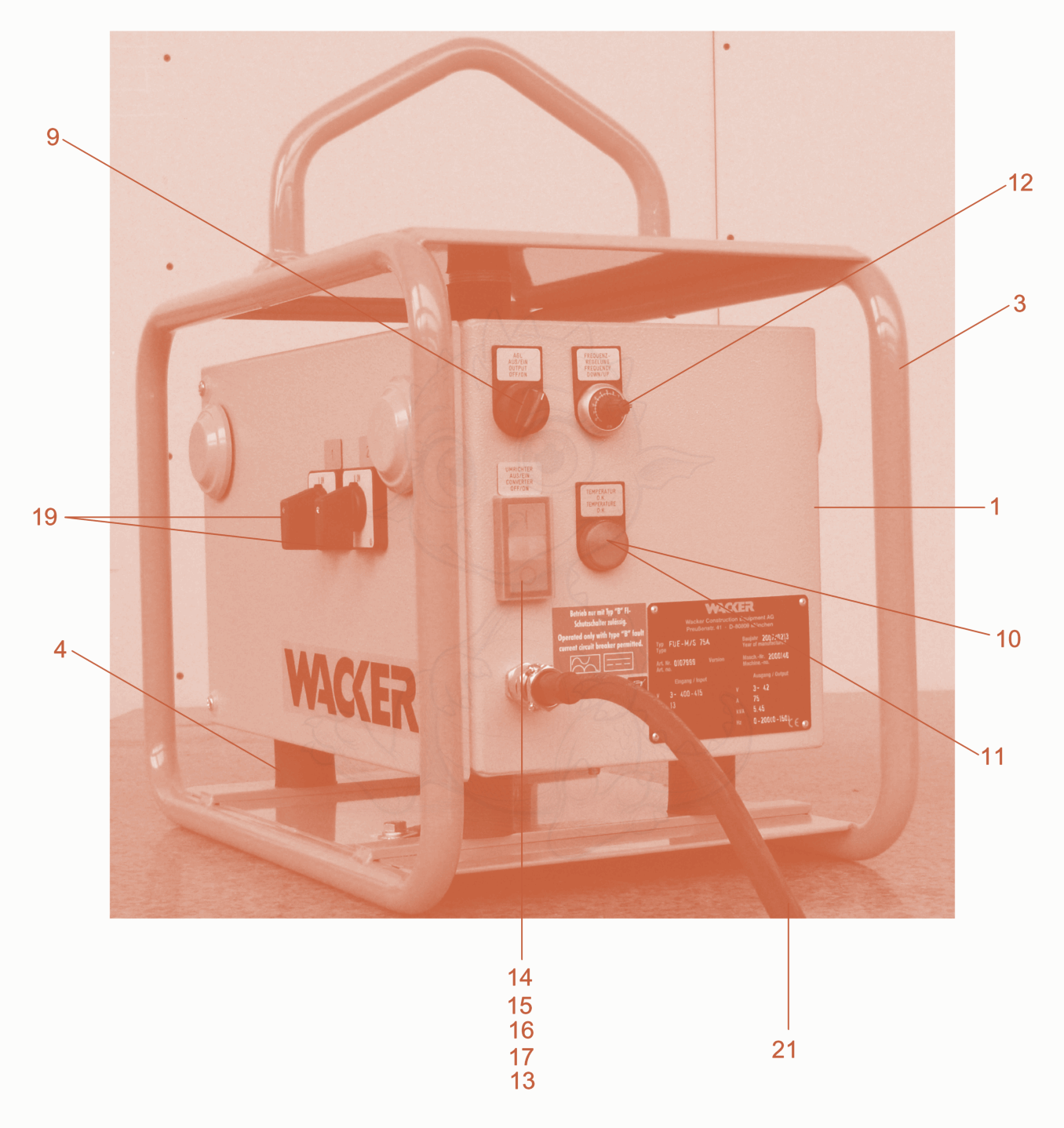

Exploded parts diagram of the Converter cpl. of a Wacker Neuson FUEM/S75A6CEE-32A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000214841Not stocked
    Terminal box×1
  • 35000212051
    $1,191.39
    FRAME-PROTECTIVE - 5000212051×1
  • 45000212050
    $12.43
    SHOCKMOUNT - 5000212050×5
  • 95000212078
    $113.93
    SWITCH-ROTARY - 5000212078×1
  • 105100072072Not stocked
    Indicator lamp×1
  • 115100072071Not stocked
    lamp holder×1
  • 125000212049
    $244.74
    RESISTOR-POTENTIOMETER - 5000212049×1
  • 135000212083
    $35.41
    HOLDER-LAMP - 5000212083×1
  • 145100059334Not stocked
    Push button switch×1
  • 145100059689Not stocked
    Holder×1
  • 145100059692Not stocked
    LED-Modul×1
  • 155100059690Not stocked
    Kontaktmodul×1
  • 165100059691Not stocked
    Kontaktmodul×1
  • 175100059335Not stocked
    Cap×1
  • 195000214845Not stocked
    Rotary switch×1
  • 215000214872Not stocked
    Power supply cablePower supply cable×1
