G100 Generator,Custom,Exempt

G100 Fan Guard Diagram

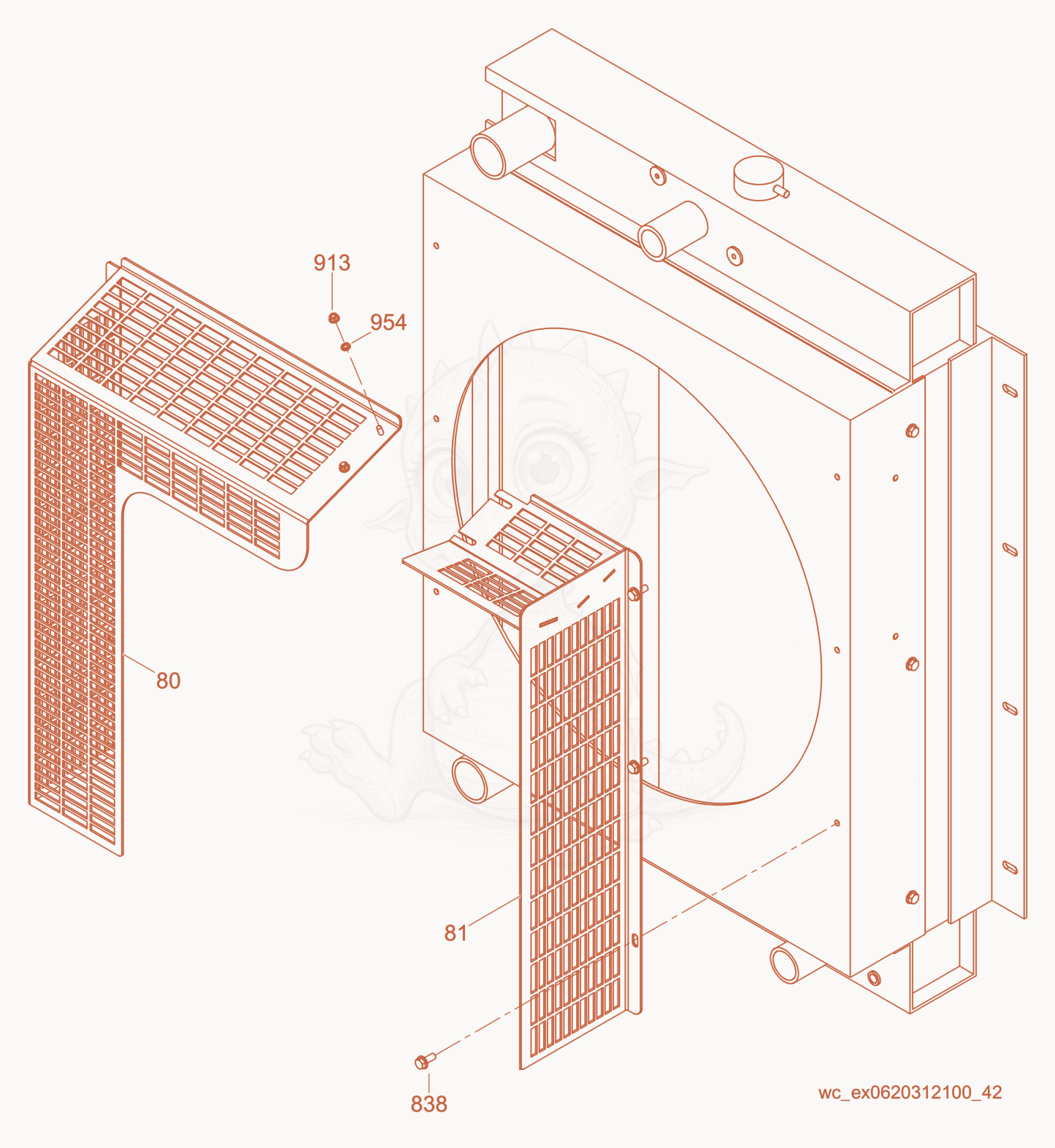

Exploded parts diagram of the Fan Guard of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 805000174566
    $1,954.68
    GUARD-FAN,LEFT,ML P-5000176420 - 5000174566×1
  • 815000174567
    $1,722.55
    GUARD-FAN,RIGHT,ML P-5000176420 - 5000174567×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
