G1100 Generator

G1100 Main breaker Diagram

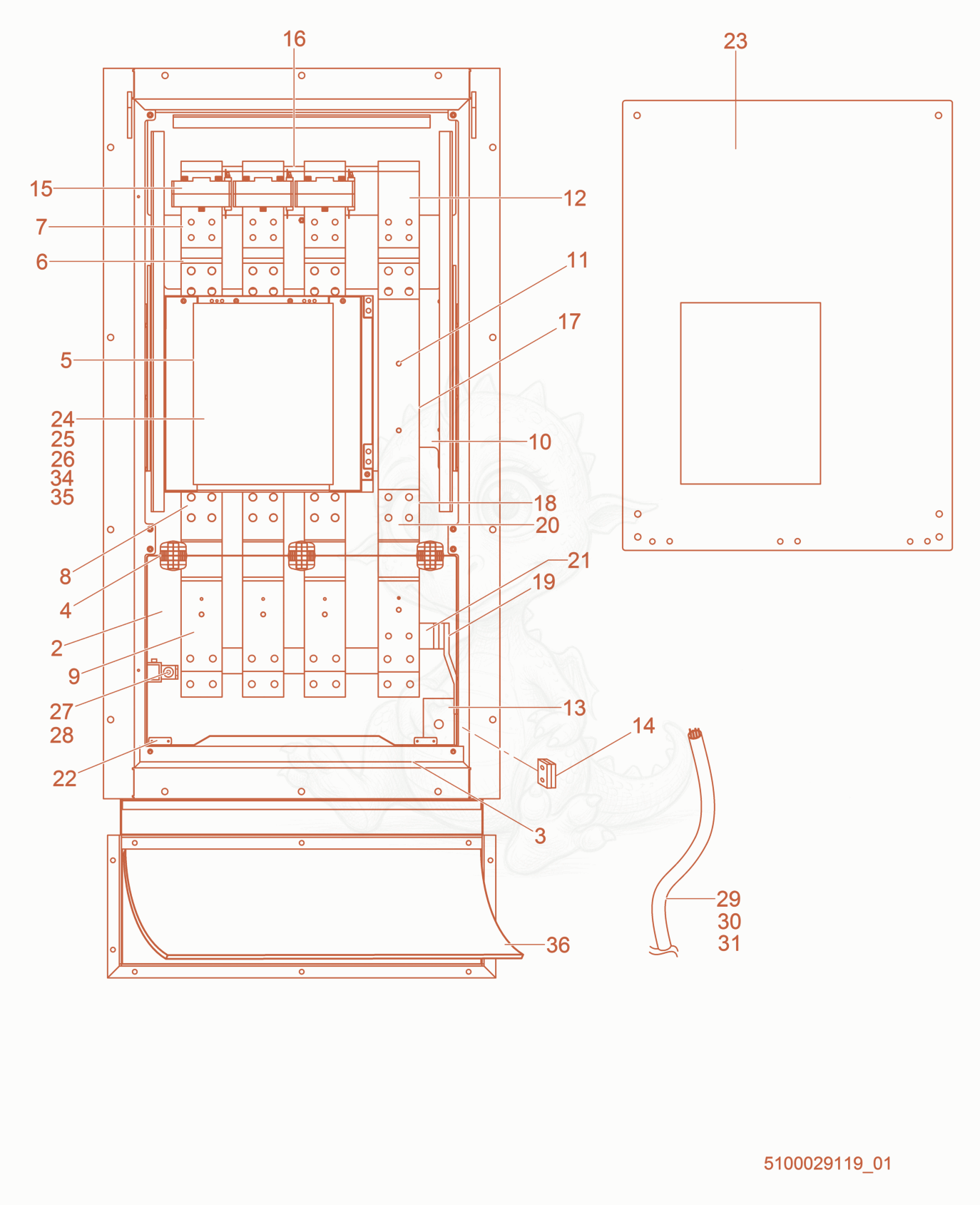

Exploded parts diagram of the Main breaker of a Wacker Neuson G1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100029375
    $3,820.30
    DOOR-ACCESS, G1100 Main B & Lugs - 5100029375×1
  • 35100029951
    $450.88
    Latch Plate, G1100 Breaker Access - 5100029951×1
  • 45100027692
    $68.96
    Hinge-detent - 5100027692×3
  • 55100029940
    $15,747.34
    1600Amp 3 Pole Circuit Breaker, T8 - 5100029940×1
  • 65100029941
    $155.39
    BUS BAR,T8 Incoming,Inner, G1100 - 5100029941×3
  • 75100029942
    $166.10
    BUS BAR,T8 Incoming, Outer, G1100 - 5100029942×4
  • 85100029943
    $182.17
    BUS BAR,T8 Outgoing, Outer, G1100 - 5100029943×3
  • 95100029944
    $192.89
    BUS BAR,T8 Outgoing, Inner, G1100 - 5100029944×3
  • 105100029945
    $407.21
    CONTROL PANEL BACK PLATE - 5100029945×1
  • 115100029377
    $30.95
    Insulator, S1050 Busbar insulator - 5100029377×6
  • 125100029946
    $166.10
    BUS BAR,T8 Incoming N, Inner, G1100 - 5100029946×1
  • 135100029947
    $182.17
    BUS BAR,T8 Ground, G1100 - 5100029947×1
  • 145100029948
    $150.02
    BUS BAR,T8 Ground Bar Spacer, G1100 - 5100029948×2
  • 155100029949
    $229.87
    Transformer, 1600/5A - 5100029949×3
  • 165100029952
    $282.91
    SPACER BAR - 5100029952×2
  • 175100029953
    $353.63
    BUS BAR,T8 Neutral, G1100 - 5100029953×1
  • 185100029954
    $274.07
    SPACER BAR, T8 Neutral - 5100029954×1
  • 195100029955
    $212.18
    BUS BAR,T8 N/G, G1100 - 5100029955×1
  • 205100029956
    $318.27
    BUS BAR,T8 Neutral, Outer G1100 - 5100029956×1
  • 215100029957
    $212.18
    BUS BAR,Neutral Link, G1100 - 5100029957×1
  • 225100029958
    $15.00
    Magnetic door latch - 5100029958×2
  • 235100029374
    $407.21
    Panel-Cover, G1100 Main Breaker - 5100029374×1
  • 245100028119
    $332.61
    CLOSING COIL- ABB, 24V - 5100028119×1
  • 255100028151
    $526.96
    UNDERVOLTAGE RELEASE- ABB, 24V - 5100028151×1
  • 265100028152
    $1,519.68
    GEAR MOTOR OPER.- ABB, 24V - 5100028152×1
  • 275100019094
    $226.55
    Cable Entry Flap Limit Switch - 5100019094×1
  • 285100027713
    $34.49
    PLUNGER-LIMIT SWITCH (CEP758, G625) - 5100027713×1
  • 295100031862
    $337.56
    CABLE, 240sqmm, Black, 2m, G1100 - 5100031862×1
  • 305100031863
    $33.59
    LUG-CRIMP, 240sqmmX12MM - 5100031863×1
  • 315100031864
    $32.73
    LUG-CRIMP, 240sqmmX10MM - 5100031864×1
  • 345100031906
    $910.87
    Terminal, flat bar, G1100 - 5100031906×8
  • 355100031905
    $257.18
    OPENING COIL- ABB, 24V - 5100031905×1
  • 365100032372
    $128.59
    Cable Entry Flap, G1100 - 5100032372×1
