G120 Generator

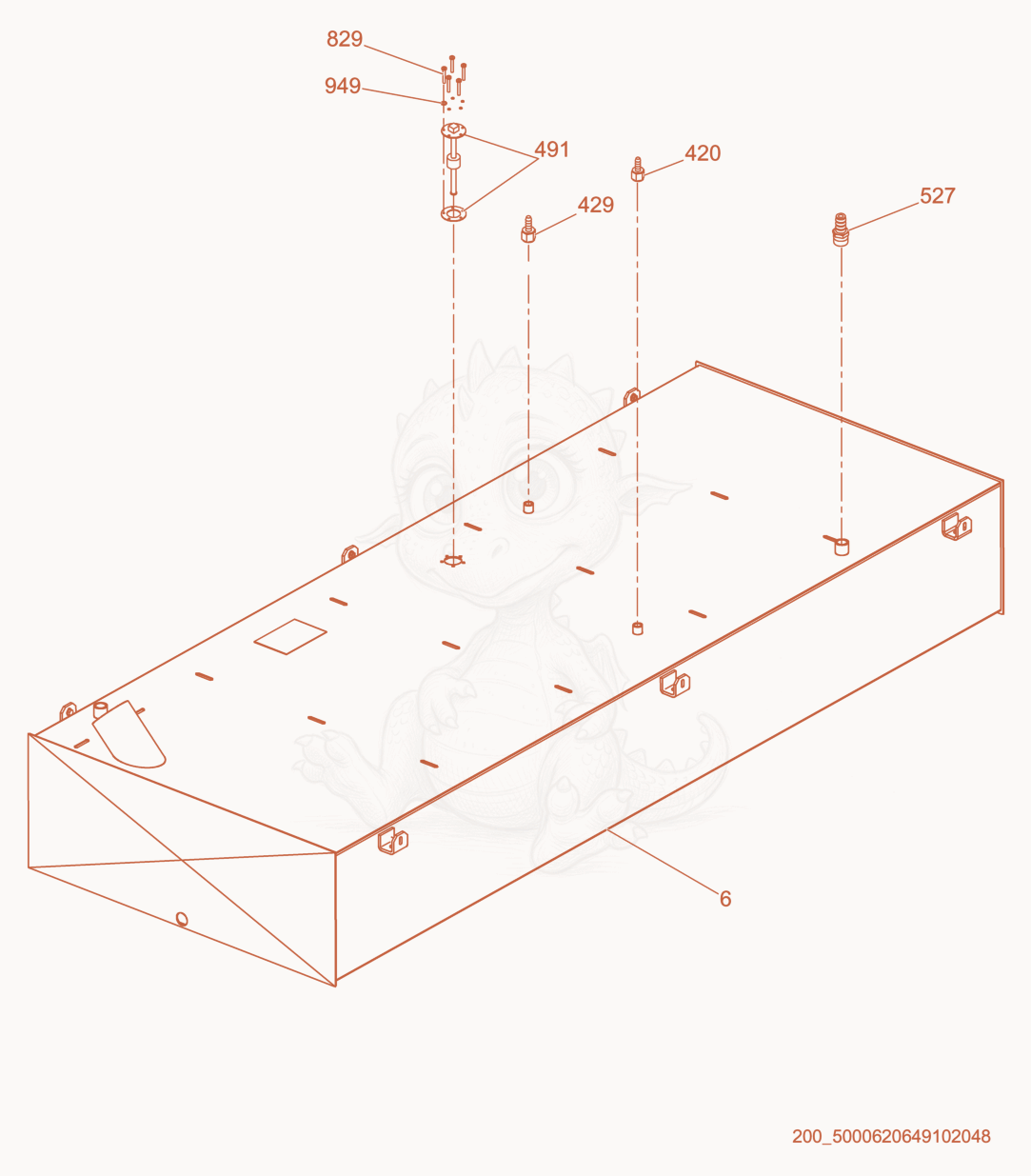

G120 Fuel tank Diagram

Exploded parts diagram of the Fuel tank of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65000171590
    $4,066.18
    TANK-FUEL 209 GAL - 5000171590×1
  • 4205000160596
    $11.12
    FITTING-5/16 BARB X 3/8 F.NPT - 5000160596×1
  • 4295000160980
    $4.62
    FITTING 1/4 BARB X 3/8 FNPT - 5000160980×1
  • 4915200001006
    $182.05
    Sensor-Fuel,350w/connector - 5200001006×1
  • 4965000158908
    $4.39
    GASKET-FUEL SENDER - 5000158908×1
  • 5275000155285
    $38.76
    FITTING-FUEL VENT - 5000155285×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×5
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
