G125 GENERATOR,SKID BASE

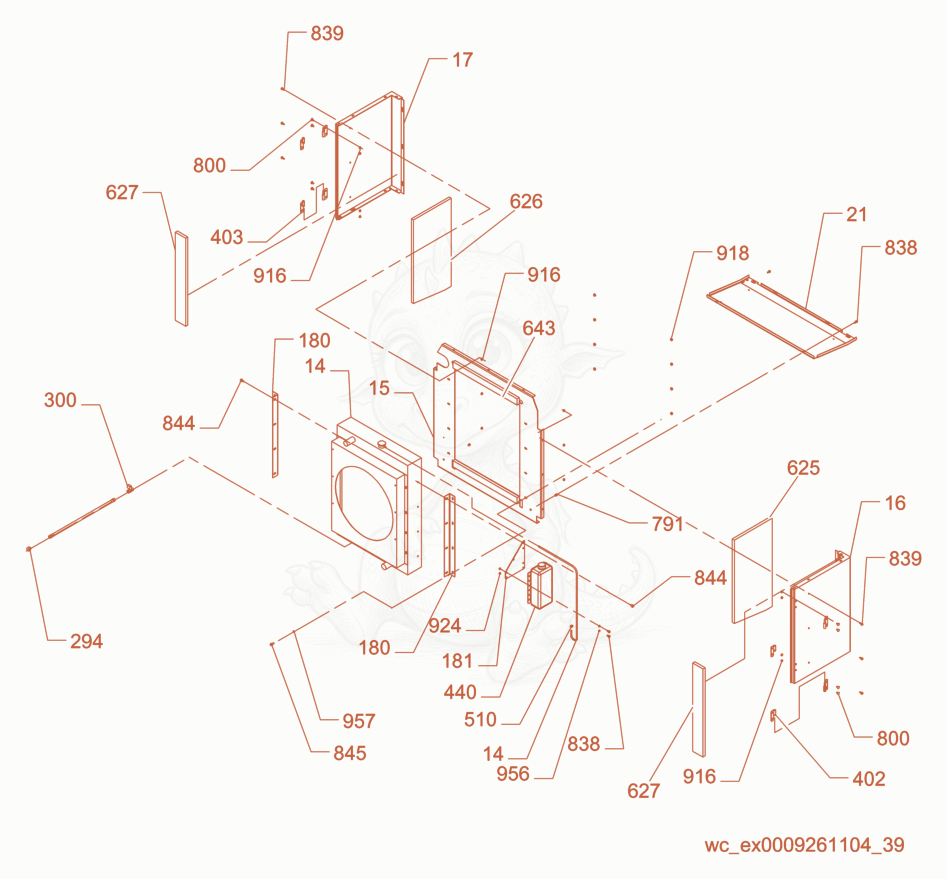

G125 Radiator cpl. Diagram
- RADIATOR-W/SHROUD & CAP,G125 - 5000153594×1
- Cap-Radiator, LG neck, 10PSI - 5200001887×1
- PANEL-BULKHEAD,G125 - 5000153592×1
- PANEL-WELDMENT,RF SIDE - 5000153739×1
- PANEL-WELDMENT,LF FRT SIDE,LRG - 5000153737×1
- PANEL-WELDMENT,SPLASH,LRG - 5000153731×1
- BRACKET-RADIATOR,LRG - 5000153593×2
- BRACKET-BOTTLE,OVERFLOW P-5000176420 - 5000155239×1
- PLUG-1/2 NPT HEX,NYLON - 5000154343×1
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- HINGE-DOOR,RIGHT SIDE - 5000153026×2
- HINGE-DOOR,LEFT SIDE - 5000153027×2
- BOTTLE-ASSY 6 QT. 5/16 BARB. - 5000155241×1
- CLAMP-THREADED,.21-.63 - 5000028707×1
- INSULATOR-EXHAUST COMP,RIGHT - 5000152898×1
- INSULATOR-EXHAUST COMP,LEFT - 5000152899×1
- INSULATOR-EXHST COMP,FRONT TOP - 5000152900×2
- Insulator-radiator seal - 5000152912×2
- INSERT M8,THREADED - 5000085454×2
- BOLT-CARRIAGE M8X20 - 5000011153×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- SCREW-M8 X 25 HX SER FLG ZP - 5000155213×3
- SCREW M10X20-10.9 HX SFLG MZP - 5000154521×4
- SCREW M10X25 HEX,SER.FLG ZP - 5000116164×8
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×6
- NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
- NUT-LOCK M8 HEX - 5000010367×2
- WASHER-FLAT,M8,ZINC - 5000010622×2
- WASHER B10.5 FLAT - 5000010621×8
