G150 MOBILE GENERATOR,STANDARD

G150 Rear Panels/Muffler Diagram

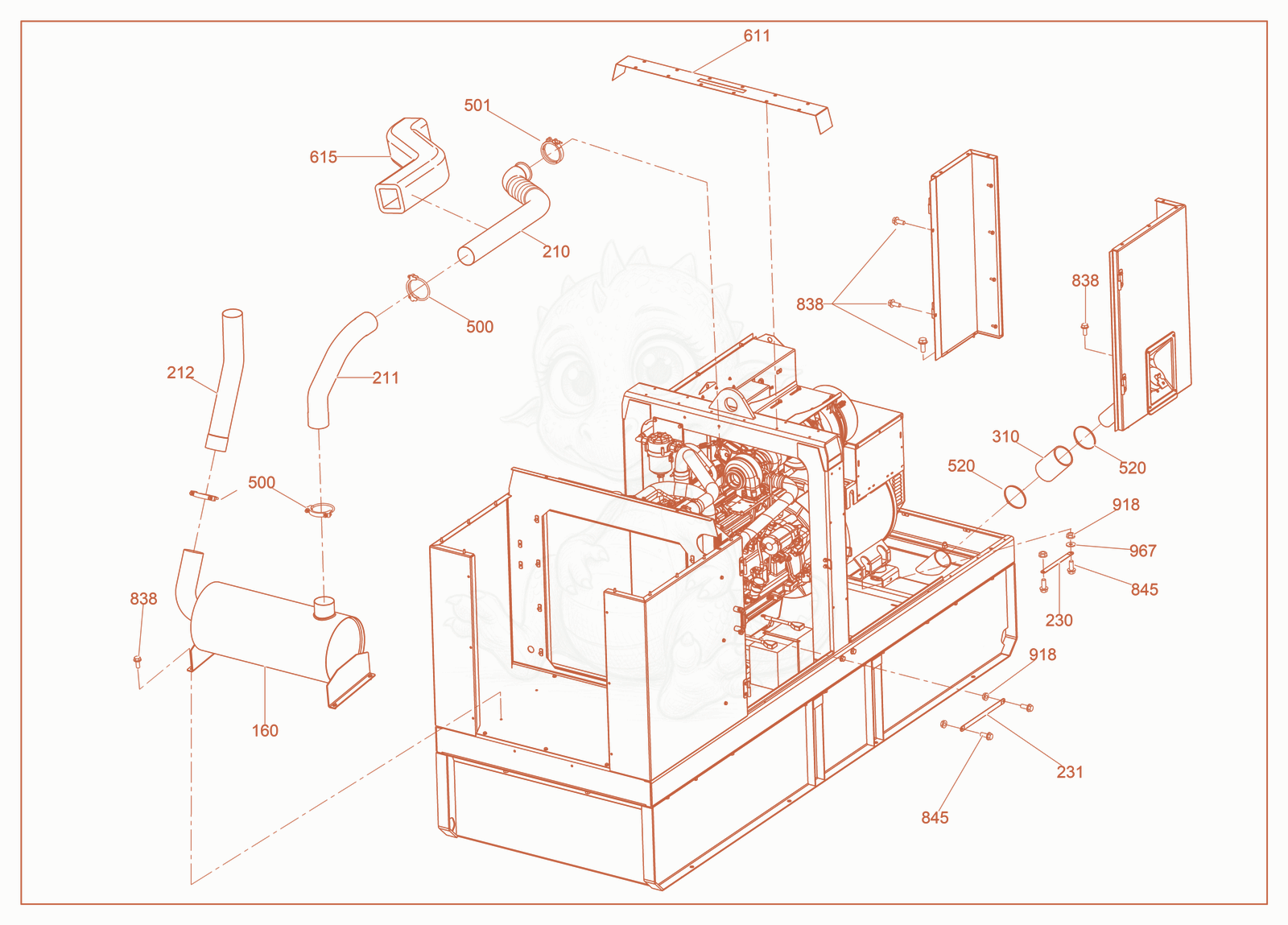

Exploded parts diagram of the Rear Panels/Muffler of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1605000173771
    $2,654.49
    MUFFLER ASSEMBLY,XL - 5000173771×1
  • 2105000180147
    $519.48
    PIPE-EXHAUST,FLEX - 5000180147×1
  • 2115000180146
    $165.41
    PIPE-EXHAUST,BULKHEAD - 5000180146×1
  • 2125000173774
    $241.95
    PIPE-EXHAUST - 5000173774×1
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×1
  • 2315000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 3105000171496
    $69.22
    HOSE-FUEL FILL,4 ID-165MM LG - 5000171496×1
  • 5005000155304
    $7.60
    CLAMP 4 EXHAUST - 5000155304×3
  • 5015000154385
    $24.53
    CLAMP 4 V-BAND - 5000154385×1
  • 5205000154346
    $4.38
    CLAMP-WORM DRIVE 4.06 -5 - 5000154346×2
  • 6115000171115
    $47.38
    GASKET-ROOF - 5000171115×1
  • 6155000174538
    $829.87
    INSULATOR-EXHAUST BLANKET,XL - 5000174538×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×11
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×4
  • 9675000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
