G150 MOBILE GENERATOR,STANDARD

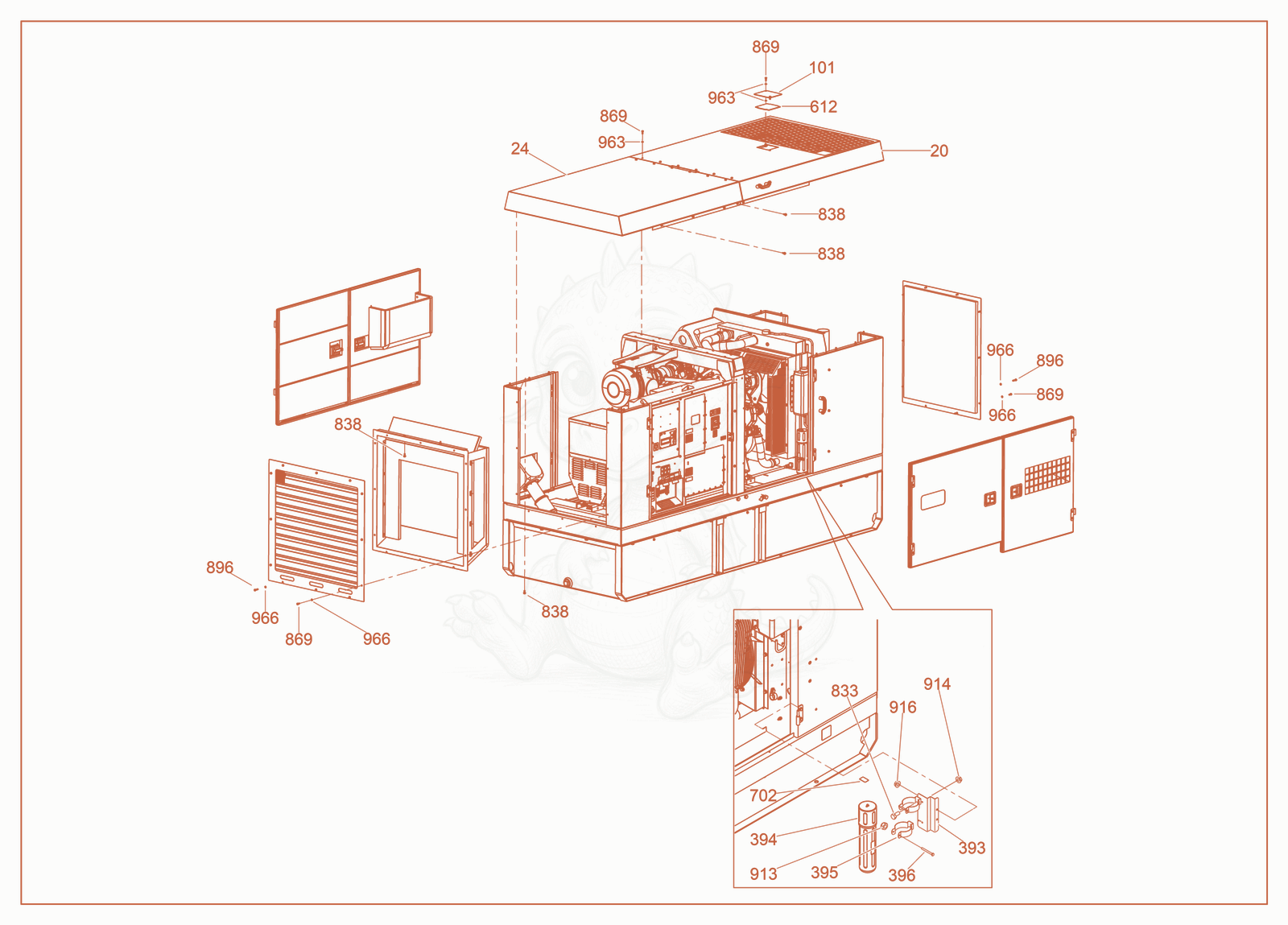

G150 Sheet Metal Assembly Diagram

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000171097
    $1,744.50
    PANEL-ROOF,FRT WLDMT,XLG P-5000177670 - 5000171097×1
  • 245000171098
    $1,410.62
    PANEL-ROOF,REAR WLDMT,XLG - 5000171098×1
  • 1015000179153
    $73.81
    PANEL-RADIATOR COVER, P-5000177670 - 5000179153×1
  • 3935000173374
    $19.06
    BRACKET-HOLDER P-5000176420 - 5000173374×1
  • 3945200000929
    $21.62
    HOLDER-MANUAL, TUBE - 5200000929×1
  • 3955200000960
    $4.96
    CLAMP-HANGER, 2-7/8 - 5200000960×2
  • 3965200000928
    $0.30
    SCREW M6 X 60 HX.HD. - 5200000928×2
  • 6125000179156
    $14.12
    GASKET-RADIATOR COVER - 5000179156×1
  • 7025000176179
    $78.98
    LABEL-SHEET,SAFETY,GEN - 5000176179×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×26
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×31
  • 8965000173783
    $0.37
    SCREW M8 X 35 HX HD,A2 304 - 5000173783×5
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×16
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×22
