G150 Generator Hertz,Cold Weather

G150 Generator/Engine Diagram

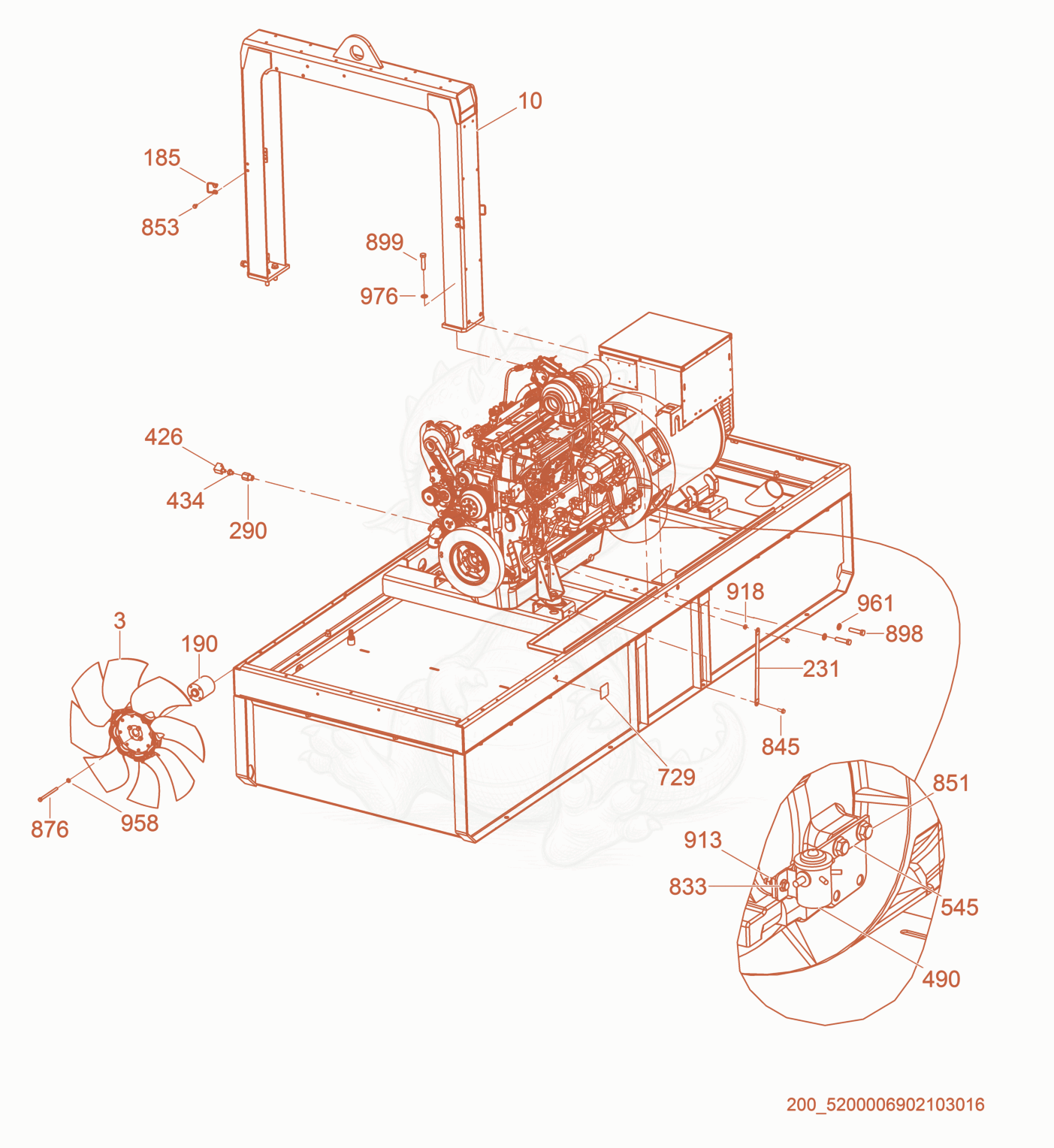

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000174542
    $259.55
    FAN-27.3 SICKLE,G180 - 5000174542×1
  • 105000171081
    $3,887.87
    FRAME-LIFT STRCTR,WLD,XLG P-5000176420 - 5000171081×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 1905000171114
    $136.35
    SPACER-FAN,105MM - 5000171114×1
  • 2315000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 2905000153962
    $40.66
    FITTING M22 X 1/2 NPT - 5000153962×1
  • 4265000154039
    $2.21
    FITTING 1/4 X 90 STREET ELL - 5000154039×1
  • 4345000154038
    $2.14
    FITTING-REDUCER 1/2 X 1/4 - 5000154038×1
  • 4905000153226
    $76.73
    RELAY-65 AMP,12 VOLT - 5000153226×1
  • 5455000156333
    $47.58
    BRACKET-STARTER,SOLENOID P- 5000112007 - 5000156333×1
  • 7295000173396
    $19.23
    LABEL-GRAY - 5000173396×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×2
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×2
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 8765000171513
    $5.05
    SCREW M10 X 140 HX HD,GR 10.9 - 5000171513×4
  • 8985000011378
    $4.98
    SCREW M16 X 70 HX.HD. - 5000011378×4
  • 8995000011517
    $4.94
    SCREW M16 X 60 HX.HD. - 5000011517×4
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×1
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×4
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×4
  • 9765000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×4
