G150 Generator,Standard,Hertz,T4i

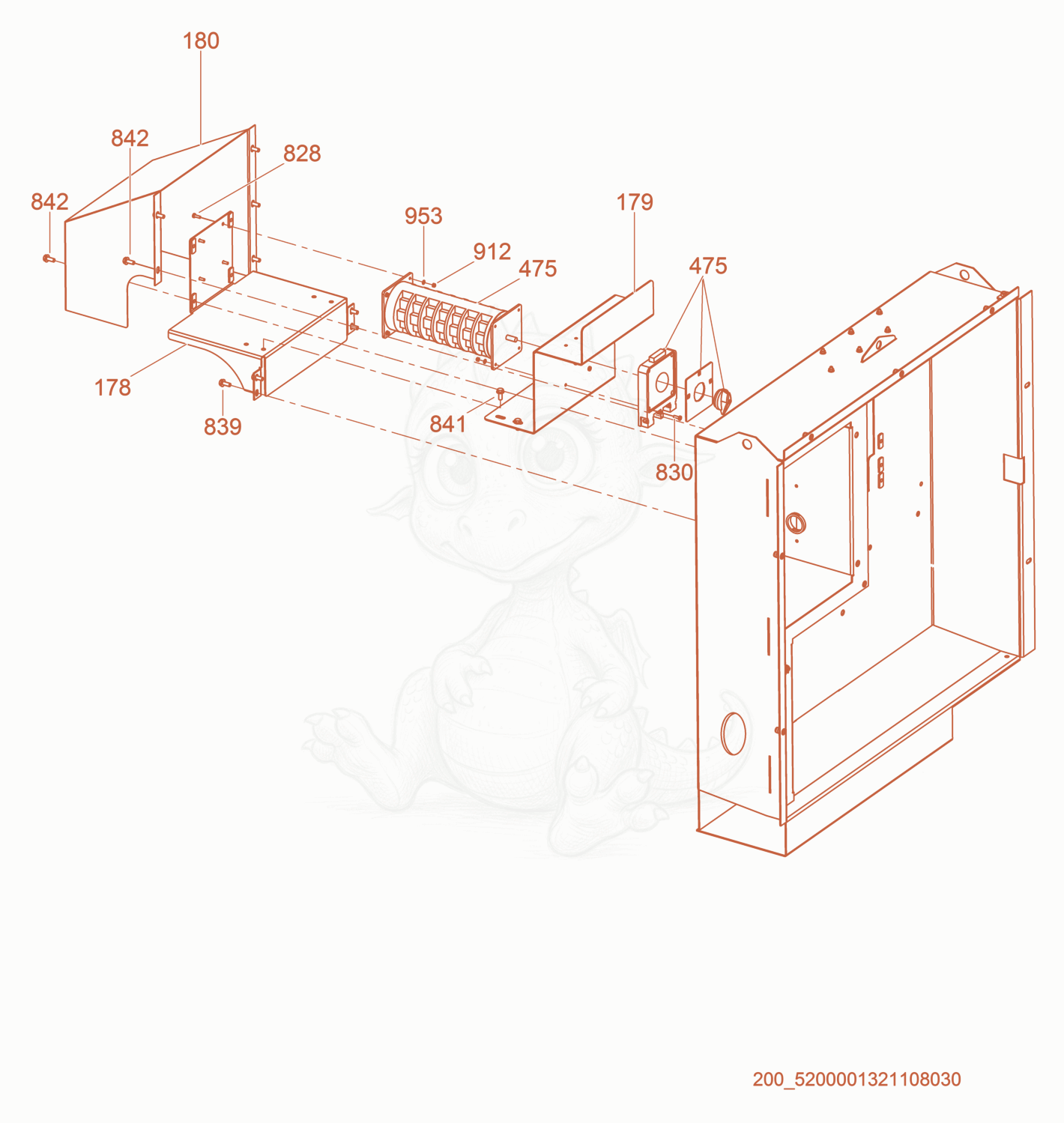

G150 Voltage Selector Switch Box Diagram

Exploded parts diagram of the Voltage Selector Switch Box of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1785000171534
    $228.55
    BRACKET-SELECTOR SWITCH WLDMNT - 5000171534×1
  • 1795000171536
    $115.92
    BRACKET-SELECTOR SWITCH MNTG - 5000171536×1
  • 1805000171535
    $212.07
    Cover - 5000171535×1
  • 4755000153061
    $3,737.69
    SWITCH-PHASE,315 AMP - 5000153061×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×8
  • 8305000154518
    $0.14
    SCREW M5X35-4.8-H PAN HD ZP - 5000154518×2
  • 8395000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×4
  • 8415000118077
    $0.47
    SCREW M8 X 30 BUTTON SOC HD. - 5000118077×4
  • 8425000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×13
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
