G160-GENERATOR,SKID BASE

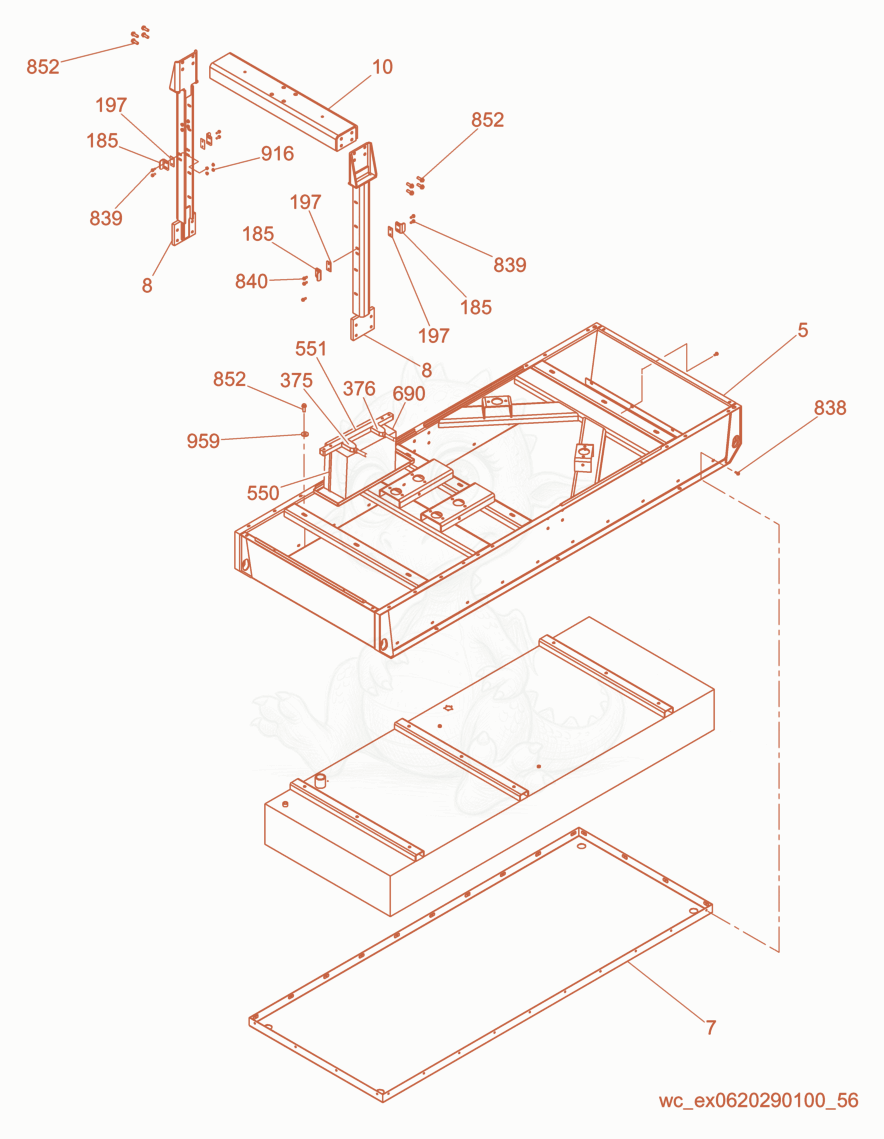

G160 Skid Assembly Diagram

Exploded parts diagram of the Skid Assembly of a Wacker Neuson G160, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000153547
    $3,949.98
    FRAME-WELDMENT SKID,LARGE - 5000153547×1
  • 75000153618
    $487.85
    PANEL-PAN,BOTTOM - 5000153618×1
  • 85000153599
    $848.97
    FRAME-DOOR POST,LRG - 5000153599×2
  • 105000153606
    $682.88
    FRAME-LIFT CHANNEL WELDMNT,LRG - 5000153606×1
  • 1855000153012
    $58.59
    LATCH-DOOR STRIKE - 5000153012×4
  • 1975000153011
    $5.99
    SPACER-DOOR STRIKE - 5000153011×2
  • 3755000170995
    $102.83
    CABLE-BATTERY,POSITIVE,60 - 5000170995×1
  • 3765000173088
    $59.75
    CABLE-BATTERY,NEGATIVE,38 - 5000173088×1
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×1
  • 5515000153763
    $5.19
    CLAMP-BATTERY HOLD DOWN - 5000153763×1
  • 6905000159808
    $312.09
    BATTERY-WET,GR31 - 5000159808×1
  • 8385000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×28
  • 8405000085957
    $1.51
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×2
  • 8525000155247
    $7.76
    SCREW M12X35-10.9 HX SER FLG - 5000155247×17
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 9595000010376
    $0.29
    WASHER A13 FLAT - 5000010376×9
