G20 Generator,50 Hz Prem Export,CE

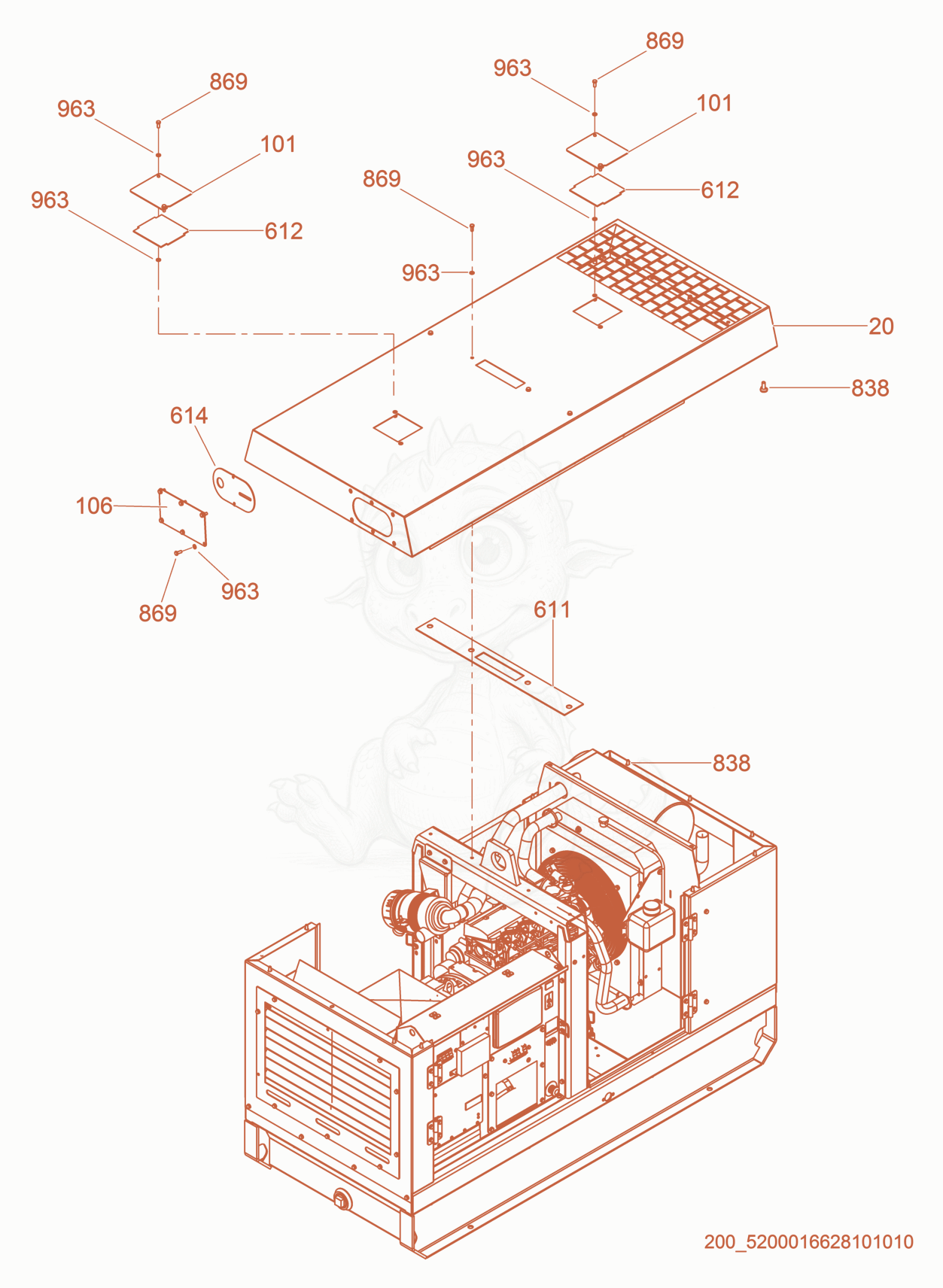

G20 Roof Panel Diagram

Exploded parts diagram of the Roof Panel of a Wacker Neuson G20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100022020
    $1,295.13
    PANEL-ROOF,SML P-5100021100 - 5100022020×1
  • 1015100021156
    $24.18
    Panel-Rad Cover P-5100021100 - 5100021156×2
  • 1065100021913
    $21.69
    PANEL-TELEMATICS ACCESS P-5100021100 - 5100021913×1
  • 6115000158118
    $18.33
    GASKET-LIFT EYE - 5000158118×2
  • 6125000158849
    $1.89
    GASKET-RADIATOR COVER - 5000158849×1
  • 6145100015120
    $3.82
    GASKET- TELEMATICS PORT - 5100015120×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×7
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×12
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×17
