G230 Mobile Generator, Cold Weather, Tier 4 Final, Transport Canada

G230 Battery Diagram

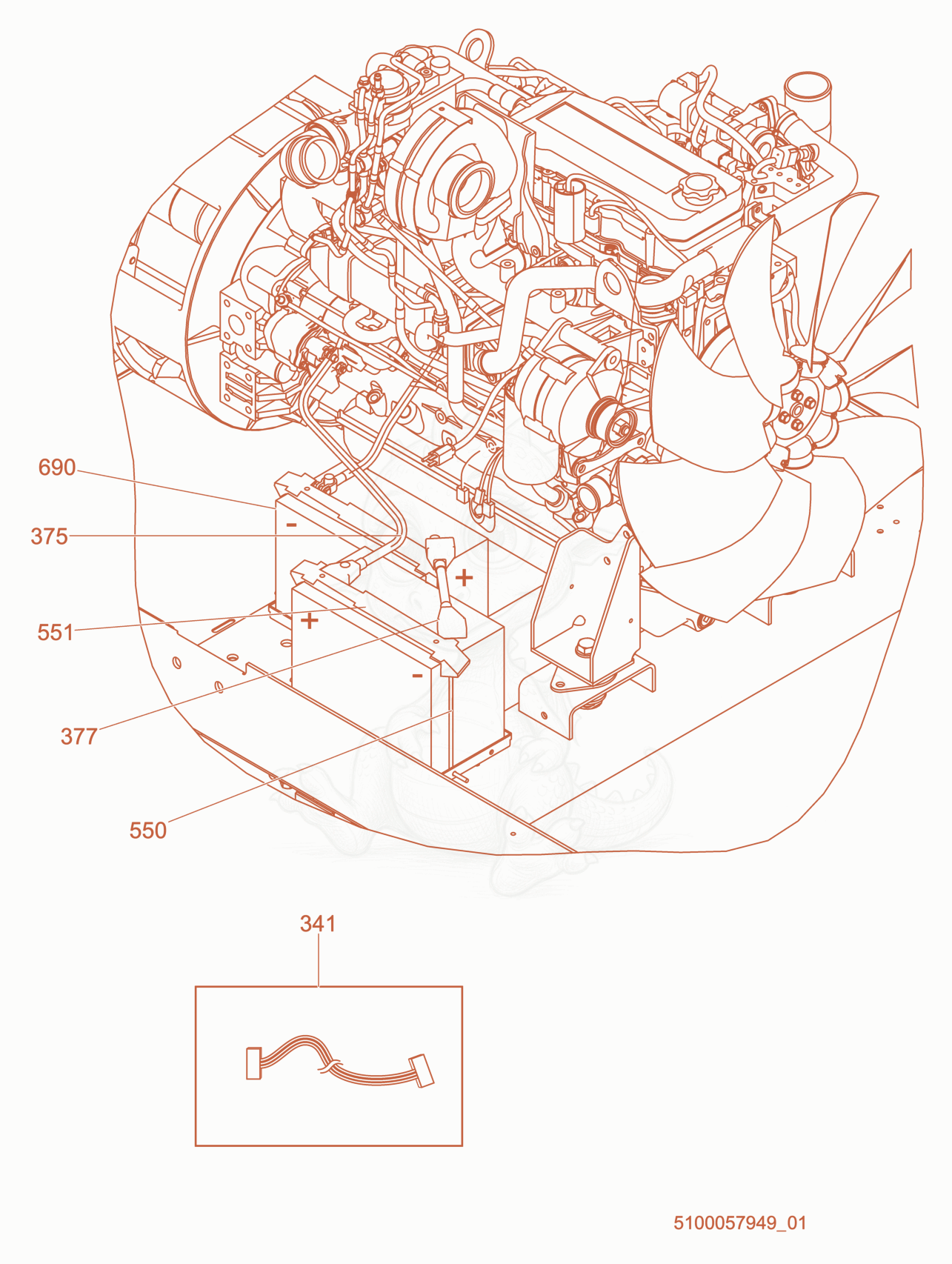

Exploded parts diagram of the Battery of a Wacker Neuson G230, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3415200015862Not stocked
    DC wiring harness×1
  • 3755200016012Not stocked
    Positive battery cable×1
  • 3775000183074
    $36.34
    CABLE-BATTERY POST TO POST - 5000183074×1
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×4
  • 5515100055571
    $12.94
    BATTERY HOLD-DOWN,LONG - 5100055571×2
  • 6905000159808
    $312.09
    BATTERY-WET,GR31 - 5000159808×2
