G230 Generator,Standard,Hertz,T4i

G230 Transformer/Fuse Block/Relay Diagram

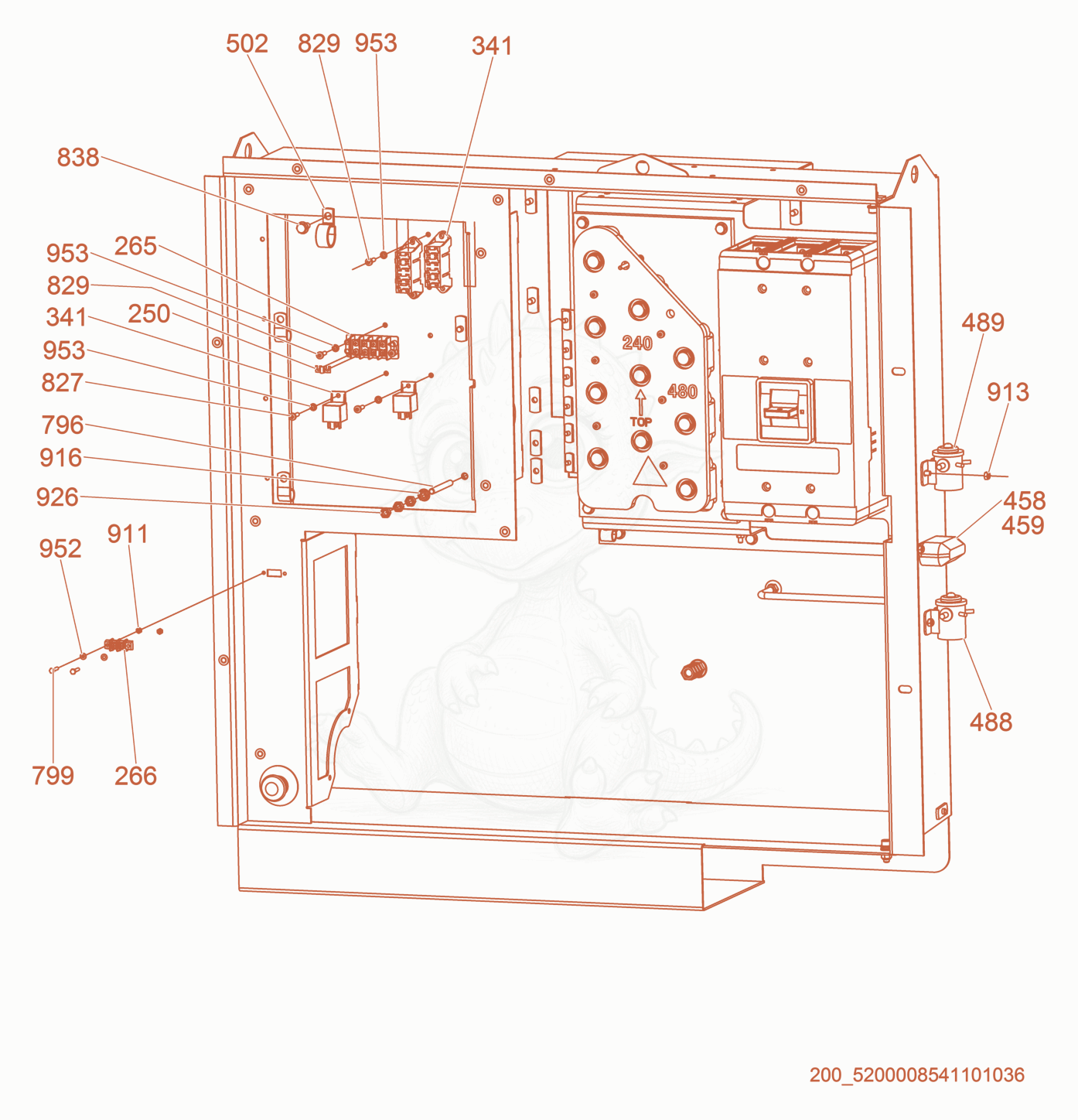

Exploded parts diagram of the Transformer/Fuse Block/Relay of a Wacker Neuson G230, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2505000158843
    $1.73
    TERMINAL-JUMPER - 5000158843×3
  • 2655000158844
    $7.32
    TERMINAL BLOCK 4 POS - 5000158844×1
  • 2665000159130
    $12.94
    BLOCK-TERMINAL,2 POSITION - 5000159130×1
  • 3415200006810Not stocked
    Wiring harness, DC×2
  • 4585000183858
    $25.04
    FUSE HOLDER - 5000183858×1
  • 4595000183859
    $66.32
    FUSE - AMG TYPE, 150 AMP - 5000183859×1
  • 4885000183075
    $102.96
    RELAY-85 AMP,24 VOLT - 5000183075×1
  • 4895000183076
    $166.12
    RELAY-200 AMP,24 VOLT - 5000183076×1
  • 5025000183449
    $1.47
    CLAMP-TUBE CLIP 1 W/OUT VNYL - 5000183449×4
  • 7965000171214
    $3.76
    STUD M8 X 80 FULLY THREADED - 5000171214×1
  • 7995000011486
    $0.19
    SCREW M4 X 20 HX.HD. - 5000011486×2
  • 8275000154515
    $0.03
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×2
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×4
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×3
  • 9115000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×6
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×5
  • 9265000010882
    $0.05
    NUT M8 8,HEX - 5000010882×3
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×5
