G230 Generator,Standard,Hertz,T4i

G230 Lugs/Breakers/Receptacles Diagram

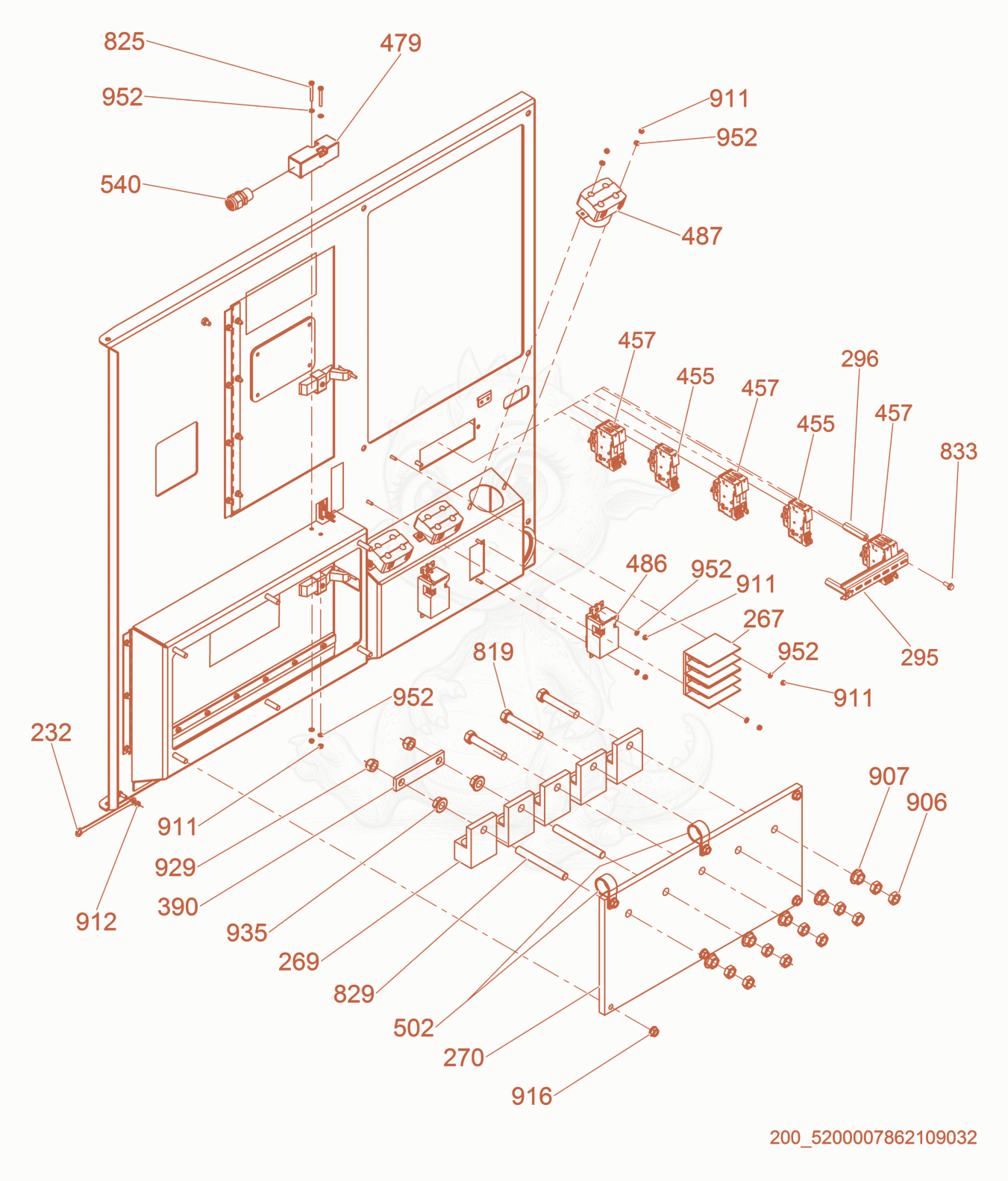

Exploded parts diagram of the Lugs/Breakers/Receptacles of a Wacker Neuson G230, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2325000160587
    $5.43
    WIRE-GROUND - 5000160587×1
  • 2675000160091
    $109.20
    TERMINAL-BLOCK - 5000160091×2
  • 2695000183672
    $93.37
    TERMINAL-LUG,600 MCM - 5000183672×5
  • 2705000183673
    $163.44
    PLATE-GLASTIC,LUG BOX - 5000183673×1
  • 2955200012337Not stocked
    Plate×1
  • 2965200012338Not stocked
    Spacer×2
  • 3905000171523
    $81.66
    CONNECTOR,LO-N - 5000171523×1
  • 4555200023000Not stocked
    Circuit breaker×2
  • 4575200023001Not stocked
    Circuit breaker×3
  • 4795200006634
    $201.53
    SWITCH-LOCKOUT, DOOR - 5200006634×1
  • 4865000089774
    $41.55
    RECEPTACLE-GFI, 20A SP=5000089849 - 5000089774×2
  • 4875000153277
    $69.08
    RECEPTACLE,50 AMP TWIST LOCK - 5000153277×3
  • 5025000183449
    $1.47
    CLAMP-TUBE CLIP 1 W/OUT VNYL - 5000183449×2
  • 5405200006635
    $3.84
    STRAIN RELIEF M20 - 5200006635×1
  • 8195000155256
    $1.74
    SCREW 1/2-13 X 3.00-5 HX HD ZN - 5000155256×3
  • 8255000154514
    $0.07
    SCREW M4X35-4.8-H PAN HD ZP - 5000154514×2
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×4
  • 9065000025626
    $0.12
    NUT .500-13 HX JAM ZN - 5000025626×10
  • 9075000155243
    $1.03
    NUT 1/2-13 HX SER FLG ZP - 5000155243×7
  • 9115000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×10
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×6
  • 9295000025724
    $0.35
    NUT-LOCK 1/2-13,HEX,NYLON - 5000025724×2
  • 9355000025619
    $0.13
    NUT 1/2-13,HEX. - 5000025619×2
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×14
