G25-GENERATOR,SKID BASE

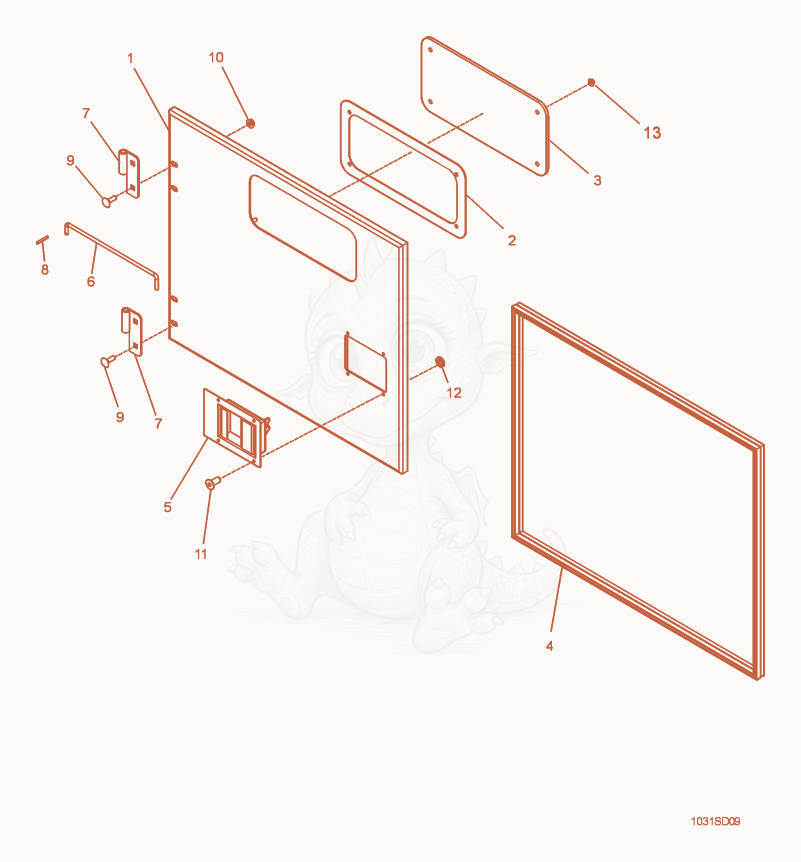

G25 Right Rear Door Diagram

Exploded parts diagram of the Right Rear Door of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000119111Not stocked
    Door×1
  • 25000115249Not stocked
    Gasket×1
  • 35000115197Not stocked
    Door×1
  • 45000116063Not stocked
    Seal×1
  • 55000115199Not stocked
    Handle×1
  • 65000115248Not stocked
    Rod×1
  • 75000115183Not stocked
    Hinge×2
  • 85000115627Not stocked
    Roll pin×1
  • 95000115618Not stocked
    Carriage bolt×4
  • 105000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 115000115632Not stocked
    Rivet×4
  • 125000115633Not stocked
    Plate×4
  • 135000115620Not stocked
    Lock nut×4
