G25 Generator, Cold Weather T4i

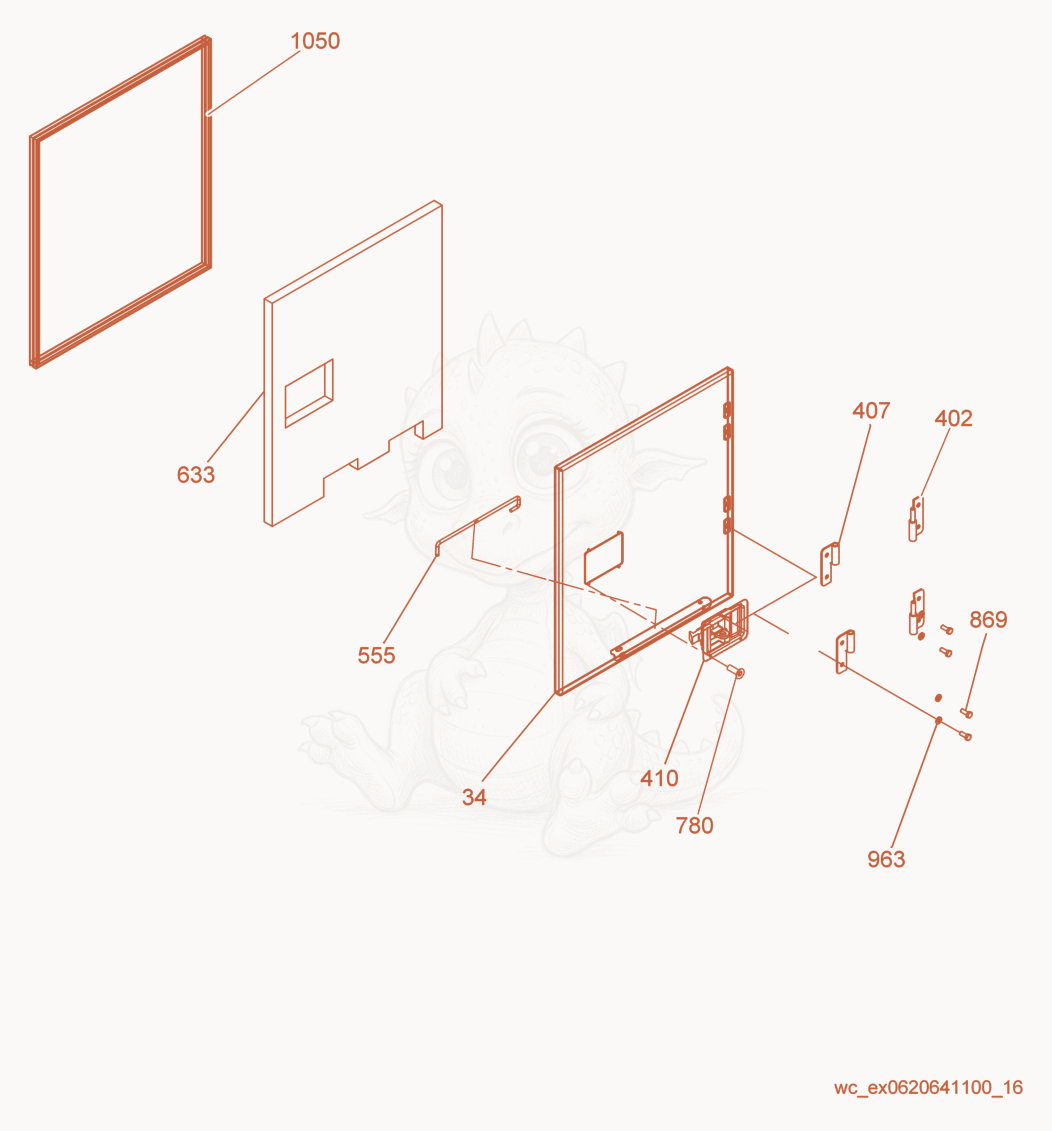

G25 Rear Left Door Diagram

Exploded parts diagram of the Rear Left Door of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 345100021135
    $1,045.34
    DOOR-REAR LEFT,SML, P-5100021100 - 5100021135×1
  • 4025200014957Not stocked
    Hinge pin×2
  • 4075200014958Not stocked
    Hinge×4
  • 4105200015873Not stocked
    Latch×1
  • 5555000153022
    $28.99
    ROD-DOOR PROP - 5000153022×1
  • 6335000164227
    $49.30
    INSULATOR-DOOR,LEFT REAR - 5000164227×1
  • 7805000176346
    $0.14
    RIVET .156 X .415 LG.,SST - 5000176346×2
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
  • 10505000159372
    $149.85
    X-5200012961 SEAL-TRIM EDGE LOCK - 5000159372×1
