G25 Generator, Standard T4

G25 Fuel Hose Diagram

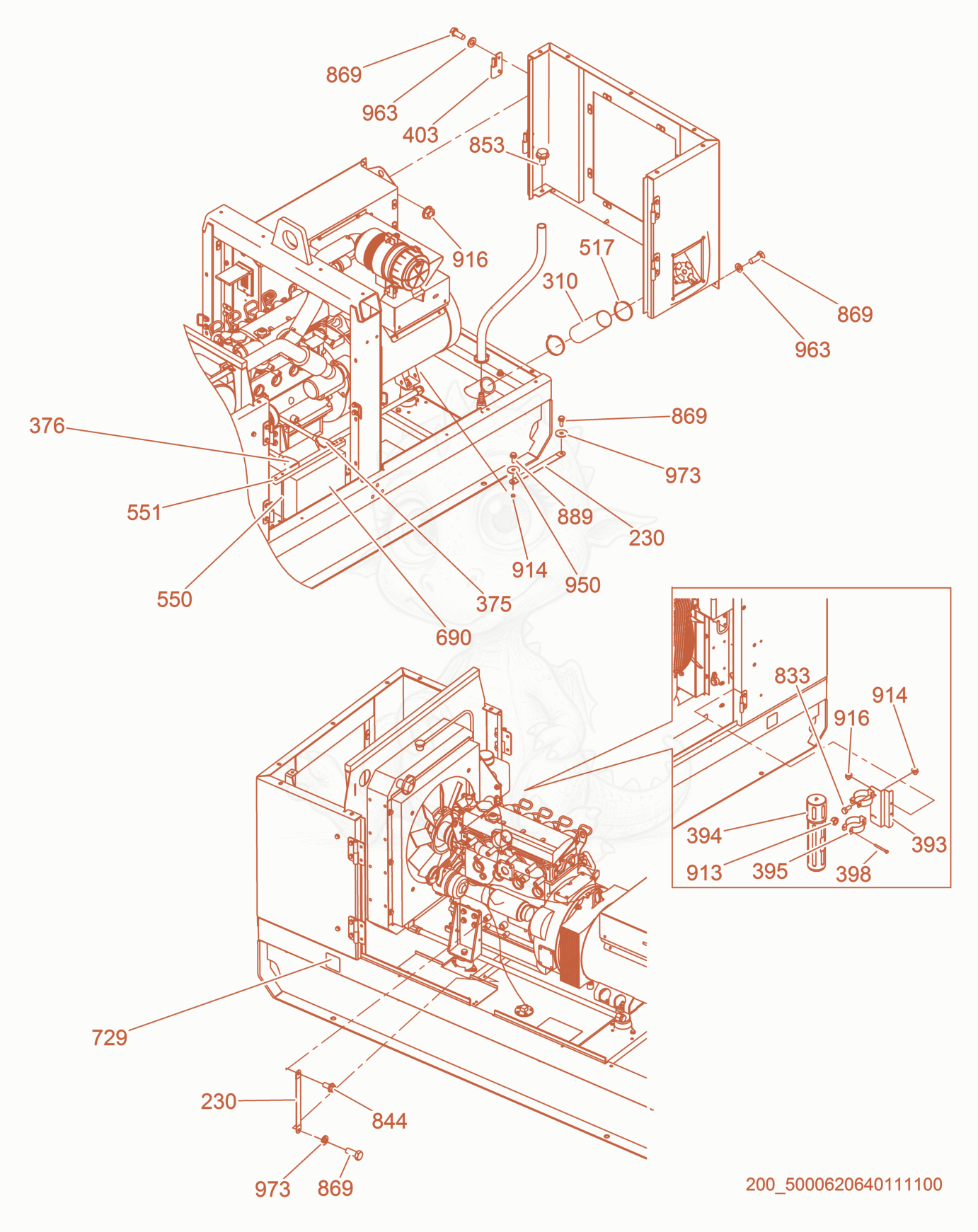

Exploded parts diagram of the Fuel Hose of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×2
  • 3105000159374
    $27.13
    HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
  • 3755000158985
    $28.93
    CABLE-BATTERY,POS.10 W/AUX - 5000158985×1
  • 3765000177656
    $42.26
    CABLE-BATTERY,NEG. 610MM - 5000177656×1
  • 4035000164970
    $24.41
    HINGE-L.H.,PIN LEAF - 5000164970×4
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5515000159046
    $45.69
    BRACKET-BATTERY HOLD DOWN - 5000159046×1
  • 6905000153758
    $202.25
    BATTERY-WET,GR 34 - 5000153758×1
  • 7295000173396
    $19.23
    LABEL-GRAY - 5000173396×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×1
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×3
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×10
  • 8895000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×1
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9505000156269
    $0.12
    WASHER-FLT .058X.281X1.00 ZP - 5000156269×1
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9735000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×2
