G25 Generator, Standard T4

G25 Sheet Metal Assembly Diagram

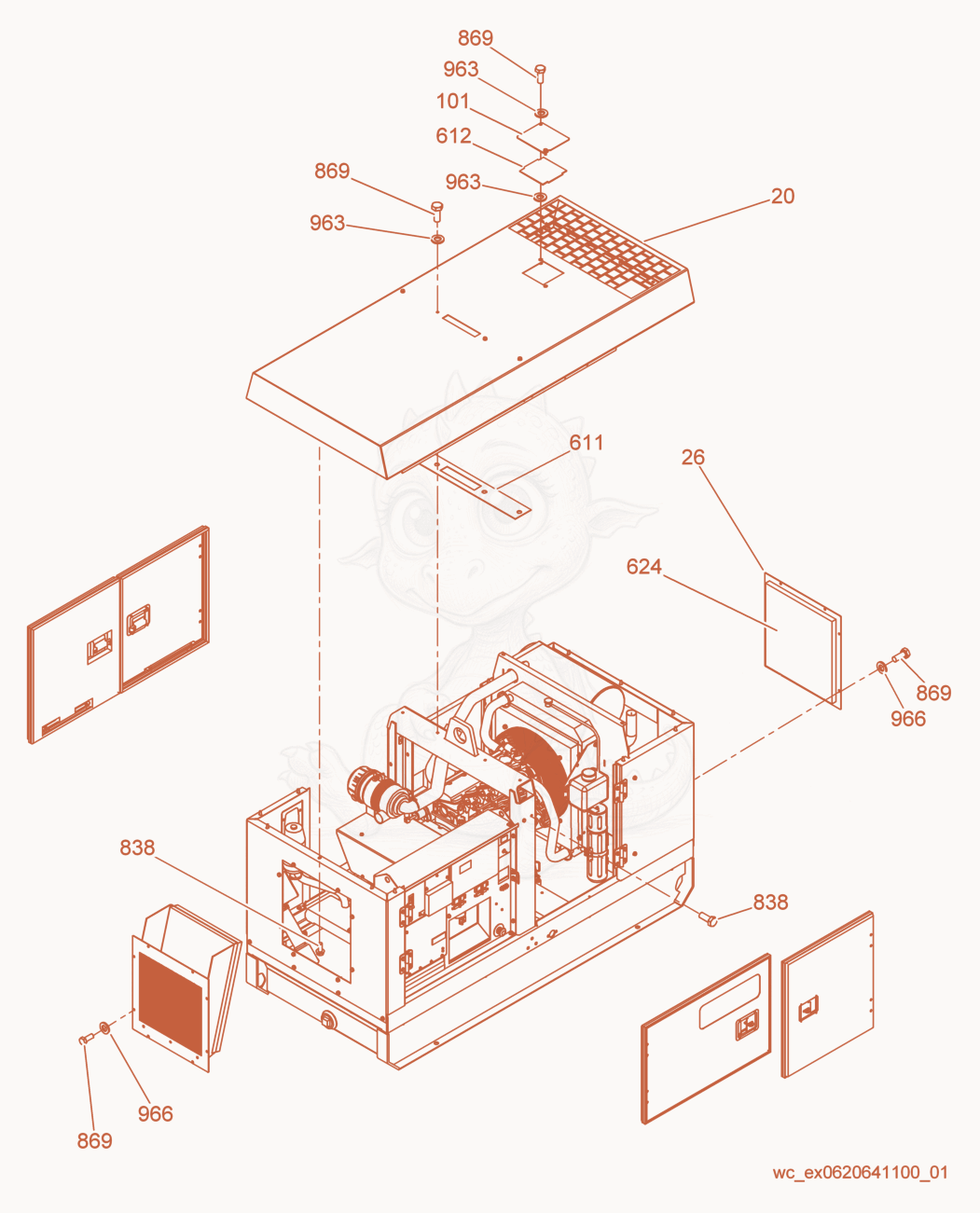

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000182287
    $2,205.96
    PANEL-ROOF,SML - 5000182287×1
  • 265000157240
    $169.00
    PANEL-FRONT ACCESS P-5000176420 - 5000157240×1
  • 1015000157244
    $29.81
    Panel-Rad Cover,Wht AL,P-5000177670 - 5000157244×1
  • 6115000158118
    $18.33
    GASKET-LIFT EYE - 5000158118×1
  • 6125000158849
    $1.89
    GASKET-RADIATOR COVER - 5000158849×1
  • 6245000164218
    $38.12
    INSULATOR-EXH COMP FRT ACCESS - 5000164218×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×17
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×22
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×16
