G25 GENERATOR HERTZ,COLD WEATHER

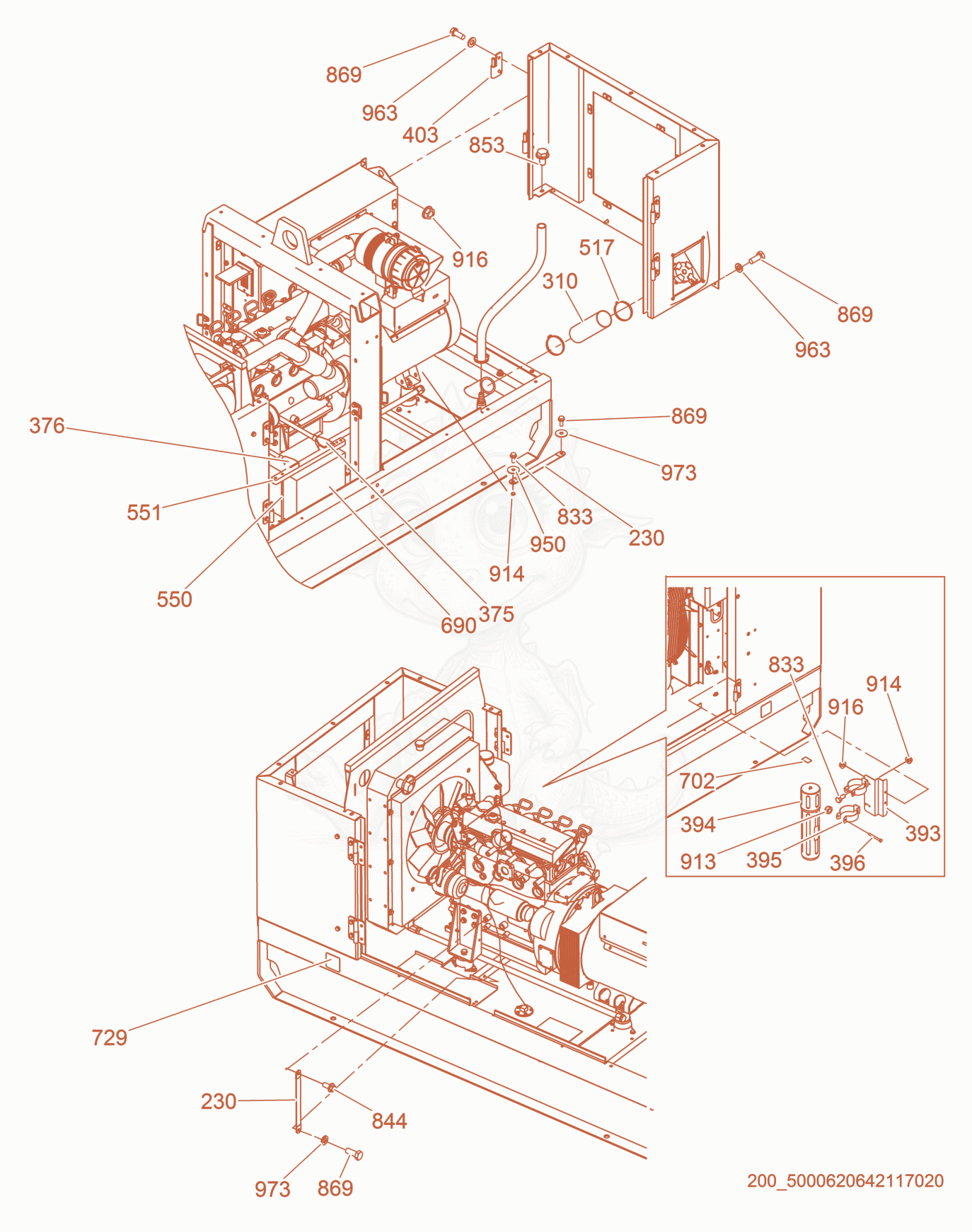

G25 Fuel Hose Diagram
- STRAP-GROUND 10 - 5000152978×2
- HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
- CABLE-BATTERY,POS.10 W/AUX - 5000158985×1
- Cable-battery, neg. 610mm - 5200000956×1
- BRACKET-HOLDER P-5000176420 - 5000173374×1
- HOLDER-MANUAL, TUBE - 5200000929×1
- CLAMP-HANGER, 2-7/8 - 5200000960×2
- SCREW M6 X 60 HX.HD. - 5200000928×2
- HINGE-L.H.,PIN LEAF - 5000164970×4
- CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
- BOLT-L .25-10,BATTERY - 5000154319×2
- BRACKET-BATTERY HOLD DOWN - 5000159046×1
- BATTERY-WET,GR 34 - 5000153758×1
- LABEL-SHEET,SAFETY,GEN - 5000176179×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
- SCREW M10X20-10.9 HX SFLG MZP - 5000154521×1
- SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×3
- SCREW M8X20 HX.HD.,SST - 5000158897×10
- SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×1
- NUT-LOCK M6 HEX. - 5000010368×2
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×3
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×6
- WASHER-FLT .058X.281X1.00 ZP - 5000156269×1
- WASHER M8 FLAT,SST - 5000158899×8
- WASHER-LOCK B8 - 5000012397×2
