G25 Generator, Extended Run T4F

G25 Option-Extended Run Tank Diagram

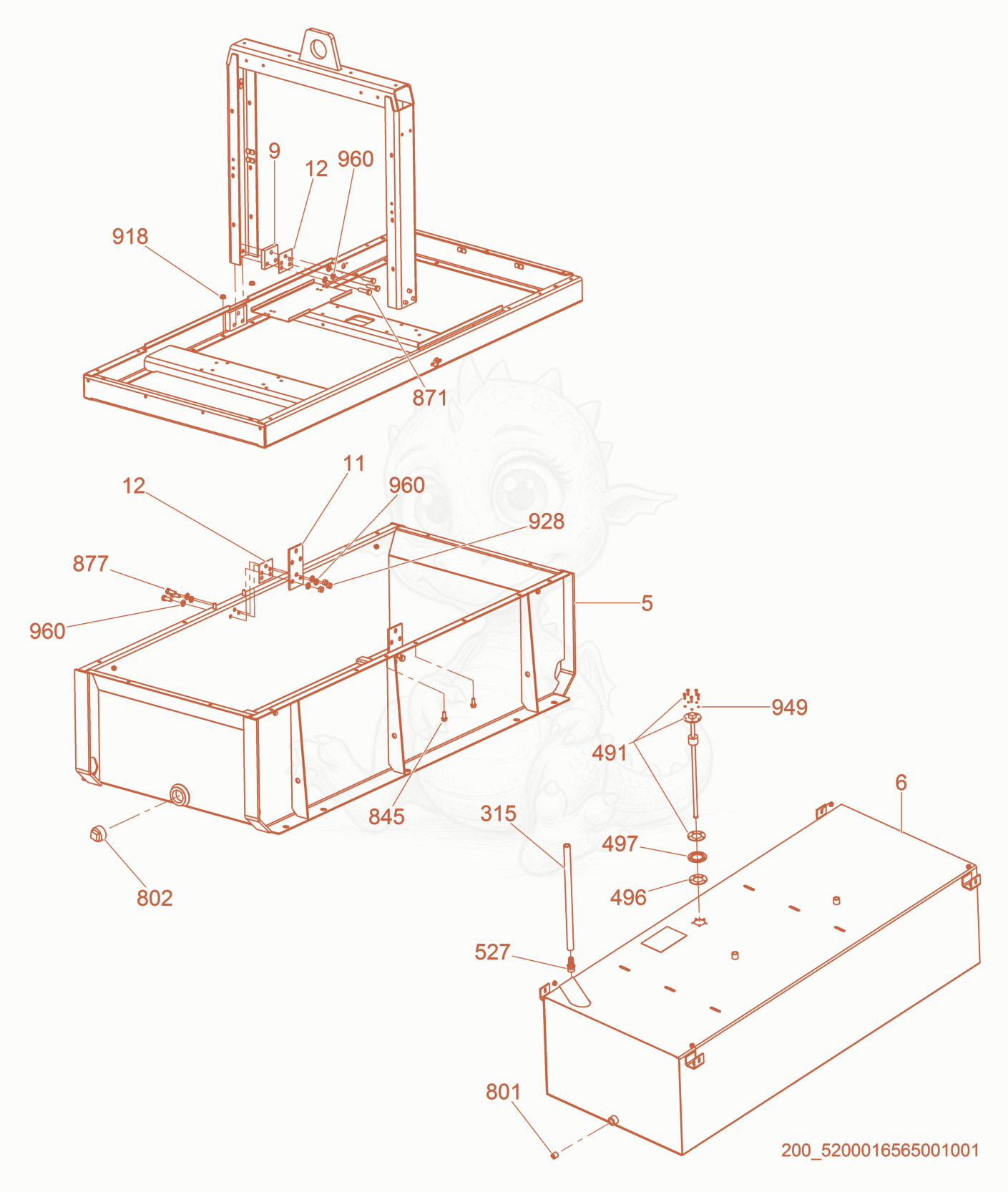

Exploded parts diagram of the Option-Extended Run Tank of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100022595
    $2,817.95
    FRAME-SKID,LWR-72HR,SML P-5000112007 - 5100022595×1
  • 65000165448
    $1,790.89
    TANK-FUEL,135 GAL P-5000112007 - 5000165448×1
  • 95000172769
    $63.03
    BLOCK-LIFT ST,SHIM 72HR - 5000172769×2
  • 115000172315
    $56.21
    PLATE-LIFT SUPPORT,72HR P-500017642 - 5000172315×2
  • 125000172770
    $36.98
    PLATE-SHIM,SMALL ERT P-5000176420 - 5000172770×4
  • 3155000164384
    $8.16
    HOSE-FUEL 5/8 X 470MM - 5000164384×1
  • 4915200001007
    $178.98
    Sensor-Fuel,450mm w/connector - 5200001007×1
  • 4965000158908
    $4.39
    GASKET-FUEL SENDER - 5000158908×1
  • 4975000183623
    $99.29
    SPACER-FUEL SENDER P-5000176420 - 5000183623×1
  • 5275000155285
    $38.76
    FITTING-FUEL VENT - 5000155285×1
  • 8015000153237
    $1.99
    PLUG-1/2 HEX SOCKET - 5000153237×1
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×5
  • 8715000172831
    $2.23
    SCREW M12X45X1.75,HX.HD.,10.9 - 5000172831×6
  • 8775000020378
    $0.58
    SCREW M12 X 30-10.9,HX HD - 5000020378×6
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×5
  • 9285000177630
    $1.31
    NUT M12,CLASS 10,MECH.ZN - 5000177630×6
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9605000010620
    $0.26
    WASHER B13 FLAT - 5000010620×18
  • 11515200015994Not stocked
    Label-lift hook×2
