G25 Generator, URI HVAC T4F

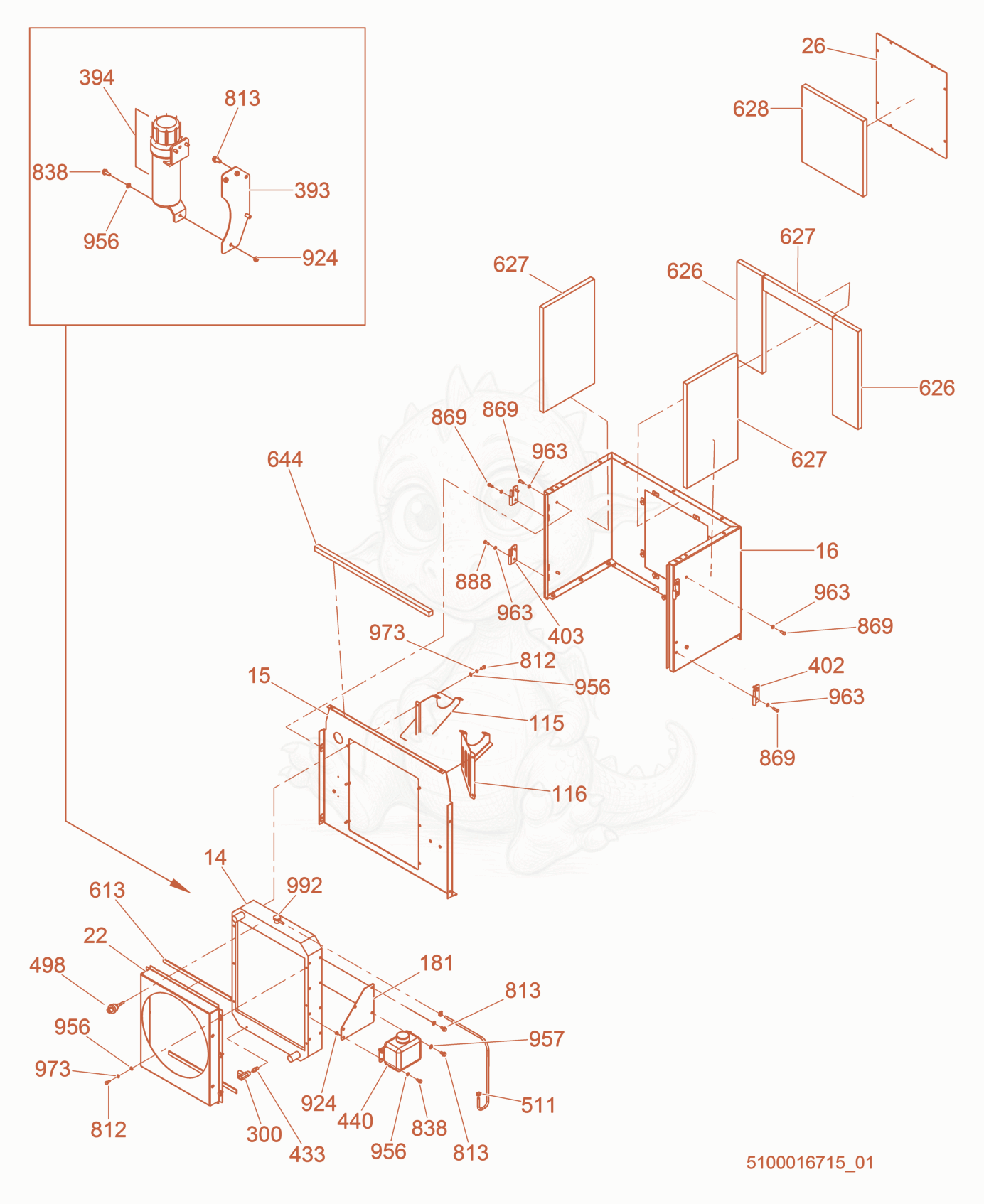

G25 Front Enclosure/Radiator Diagram

Exploded parts diagram of the Front Enclosure/Radiator of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 145100025451
    $698.73
    RADIATOR-ASSY, G25/LTW - 5100025451×1
  • 155200009382
    $716.02
    Panel-Bulkhead Wdmt,Sml T4 P-5000176420 - 5200009382×1
  • 165200022813Not stocked
    Panel×1
  • 225200009384
    $136.09
    Panel-Fan Shroud,Small T4 P-5000176420 - 5200009384×1
  • 265200022816Not stocked
    Access cover×1
  • 1155000159141
    $258.78
    BRACKET-MUFFLER,254MM P-5000176420 - 5000159141×1
  • 1165000162883
    $32.33
    BRACKET-OVERFLOW BOTTLE P-5000176420 - 5000162883×1
  • 1815000162883
    $32.33
    BRACKET-OVERFLOW BOTTLE P-5000176420 - 5000162883×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 3935200017604Not stocked
    Bracket×1
  • 3945200008089
    $15.03
    Holder-Manual,3.25 w/Molded Feet - 5200008089×1
  • 4025200014957Not stocked
    Hinge pin×2
  • 4035200014959Not stocked
    Hinge pin×2
  • 4335000155395
    $6.58
    FITTING-1/4 NPT X 1/2 NPT - 5000155395×1
  • 4405000155240
    $44.21
    BOTTLE-OVERFLOW,2QT - 5000155240×1
  • 4985000159429
    $195.06
    SENSOR-COOLANT LEVEL - 5000159429×1
  • 5115100036161
    $1.10
    CLAMP-THREADED,8-12MM,SILCONE HOSE - 5100036161×2
  • 6245000164218
    $38.12
    INSULATOR-EXH COMP FRT ACCESS - 5000164218×1
  • 6265000164220
    $16.21
    INSULATOR-EXH COMP,SIDE FRONT - 5000164220×2
  • 6275000164221
    $21.02
    INSULATOR-EXH COMP,SIDE - 5000164221×2
  • 6285000164222
    $9.13
    INSULATOR-EXH COMP ABOVE DOOR - 5000164222×1
  • 6445000178333
    $13.53
    INSULATOR-BULKHEAD,SML - 5000178333×1
  • 8125000155391
    $0.26
    SCREW 5/16-18X.750 HX HD,ZP - 5000155391×12
  • 8135000155392
    $0.35
    SCREW 3/8-16X.750 HXSER FLG,ZP - 5000155392×4
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×5
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×8
  • 8885000161194
    $0.29
    SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×2
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×17
  • 9575000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×2
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9735000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×12
