G25 Generator, URI HVAC T4F

G25 Door-Cam Lock Diagram

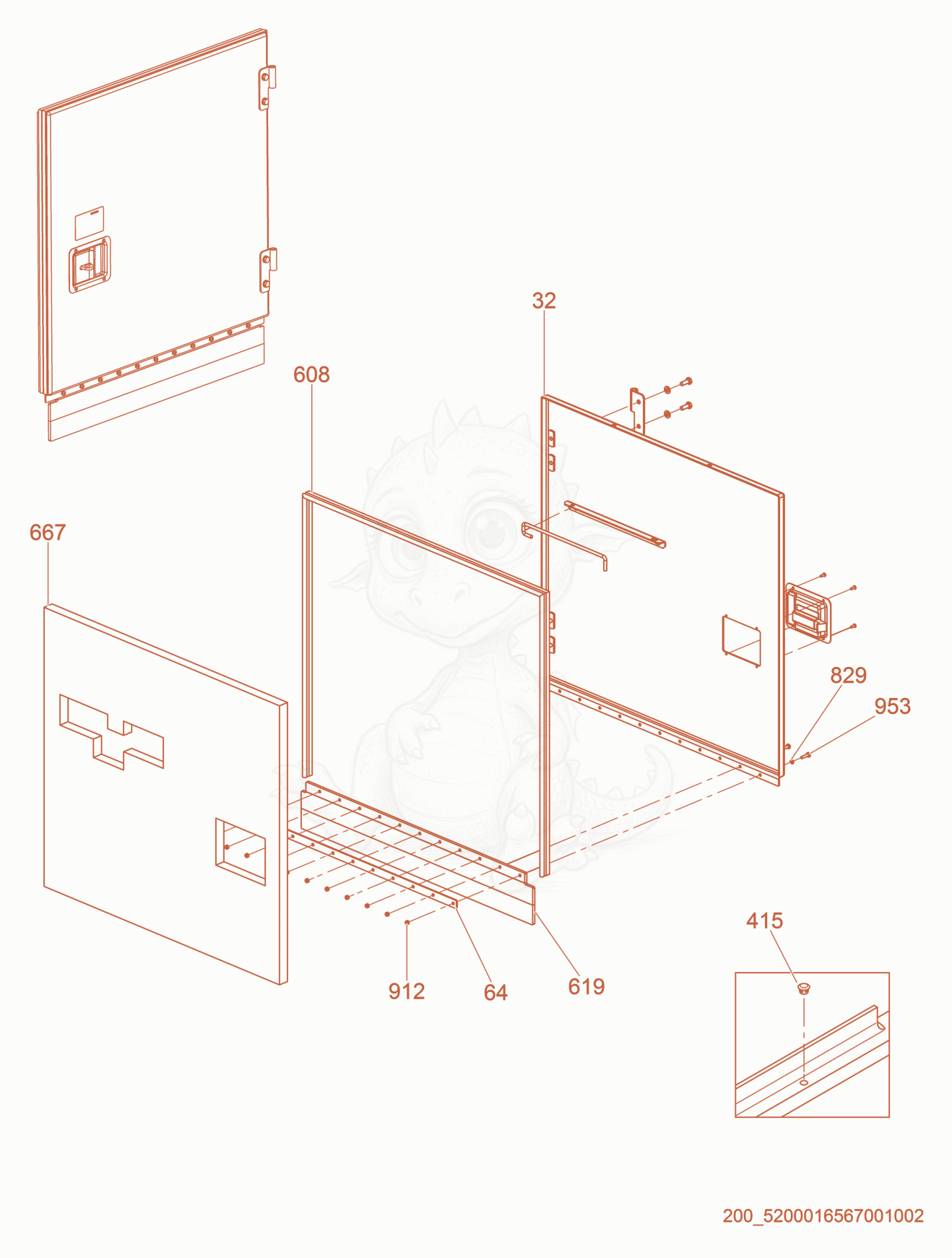

Exploded parts diagram of the Door-Cam Lock of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 325200022822Not stocked
    Door×1
  • 645000160901
    $132.89
    PLATE-RETAINER - 5000160901×1
  • 4155000179122
    $0.09
    PLUG-SAE 3/8 ,POLYETHYLENE - 5000179122×1
  • 6085200012961Not stocked
    Seal Kit×1
  • 6195000160902
    $85.26
    GUARD-CAM LOCK - 5000160902×1
  • 6675000160941
    $120.89
    INSULATOR-DOOR/CAM LOCK BOX - 5000160941×1
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
