G25 Generator, URI HVAC T4F

G25 Right Front Door Diagram

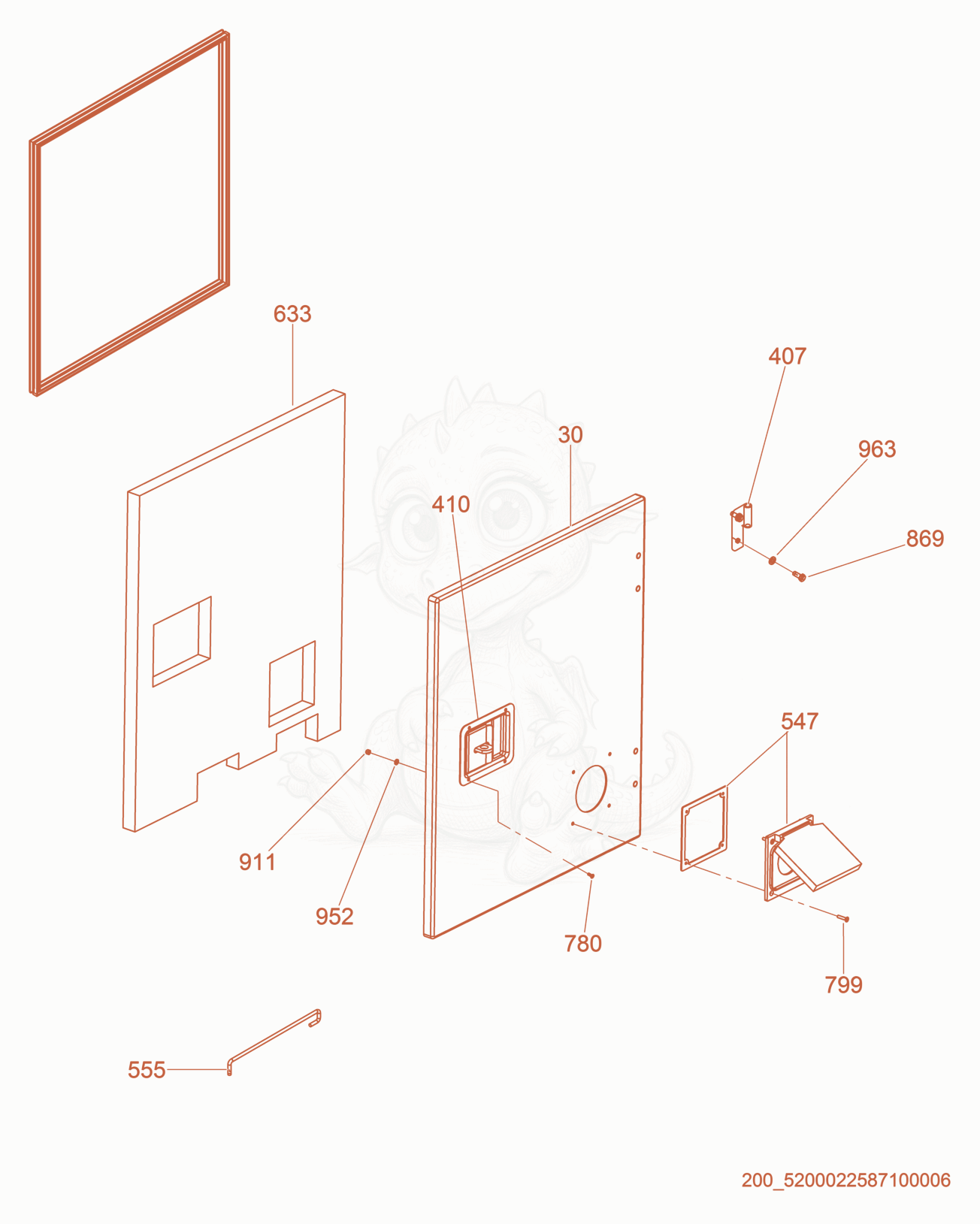

Exploded parts diagram of the Right Front Door of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305200022818Not stocked
    Right front door×1
  • 4075200014958Not stocked
    Hinge×2
  • 4105200015873Not stocked
    Latch×1
  • 5475300000035Not stocked
    Cover cpl.×1
  • 5555000153022
    $28.99
    ROD-DOOR PROP - 5000153022×1
  • 6335200022528Not stocked
    Insulator-door, right×1
  • 7805000176346
    $0.14
    RIVET .156 X .415 LG.,SST - 5000176346×4
  • 7995200001628
    $0.08
    SCREW M4X20,Soc FL HD,Zinc - 5200001628×1
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
  • 10205000159372
    $149.85
    X-5200012961 SEAL-TRIM EDGE LOCK - 5000159372×1
