G320 Generator, Custom T4i

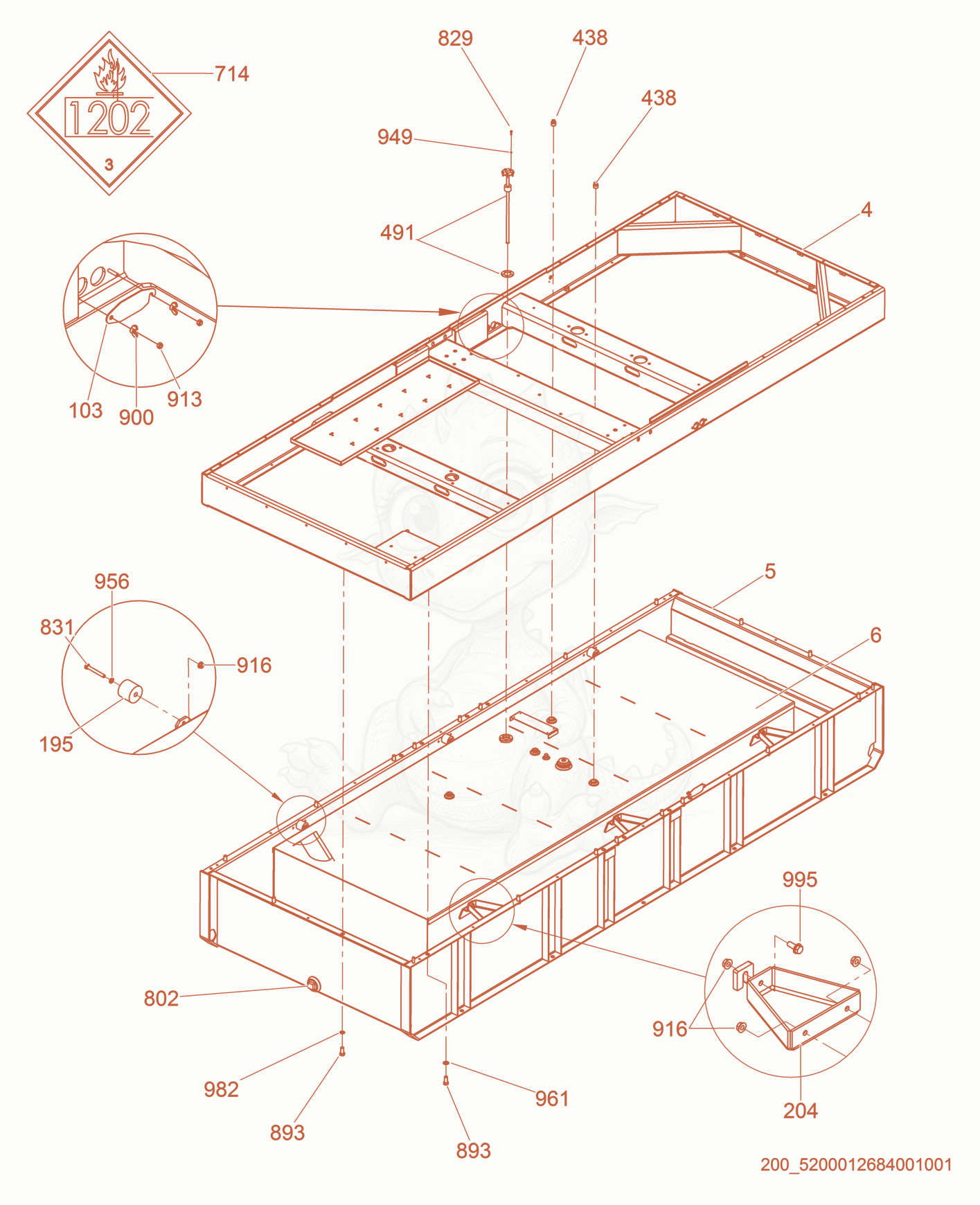

G320 Option-Skid/Fuel Tank cpl. Diagram

Exploded parts diagram of the Option-Skid/Fuel Tank cpl. of a Wacker Neuson G320, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000193186Not stocked
    Upper frame×1
  • 55000193180Not stocked
    Lower frame×1
  • 65200012729Not stocked
    Tank-fuel×1
  • 1035200001895Not stocked
    Cover×1
  • 1955000158123
    $17.14
    SPACER-43MM - 5000158123×3
  • 2045200001882Not stocked
    Support bracket×3
  • 4385200005514
    $34.75
    FITTING-3/4 NPT PLUG, BRASS - 5200005514×2
  • 4915200001007
    $178.98
    Sensor-Fuel,450mm w/connector - 5200001007×1
  • 7145200003428
    $38.87
    LABEL-DIESEL PLACARD - 5200003428×4
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×5
  • 8315000011346
    $1.06
    SCREW M8 X 65 HX.HD. - 5000011346×3
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×9
  • 8935000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×20
  • 9005000010895
    $0.58
    NUT-WING M6,STAINLESS STEEL - 5000010895×2
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×12
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×3
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×16
  • 9825000178507
    $0.24
    WASHER-LOCK,A16 EXT.STAR - 5000178507×4
  • 9955200010753Not stocked
    Shim×3
