G3500G

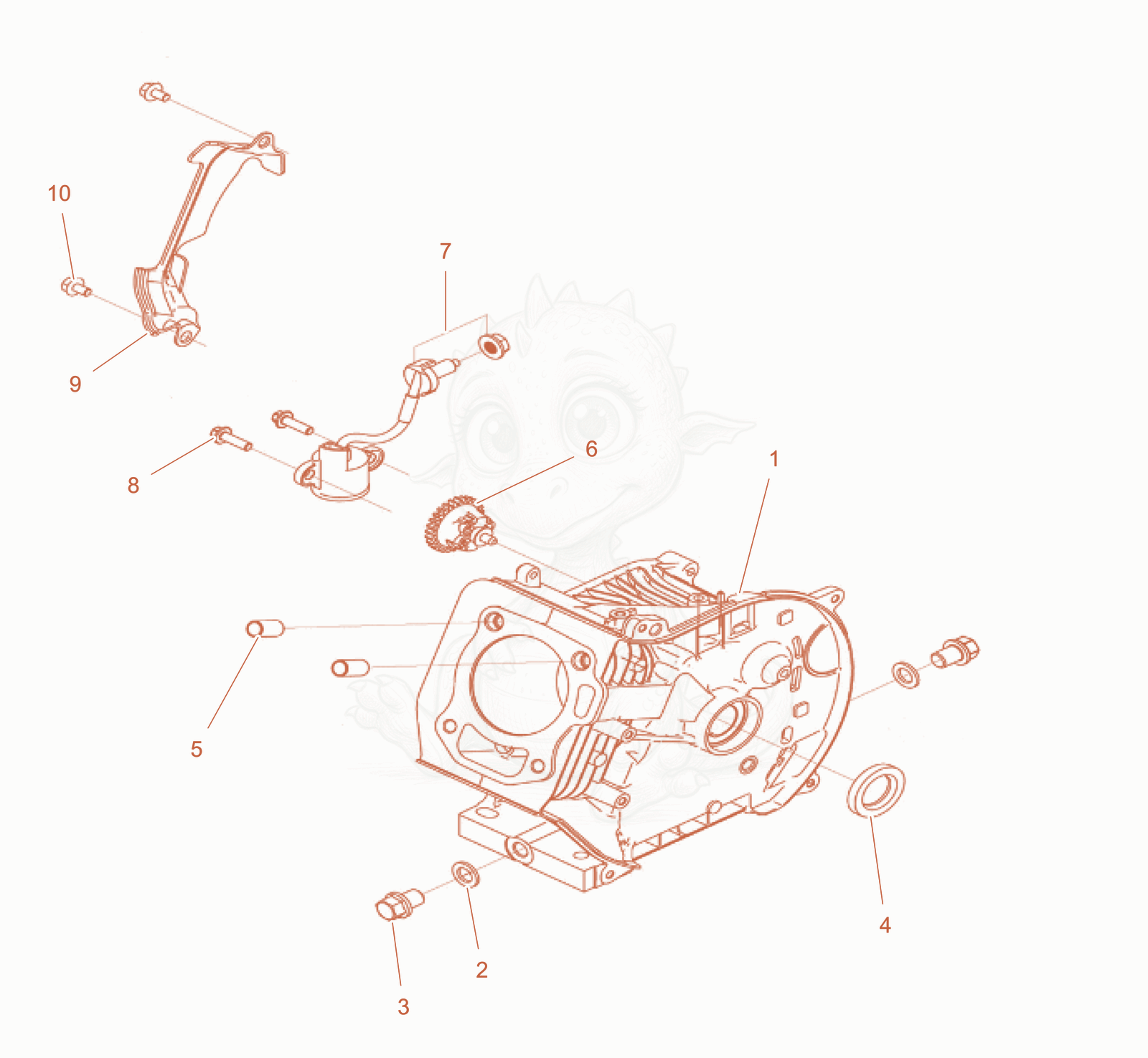

G3500GCN Crankcase cpl. Diagram

Exploded parts diagram of the Crankcase cpl. of a Wacker Neuson G3500GCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100083420Not stocked
    Crankcase body×1
  • 25000409346
    $0.26
    Flat washer - 5000409346×2
  • 35000409345Not stocked
    Sealing plug screw×2
  • 45000408450Not stocked
    Oil seal×1
  • 55100083439Not stocked
    Location pin×2
  • 65000408651Not stocked
    Governor gear×1
  • 75000408455
    $14.86
    Oil level sensor - 5000408455×1
  • 85000408853Not stocked
    Hexagonal head cap screw×2
  • 95100083438Not stocked
    Air deflector×1
  • 105000408913Not stocked
    Hexagonal head cap screw×2
