G40 GENERATOR, 50 Hz Value Export

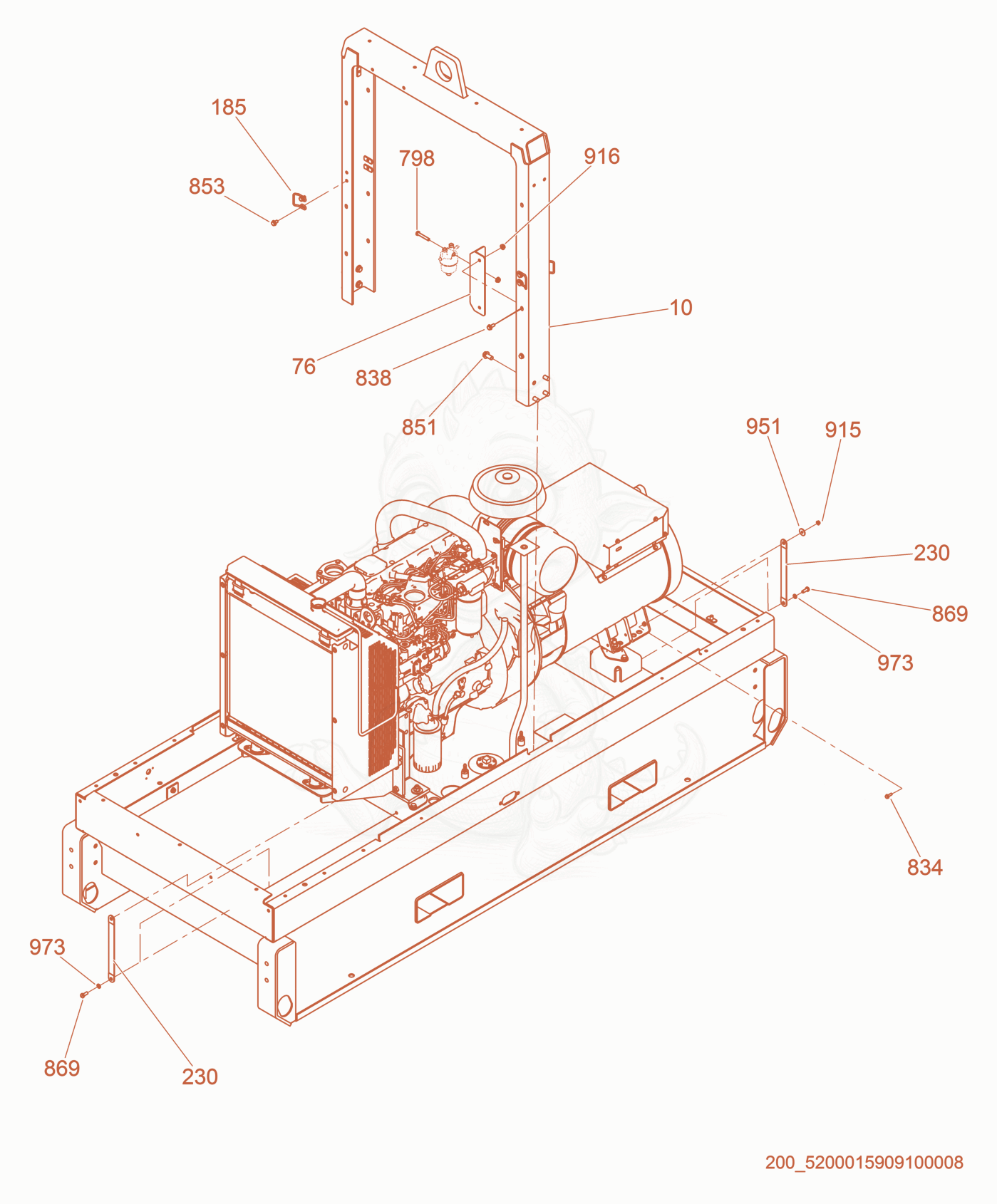

G40 Lifting Device Diagram

Exploded parts diagram of the Lifting Device of a Wacker Neuson G40, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105200001446
    $1,276.56
    FRAME-LIFT STRUC. WLD,MED, P- 5000112007 - 5200001446×1
  • 765200021583Not stocked
    Bracket×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×2
  • 7985200012051Not stocked
    Screw×1
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×8
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×2
  • 9155000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×3
  • 9515000156269
    $0.12
    WASHER-FLT .058X.281X1.00 ZP - 5000156269×1
  • 9735000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×2
