G40 GENERATOR, 50 Hz Value Export

G40 Fuel Pump cpl. Diagram

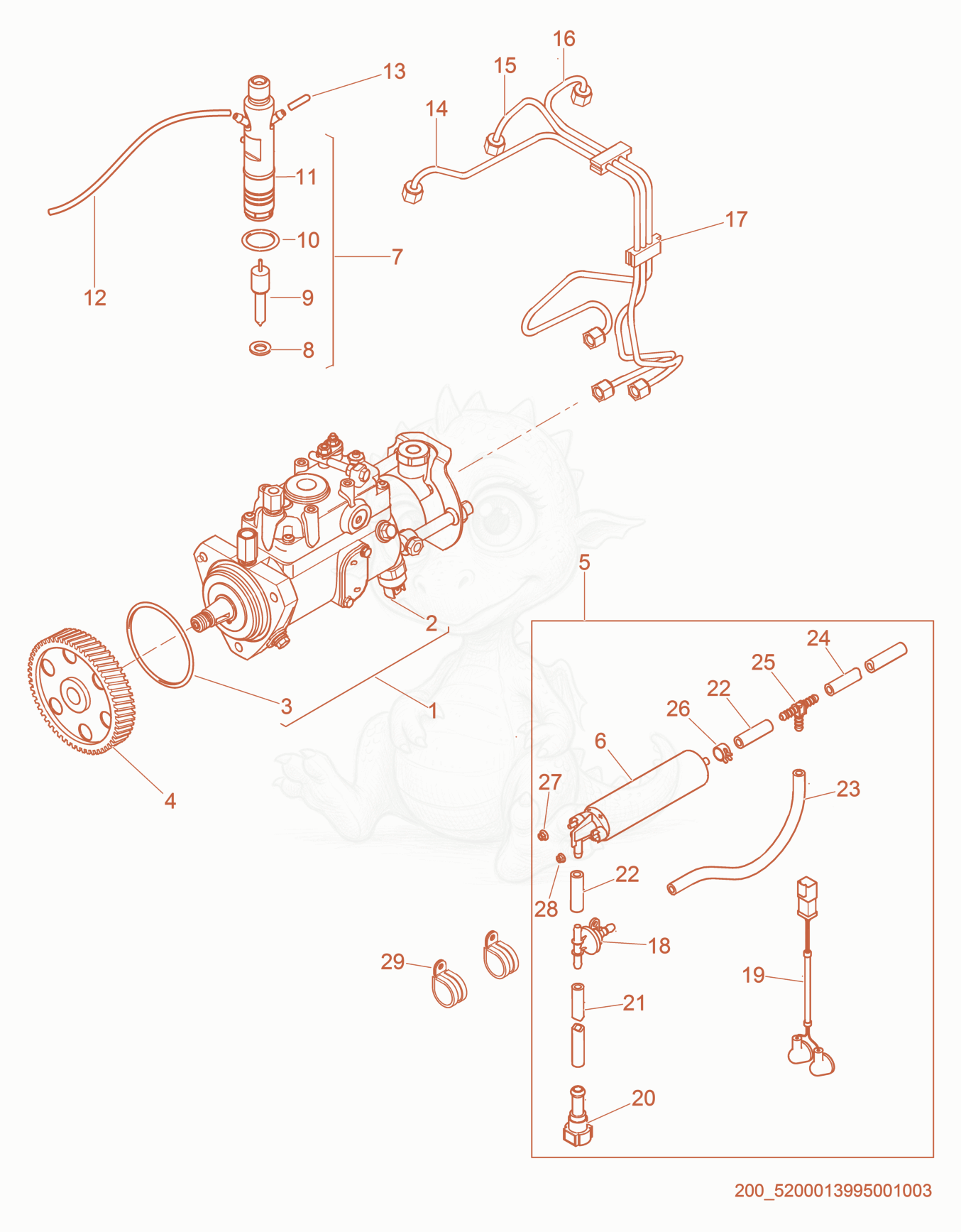

Exploded parts diagram of the Fuel Pump cpl. of a Wacker Neuson G40, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200021125Not stocked
    Injection pump×1
  • 25200021359Not stocked
    Solenoid×1
  • 35200021345Not stocked
    O-Ring×1
  • 45200021126Not stocked
    Gear×1
  • 55200021167Not stocked
    Pump×1
  • 65200021166Not stocked
    Pump×1
  • 75200021160Not stocked
    Injector×3
  • 85200021161Not stocked
    Washer×3
  • 95200021162Not stocked
    Injection nozzle×3
  • 105200021337Not stocked
    Seal×3
  • 125200021146Not stocked
    Hose×2
  • 135200021052Not stocked
    Cap×1
  • 145200021198Not stocked
    Injection pipe×1
  • 155200021199Not stocked
    Injection pipe×1
  • 165200021200Not stocked
    Injection pipe×1
  • 175200021066Not stocked
    Clip×2
  • 185200021266Not stocked
    Relief valve×1
  • 195200021104Not stocked
    Electrical connector×1
  • 205200021072Not stocked
    Connector×1
  • 215200021204Not stocked
    Pipe×1
  • 225200021202Not stocked
    Pipe×2
  • 235200021203Not stocked
    Pipe×1
  • 245200021201Not stocked
    Pipe×1
  • 255200021070Not stocked
    Connector×1
  • 265200021209Not stocked
    Clamp×9
  • 275200021176Not stocked
    Nut×1
  • 285200021175Not stocked
    Nut×1
  • 295200021210Not stocked
    Clamp×2
