G5.6A-GENERATOR,CAN

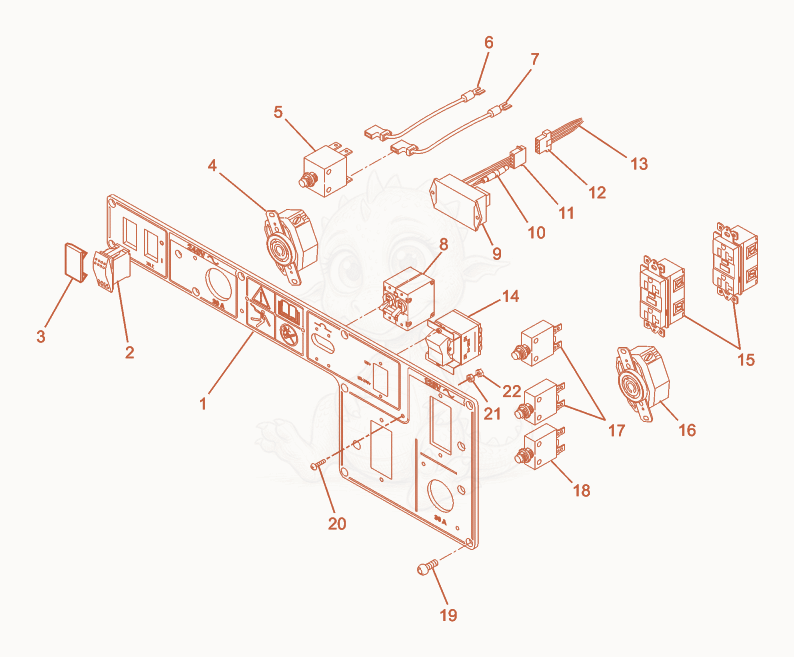

G5.6A Control Panel Diagram

Exploded parts diagram of the Control Panel of a Wacker Neuson G5.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110529
    $82.39
    NLA PANEL-CONTROL BOX,FRONT - 5000110529×1
  • 25000088489
    $15.08
    SWITCH-ROCKER,SPST - 5000088489×1
  • 35000110747Not stocked
    Cover×1
  • 45000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370Unknown×2
  • 45000082949
    $21.92
    RECEPTACLE 20A, 250V - 5000082949Unknown×1
  • 45000088174
    $0.18
    SCREW M4 X 12 - 5000088174Unknown×2
  • 45000116711Not stocked
    Receptacle Kit×1
  • 55000111616
    $51.71
    BREAKER-CIRCUIT,2 POLE,20 AMP - 5000111616×1
  • 65000111909
    $4.55
    WIRE-JUMPER,2P CB/TWIST LOCK - 5000111909×1
  • 75000111908
    $4.94
    WIRE-JUMPER,2P CB/TWIST LOCK - 5000111908×1
  • 85000088170
    $56.00
    BREAKER-CIRCUIT,2POLE,24AMP - 5000088170×1
  • 85000088237
    $0.03
    SCREW M3 X 6 - 5000088237×4
  • 95000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 95000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 95000115479
    $199.49
    NLA CONTROL MODULE-AUTO IDLE - 5000115479×1
  • 105000089121
    $1.63
    FUSE 1.6 AMP - 5000089121×1
  • 115000089118
    $0.66
    PIN 20-14 AWG. BRASS - 5000089118×4
  • 115000089117
    $1.13
    PLUG-4 PIN - 5000089117×1
  • 125000089119
    $0.81
    RECEPTACLE-SOCKET 4 PIN - 5000089119×1
  • 125000089120
    $102.95
    SLEEVE 20-14 AWG - 5000089120×4
  • 135000111613
    $64.54
    WIRING HARNESS-MAIN,CUL - 5000111613×1
  • 145000088237
    $0.03
    SCREW M3 X 6 - 5000088237×2
  • 145000114263
    $232.76
    SWITCH-ROCKER 3PDT,W/9 SCREWS - 5000114263×1
  • 155000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 155000088174
    $0.18
    SCREW M4 X 12 - 5000088174×4
  • 155000110404
    $39.34
    RECEPTACLE-GFI,15A - 5000110404×2
  • 165000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 165000082948
    $26.06
    RECEPTACLE 30A, 125V - 5000082948×1
  • 165000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 175000111614
    $44.42
    BREAKER-CIRCUIT,15 AMP - 5000111614×2
  • 185000111615
    $29.04
    BREAKER-CIRCUIT,30 AMP - 5000111615×1
  • 195000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×9
  • 205000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×1
  • 215000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 225000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×1
