G50-GENERATOR,SKID BASE

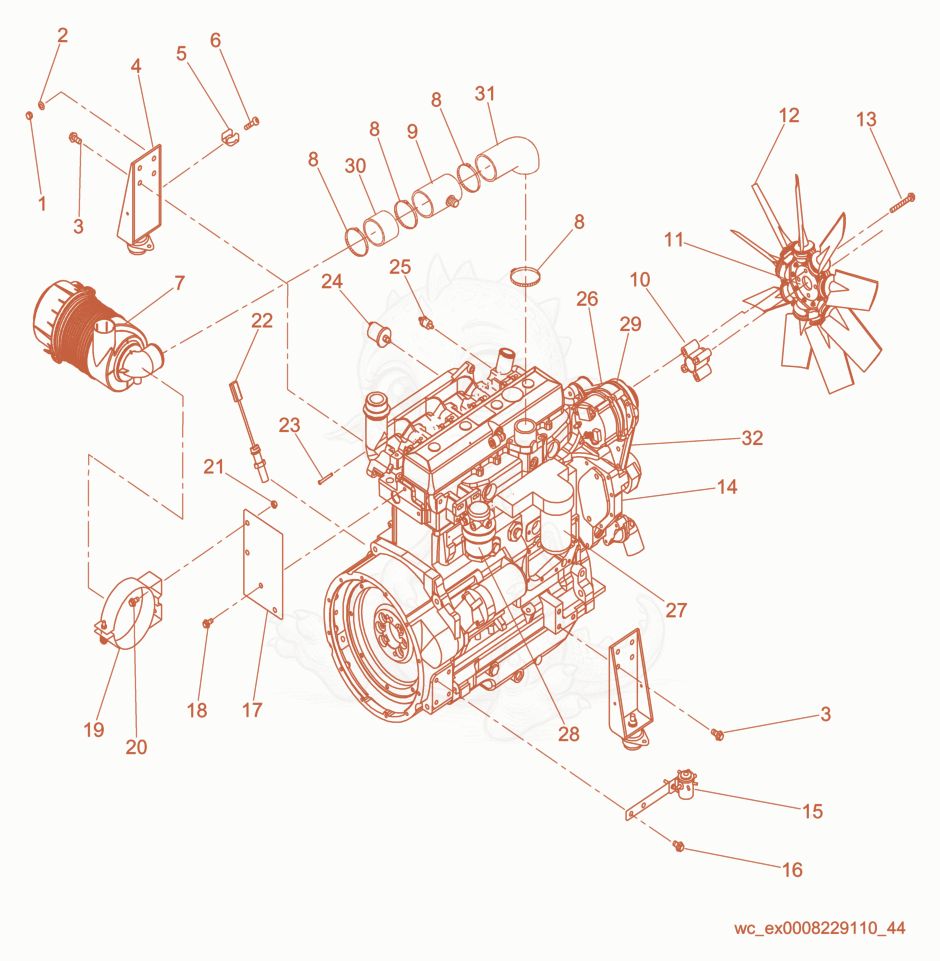

G50 Engine cpl. Diagram

Exploded parts diagram of the Engine cpl. of a Wacker Neuson G50, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000017312Not stocked
Hexagon nut×1
25000010625
$0.14
WASHER B5.3 FLAT - 5000010625×1
35000155248
$2.41
SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
45000115177Not stocked
Engine mount×2
55000153747
$4.20
CLIP-SPRING HOLDER - 5000153747×1
65000154517
$0.06
SCREW M5X20-4.8-H PAN HD - 5000154517×1
75000153071
$122.78
FILTER-AIR CLEANER - 5000153071×1
85000154344
$2.64
CLAMP-WORM DRIVE 2.06 -3 - 5000154344×4
95000153509
$84.27
FITTING-TAP SLEEVE,2.5 - 5000153509×1
105000153306
$136.52
SPACER-FAN - 5000153306×1
115000153228
$326.27
FAN-23 ,9 BLADES - 5000153228×1
125000115319
$65.87
BLADE-FAN,REPLACEMENT W/PIN - 5000115319×9
135000154523
$0.69
SCREW M10X80 HX HD 10.9 PLAIN - 5000154523×4
145000152960Not stocked
Deere engine×1
165000155249Not stocked
Hexagonal head cap screw×2
175000153161
$88.66
BRACKET-AIR FILTER - 5000153161×1
185000154521
$1.22
SCREW M10X20-10.9 HX SFLG MZP - 5000154521×2
195000153074
$24.96
CLAMP-AIR FILTER,8 - 5000153074×1
205000155213
$0.96
SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
215000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
225000153467
$541.57
SENSOR-MAG PICK UP - 5000153467×1
235000153652
$2.77
FITTING-1/4NPTX1/4 BARB,90 DEG - 5000153652×1
245000153220Not stocked
Sensor-oil×1
255200001043
$48.00
KIT-SENSOR,TEMP,MED - 5200001043×1
265000118868
$147.38
BELT-FAN,J.D.R123440 - 5000118868×1
275000115670
$59.11
FILTER-OIL - 5000115670×1
285000115669Not stocked
Fuel filter×1
295000115667Not stocked
Alternator×1
305000153520
$19.27
HOSE-AIR FILTER 2.5 ,G50 - 5000153520×1
315000153519
$27.22
HOSE-AIR FILTER,G50 - 5000153519×1
325000118868
$147.38
BELT-FAN,J.D.R123440 - 5000118868×1
