G50-GENERATOR,COLD WEATHER

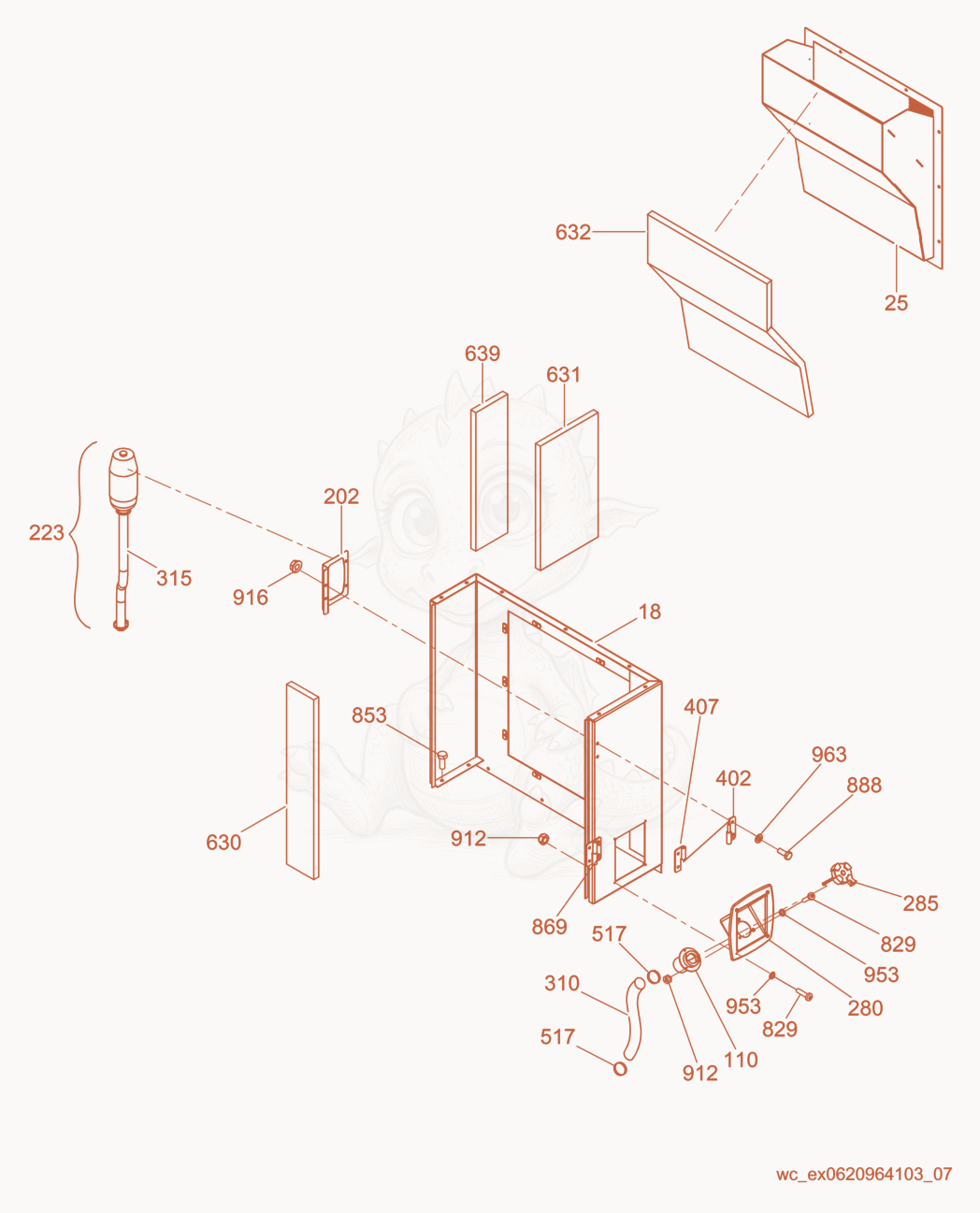

G50 Rear Enclosure w/Fuel Fill Diagram

Exploded parts diagram of the Rear Enclosure w/Fuel Fill of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 185000159870
    $1,198.41
    PANEL-ENCL REAR WLDMNT,MED, P-500017767 - 5000159870×1
  • 255000187149
    $1,548.35
    PANEL-REAR ACCESS WLDT,G50 P-5000176420 - 5000187149×1
  • 1105000153013
    $56.33
    TUBE-FILLER,WELDMENT P - 5000112007 - 5000153013×1
  • 2025000159017
    $16.34
    BRACKET-FUEL AIR SEPARATOR P-5000176420 - 5000159017×1
  • 2235000155186
    $183.57
    TANK-FUEL/AIR SEPARATOR - 5000155186×1
  • 2805000153002
    $47.11
    PORT-FUEL FILL - 5000153002×1
  • 2855000153424
    $127.73
    CAP-FUEL FILL - 5000153424×1
  • 3105000159374
    $27.13
    HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
  • 3155200004733
    $14.31
    HOSE-FUEL 5/8 x 42 RACOR GEN-MED - 5200004733×1
  • 4025000164972
    $25.15
    HINGE-R.H.,PIN LEAF - 5000164972×2
  • 4075000164973
    $12.90
    HINGE-R.H.,BARREL LEAF - 5000164973×2
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
  • 6305000164239
    $19.01
    INSULATOR-REAR,SIDE - 5000164239×2
  • 6315000164240
    $27.51
    INSULATOR-CORNER,FUEL FILL - 5000164240×1
  • 6325000164241
    $69.37
    INSULATOR-DUCT REAR - 5000164241×1
  • 6395000189845
    $23.52
    INSULATOR-RHT REAR CORNER - 5000189845×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×7
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×7
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×2
  • 8885000161194
    $0.29
    SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×2
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×7
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
