G50-GENERATOR,COLD WEATHER

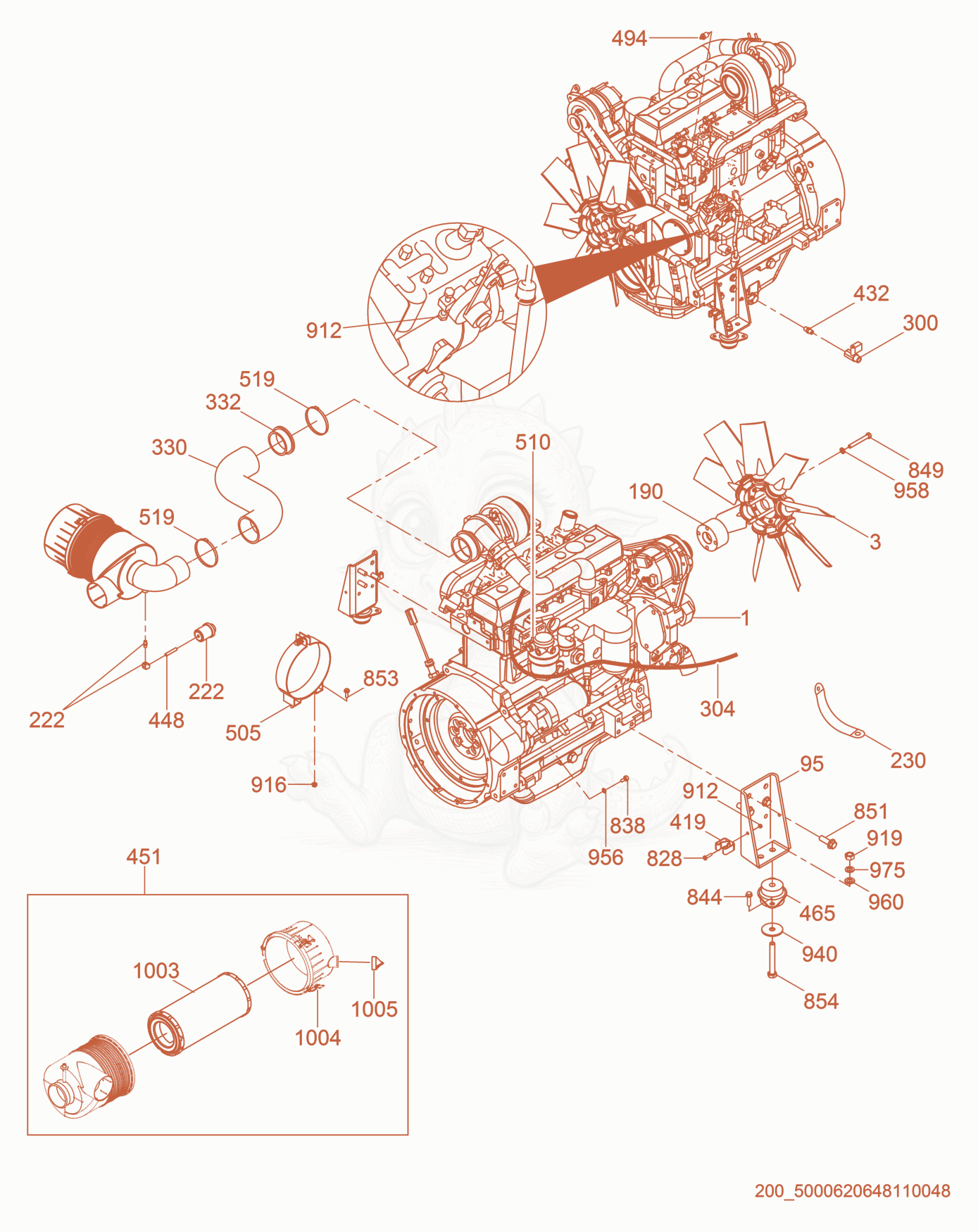

G50 Engine cpl. Diagram
- ENGINE-DEERE 4045TF280,75HP - 5000172285×1
- FAN-23 ,9 BLADES - 5000153228×1
- MOUNT-ENGINE WELDMENT P-5000176420 - 5000159845×1
- SPACER-FAN - 5000153306×1
- GAUGE-FILTER MINDER - 5000158691×1
- STRAP-GROUND 10 - 5000152978×1
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- HOSE-AIR INTAKE 3.5 X 610MM - 5000162779×1
- INSERT-AIR FILTR 3.5 OD X 3 ID - 5000153466×1
- CLIP-SPRING HOLDER - 5000153747×2
- FITTING M18 X 1/2 NPT - 5000154304×1
- FITTING-NIPPLE,1/8 X 2 - 5000160693×1
- FILTER-AIR CLEANER - 5000160913×1
- SHOCKMOUNT-RUBBER,570LBS - 5000153064×2
- SENSOR-MAG PICK UP - 5000153467×1
- SENSOR-OIL PRESSURE - 5000176122×1
- KIT-SENSOR,TEMP,MED - 5200001043×1
- CLAMP-AIR FILTER,8 - 5000153074×1
- CLAMP-THREADED,.21-.63 - 5000028707×1
- CLAMP-WORM DRIVE 57mm-108mm - 5000154345×2
- SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- SCREW M10X20-10.9 HX SFLG MZP - 5000154521×4
- SCREW M10X80 HX HD 10.9 PLAIN - 5000154523×4
- SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
- SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×2
- SCREW M12 X 90 HX.HD. - 5000011309×2
- NUT-LOCK M5 HEX. - 5000010369×3
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
- WASHER-SNUBBER - 5000153066×2
- WASHER-FLAT,M8,ZINC - 5000010622×1
- WASHER M10 HARDENED BLK TP 200 - 5000154530×1
- WASHER B13 FLAT - 5000010620×2
- WASHER-LOCK B12 - 5000012648×2
- FILTER-AIR CLEANER - 5000153071×1
- ELEMENT-FILTER,AIR - 5000115348×1
- X-5000171456 CLIP-AIR FILTER - 5000155417×3
- CAP-DUST EJECTOR - 5000155418×1
