G50-GENERATOR,COLD WEATHER

G50 Control Panel-Front Diagram

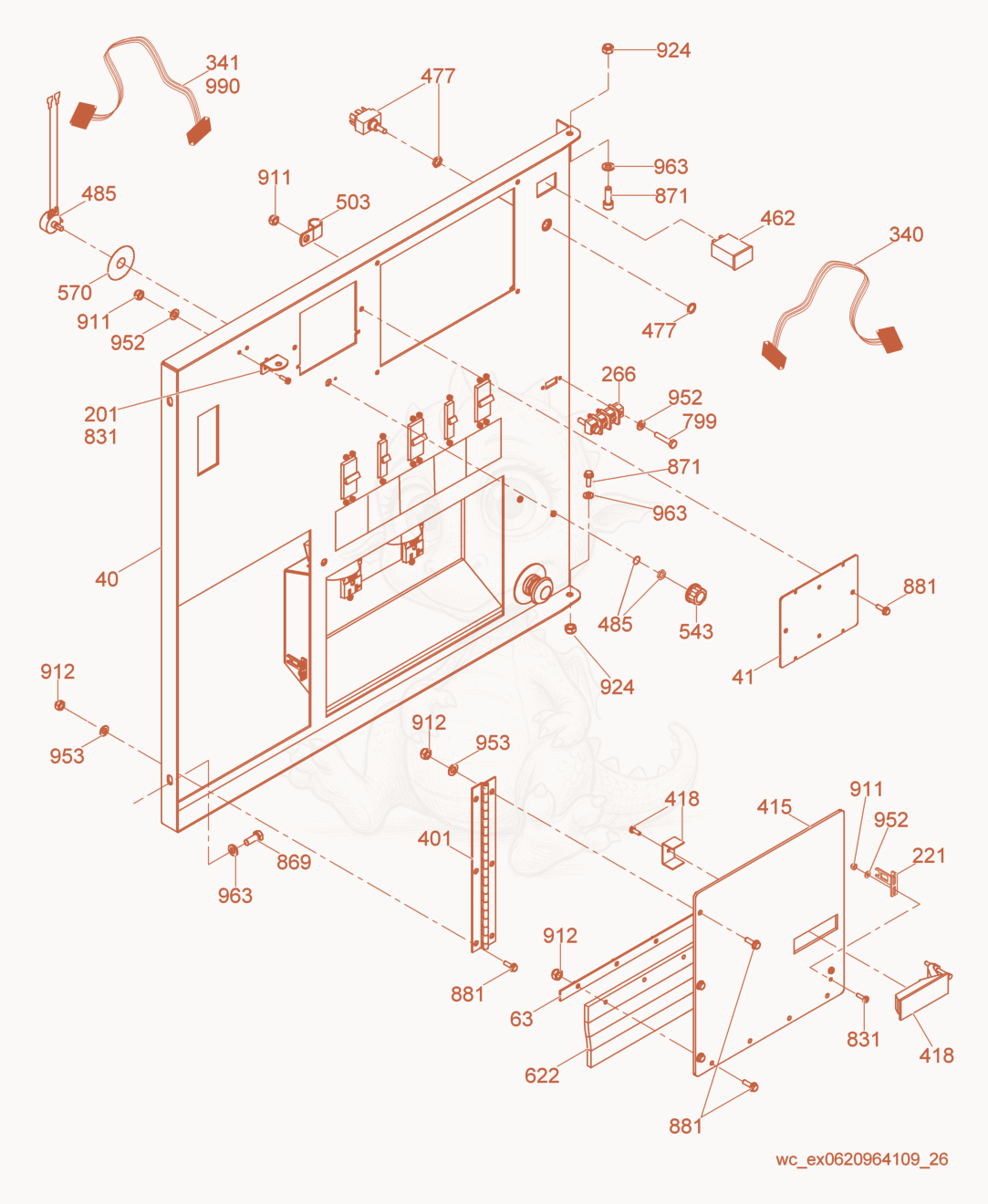

Exploded parts diagram of the Control Panel-Front of a Wacker Neuson G50, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

405000176133
$1,692.63
Panel Control Box,Front,Med 5000176133×1
415000176127
$13.30
PLATE-AVR - 5000176127×1
635000160589
$14.74
PLATE-RETAINER - 5000160589×1
2015000158903
$8.48
BRACKET-PROP ROD - 5000158903×1
2215000153080
$28.83
KEY-LOCKOUT SWITCH (90) - 5000153080×1
2665000159130
$12.94
BLOCK-TERMINAL,2 POSITION - 5000159130×1
3405000176129
$158.29
WIRING-HARNESS,AC - 5000176129×1
3415000176135
$1,084.38
WIRING HARNESS - DC, G50 - 5000176135×1
3415000178061
$40.34
Resistor, 47 ohm - 5000178061×1
4015000158784
$37.31
LATCH-NONLOCK,FLUSH,P.BTN - 5000158784×1
4155000171449
$41.05
PANEL-LUG DOOR - 5000171449×1
4185000158784
$37.31
LATCH-NONLOCK,FLUSH,P.BTN - 5000158784×1
4625000174668
$104.75
HOURMETER,MECHANICAL - 5000174668×1
4775000176123
$36.99
SWITCH-TOGGLE,DPDT - 5000176123×1
4855000177752
$78.16
WIRING-HARNESS,VOLTAGE ADJUST - 5000177752×1
5035000153746
$1.14
CLAMP-TUBING .625 - 5000153746×1
5435000183016
$4.96
KNOB-VOLTAGE ADJUST - 5000183016×1
5705000153523
$8.44
GUARD-POTENTIOMETER - 5000153523×1
6225000159152
$41.25
GUARD-LUG BOX,FOAM - 5000159152×1
7995000011486
$0.19
SCREW M4 X 20 HX.HD. - 5000011486×2
8315000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×4
8695000158897
$0.25
SCREW M8X20 HX.HD.,SST - 5000158897×2
8715000051543
$1.03
SCREW M8 X 25 ST,SOC.HD - 5000051543×2
8815000159811
$0.95
SCREW M5X16 HX HD SERR FLG ZP - 5000159811×8
9115000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×6
9125000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×10
9245000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
9365000158899
$0.07
WASHER M8 FLAT,SST - 5000158899×2
9525000010628
$0.02
WASHER A4.3 FLAT - 5000010628×6
9535000010625
$0.14
WASHER B5.3 FLAT - 5000010625×6
9635000158899
$0.07
WASHER M8 FLAT,SST - 5000158899×2
9905000154349
$25.72
DIODE ASSEMBLY - 5000154349×1
