G60 Generator,50 Hz Prem Export, CE

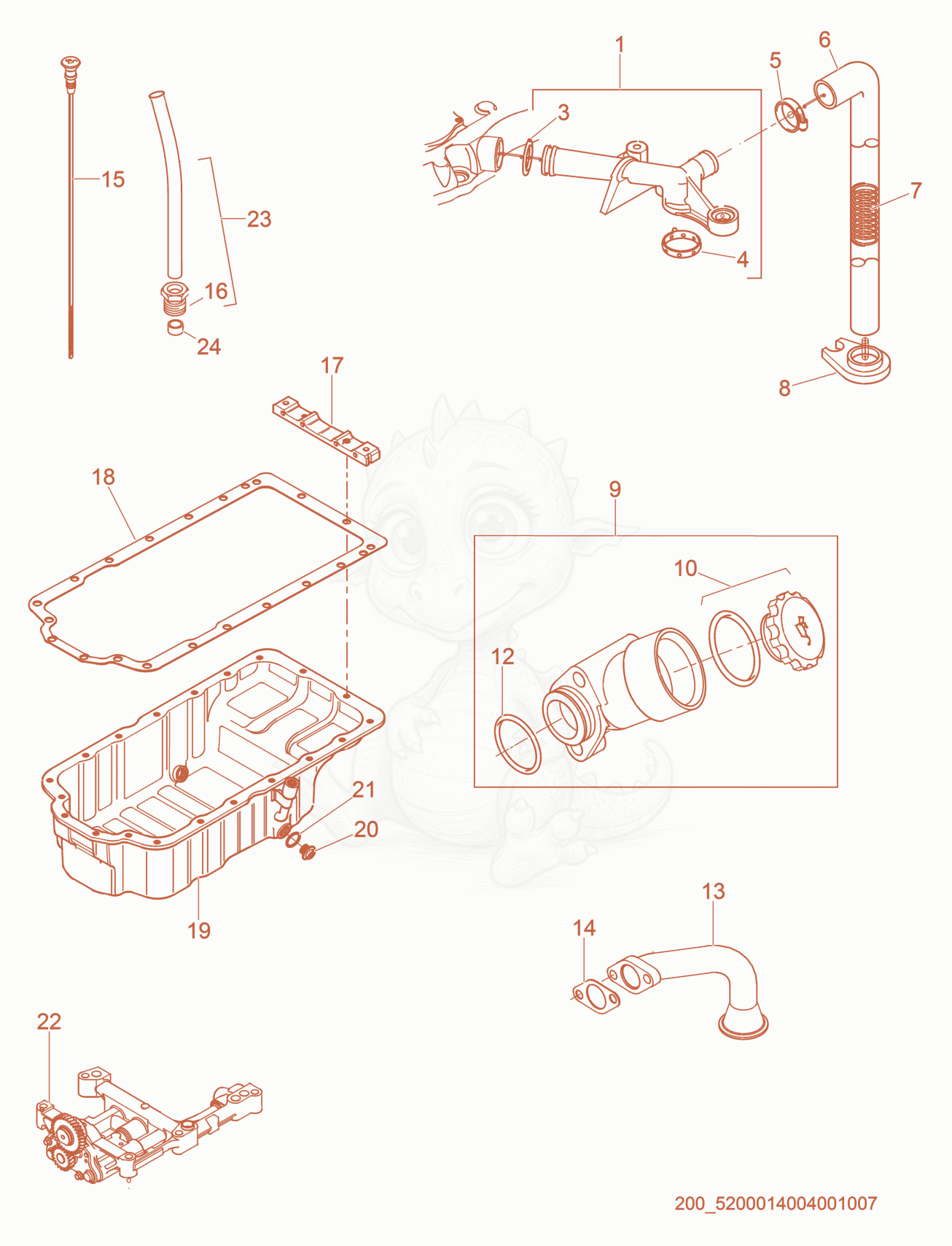

G60 Dipstick/Oil Pump Diagram

Exploded parts diagram of the Dipstick/Oil Pump of a Wacker Neuson G60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200021197Not stocked
    Breather tube×1
  • 35200021341Not stocked
    O-Ring×1
  • 45200021340Not stocked
    O-Ring×1
  • 55200021063Not stocked
    Clip×1
  • 65200021148Not stocked
    Hose×1
  • 75200021362Not stocked
    Spring×1
  • 85200021371Not stocked
    Support bracket×1
  • 95200021187Not stocked
    Oil fill tube×1
  • 105200021188Not stocked
    Oil filler cap×1
  • 125200021342Not stocked
    O-Ring×1
  • 135200021206Not stocked
    Pipe×1
  • 145200021129Not stocked
    Gasket×1
  • 155200024094Not stocked
    Dipstick×1
  • 165200024097Not stocked
    Nut×1
  • 175200021044Not stocked
    Connector-Bridge×1
  • 185200024093Not stocked
    Oil pan gasket×1
  • 195200024092Not stocked
    Oil pan×1
  • 205200021253Not stocked
    Plug×1
  • 215200021338Not stocked
    O-Ring×1
  • 225200024111Not stocked
    Oil Pump×1
