G70-GENERATOR, SKID, CUSTOM, DEERE T3

G70 Option-Containment Skid Diagram

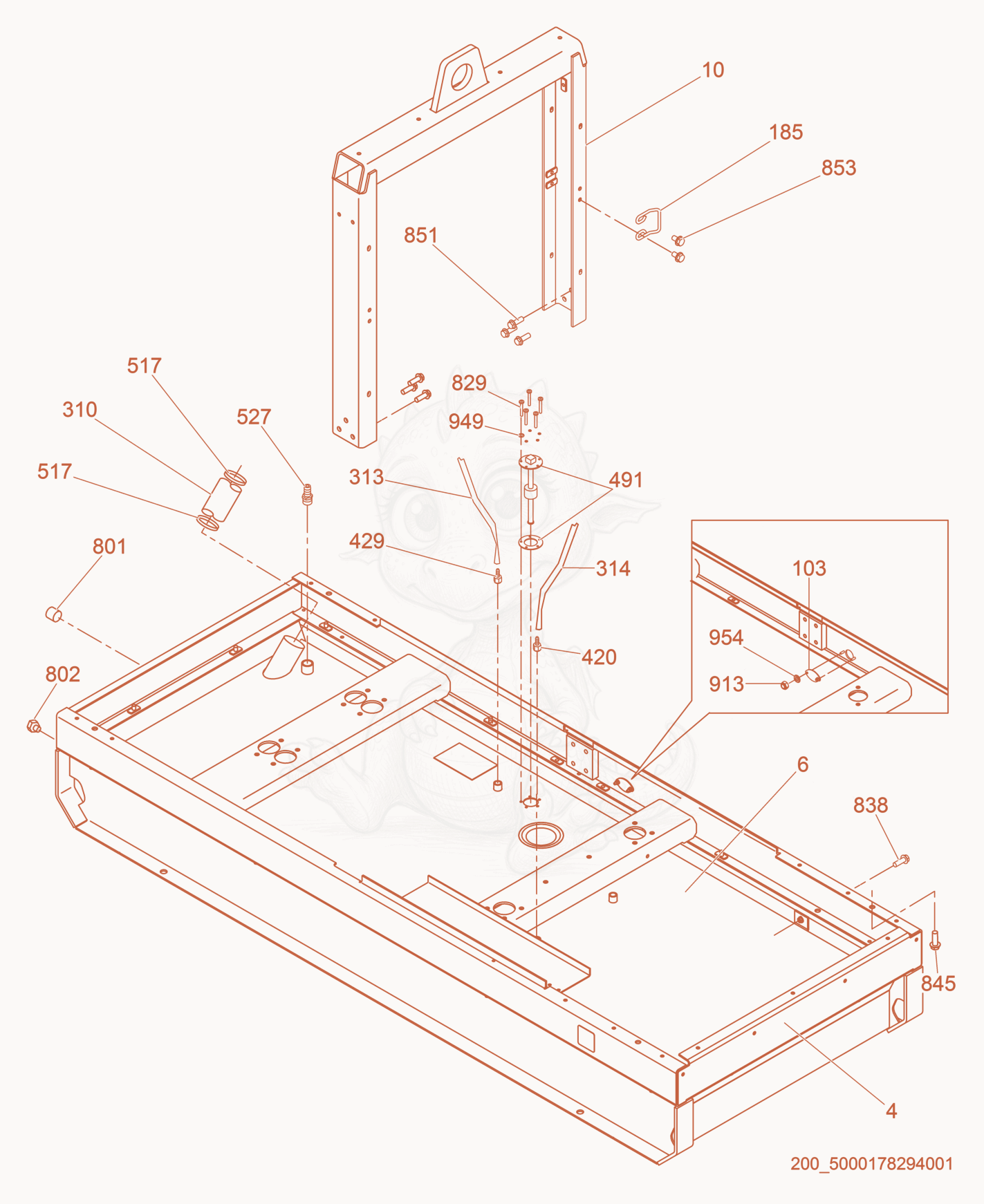

Exploded parts diagram of the Option-Containment Skid of a Wacker Neuson G70, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

45000159054
$2,659.33
FRAME-SKID WELDMENT UPPER - 5000159054×1
65000159049
$3,062.87
TANK-FUEL,89 GAL P-5000112007 - 5000159049×1
105000159812
$1,529.37
FRAME-LIFT STRUCT. WLD,MED P-5000176420 - 5000159812×1
1035000158900
$29.81
PANEL-OIL DRAIN COVER,SKID P-5000176420 - 5000158900×1
1855000158982
$2.54
LATCH STRIKE,WIRE - 5000158982×4
3105000159374
$27.13
HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
3135000174733
$3.95
HOSE-FUEL,1/4 X 915MM - 5000174733×1
3145000172785
$14.72
HOSE-FUEL 5/16 X 1170MM - 5000172785×1
4205000160596
$11.12
FITTING-5/16 BARB X 3/8 F.NPT - 5000160596×1
4295000160980
$4.62
FITTING 1/4 BARB X 3/8 FNPT - 5000160980×1
4915200001005
$134.07
Sensor-Fuel,205mm w/connector - 5200001005×1
4965000158908
$4.39
GASKET-FUEL SENDER - 5000158908×1
5175000154344
$2.64
CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
5275200005055
$9.69
Fitting-3/4npt x 5/8 Beaded Hose, 90 de - 5200005055×1
8015000153237
$1.99
PLUG-1/2 HEX SOCKET - 5000153237×1
8025000159651
$36.72
PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
8295000154517
$0.06
SCREW M5X20-4.8-H PAN HD - 5000154517×5
8385000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
8455000116164
$0.69
SCREW M10X25 HEX,SER.FLG ZP - 5000116164×12
8515000155248
$2.41
SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
8535000157021
$0.57
SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
9135000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×2
9165000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
9495000064610
$0.20
SEAL-RING 5 X 7.5 - 5000064610×5
9545000010624
$0.03
WASHER B6.4 FLAT - 5000010624×2
