G70-GENERATOR, SKID, CUSTOM, DEERE T3

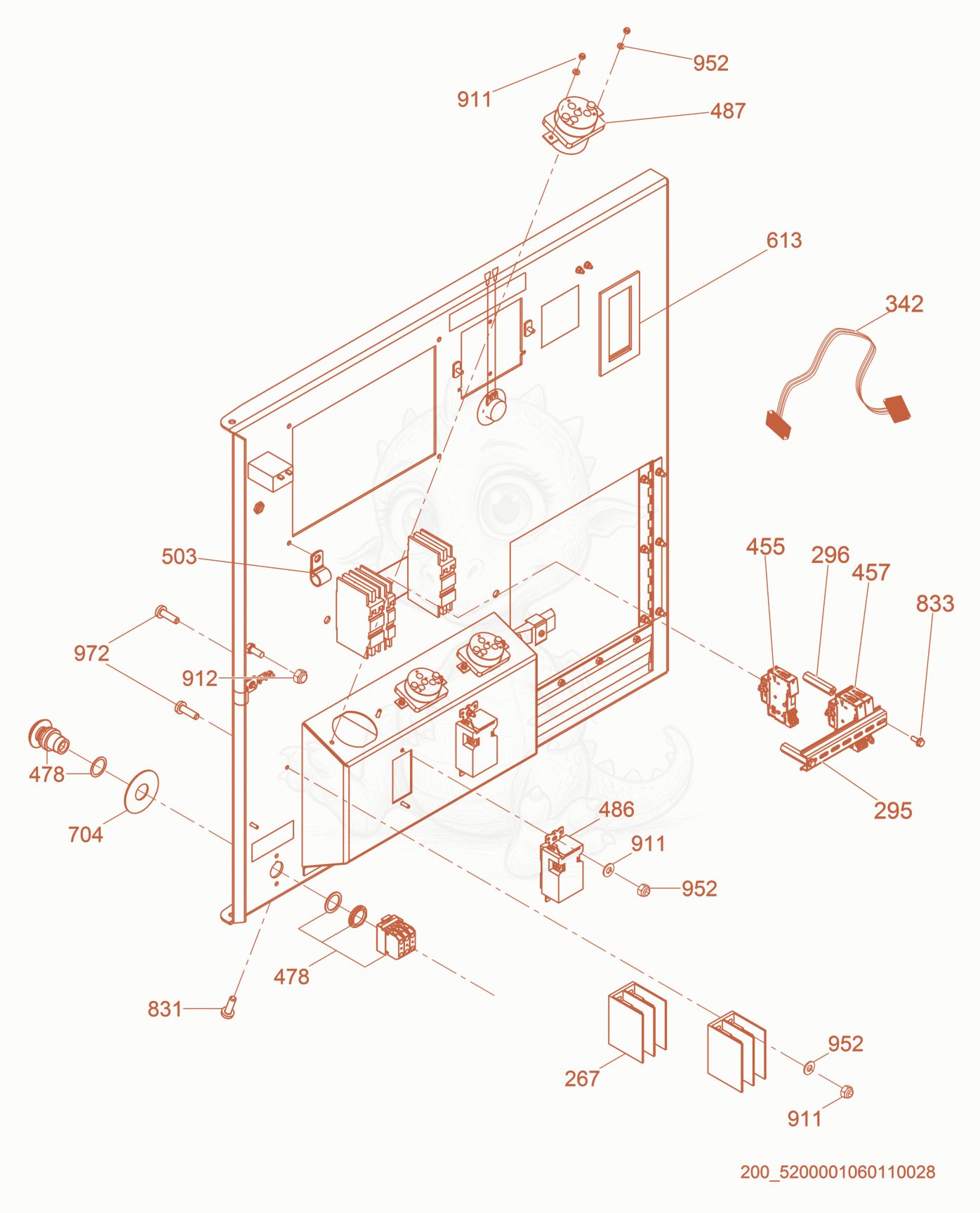

G70 Control Panel-Rear Diagram

Exploded parts diagram of the Control Panel-Rear of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2675000160091
    $109.20
    TERMINAL-BLOCK - 5000160091×2
  • 2955200012337Not stocked
    Plate×1
  • 2965200012338Not stocked
    Spacer×2
  • 3425000161071
    $135.31
    WIRING HARNESS-RECEPTACLE,MED - 5000161071×1
  • 4555200023000Not stocked
    Circuit breaker×2
  • 4575200023001Not stocked
    Circuit breaker×2
  • 4785000165439
    $139.33
    SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
  • 4865000089774
    $41.55
    RECEPTACLE-GFI, 20A SP=5000089849 - 5000089774×1
  • 4875000153277
    $69.08
    RECEPTACLE,50 AMP TWIST LOCK - 5000153277×3
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×1
  • 6135000160647
    $3.19
    SEAL-CIRCUIT BREAKER - 5000160647×1
  • 7045000155460
    $148.82
    LABEL-EMERGENCY STOP - 5000155460×1
  • 8315000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×8
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×16
  • 9115000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×10
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×10
  • 9715000154532
    $0.02
    WASHER-LOCK M3.5 ZP - 5000154532×16
