G70 Generator,ERT,Exempt

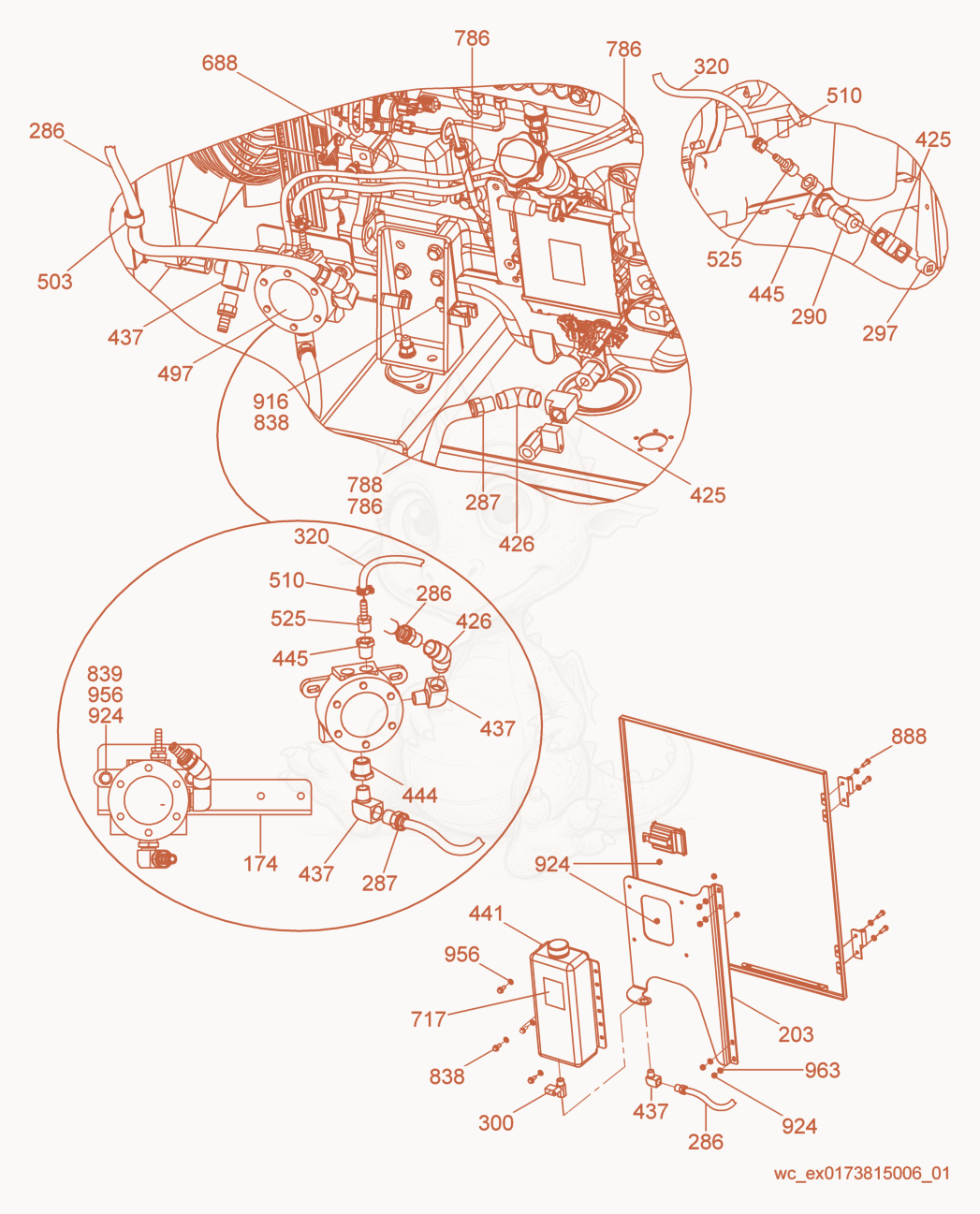

G70 Option-Lube Level Maintainer Diagram

Exploded parts diagram of the Option-Lube Level Maintainer of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1745000173814Not stocked
    Lube level maintainer bracket×1
  • 2035000162821
    $143.17
    BRACKET-OIL TANK P-5000176420 - 5000162821×1
  • 2865000176294
    $46.45
    HOSE-ASSY,LUBE LEV,755MM - 5000176294×1
  • 2875000176293
    $46.75
    HOSE-ASSY,LUBE LEV,650MM - 5000176293×1
  • 2905000153962
    $40.66
    FITTING M22 X 1/2 NPT - 5000153962×1
  • 2975000164618
    $79.95
    FITTING-HOSE,3/8 NPT X 5/16 - 5000164618×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 3145000160671
    $1.77
    HOSE-FUEL 5/16 X 250MM - 5000160671×1
  • 3205000174755
    $6.72
    HOSE-FUEL 5/16 X 1600MM - 5000174755×1
  • 4255000162825
    $31.09
    FITTING-STREET TEE,1/2 NPT - 5000162825×1
  • 4265000154306
    $10.27
    FITTING 1/2 STREET 45 - 5000154306×2
  • 4375000159388
    $12.00
    FITTING-90 DEG.1/2 STREET ELBW - 5000159388×4
  • 4415000159404
    $95.76
    BOTTLE,ASSY 6 QT. 1/2 NPTF - 5000159404×1
  • 4445000159828
    $3.31
    FITTING-1/2 NPT F./3/4 NPT M. - 5000159828×1
  • 4455000159829
    $2.11
    FITTING-1/2 MALE/3/8 FEMLE NPT - 5000159829×2
  • 4975000159384
    $523.47
    X-5200017036/17037 METER-LUBE LEVEL - 5000159384×1
  • 5035000110458
    $0.65
    CLAMP-TUBE CLIP - 5000110458×1
  • 5105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×2
  • 5255000153651
    $4.51
    FITTING 3/8 NPT X 5/16 BARB - 5000153651×2
  • 6885000177897
    $101.37
    WIRING HARNESS-LUBE LEVEL - 5000177897×1
  • 7175000159435
    $50.61
    LABEL-OIL TANK - 5000159435×1
  • 7865000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×6
  • 7885000169993
    $6.71
    SLEEVE-HOSE,480MM - 5000169993×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 8395000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
  • 8885000161194
    $0.29
    SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×4
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×10
  • 9265000010882
    $0.05
    NUT M8 8,HEX - 5000010882×1
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×6
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
