G70 switchable 600 VOLT Tier 3 GENERATOR, CUSTOM

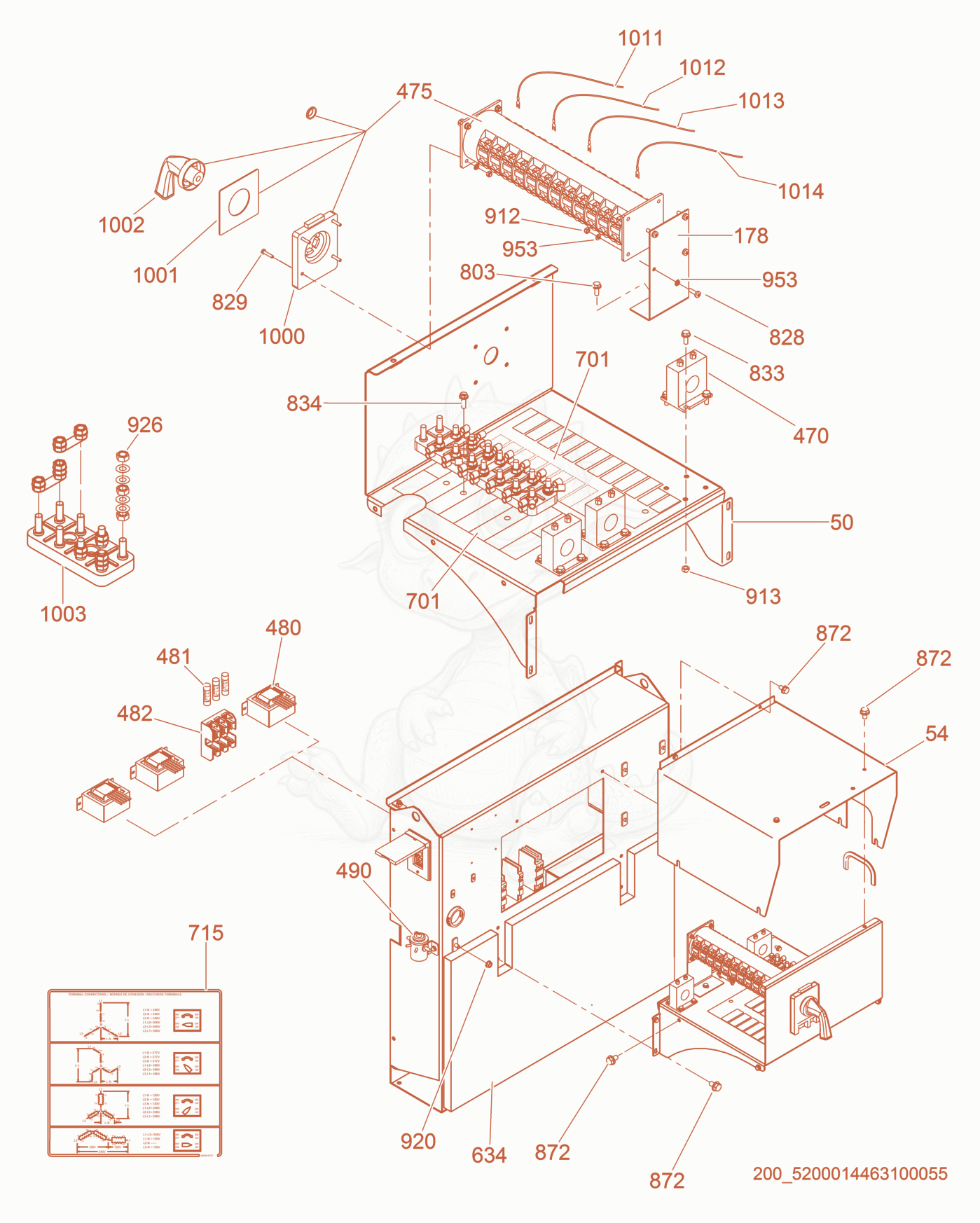

G70 Voltage Selector Switch Box Diagram

Exploded parts diagram of the Voltage Selector Switch Box of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505000181223
    $182.45
    PANEL-SS BOX BOTTOM,MED P-5000176420 - 5000181223×1
  • 545000160594
    $380.41
    PANEL,SS BOX TOP - 5000160594×1
  • 1785000181225
    $154.51
    BRACKET-SS REAR,MED P-5000176420 - 5000181225×1
  • 4705000155073
    $53.72
    TRANSFORMER (300:5) - 5000155073×3
  • 4755200017211Not stocked
    Phase switch×1
  • 4805200018200Not stocked
    Transformer×3
  • 4815200018201Not stocked
    Fuse×1
  • 4825000154771
    $100.98
    HOLDER-FUSE,CLASS CC - 5000154771×3
  • 4905000153226
    $76.73
    RELAY-65 AMP,12 VOLT - 5000153226×1
  • 6345000164243
    $64.94
    INSULATOR-REAR,CONTROL PANEL - 5000164243×1
  • 7015200018296Not stocked
    Label sheet×1
  • 7155200018777Not stocked
    Label×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×4
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×4
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×12
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×2
  • 8725000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×13
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×4
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×15
  • 9205000115570
    $0.12
    Nut M8 Flange, Non serrated - 5000115570×1
  • 9265000010882
    $0.05
    NUT M8 8,HEX - 5000010882×7
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
  • 10005200018360Not stocked
    Locking device×1
  • 10015200018361Not stocked
    Plate×1
  • 10025200018362Not stocked
    Handle×1
  • 10035200003951
    $104.46
    TERMINAL BLOCK - 5200003951×2
