G85-GENERATOR,SKID BASE

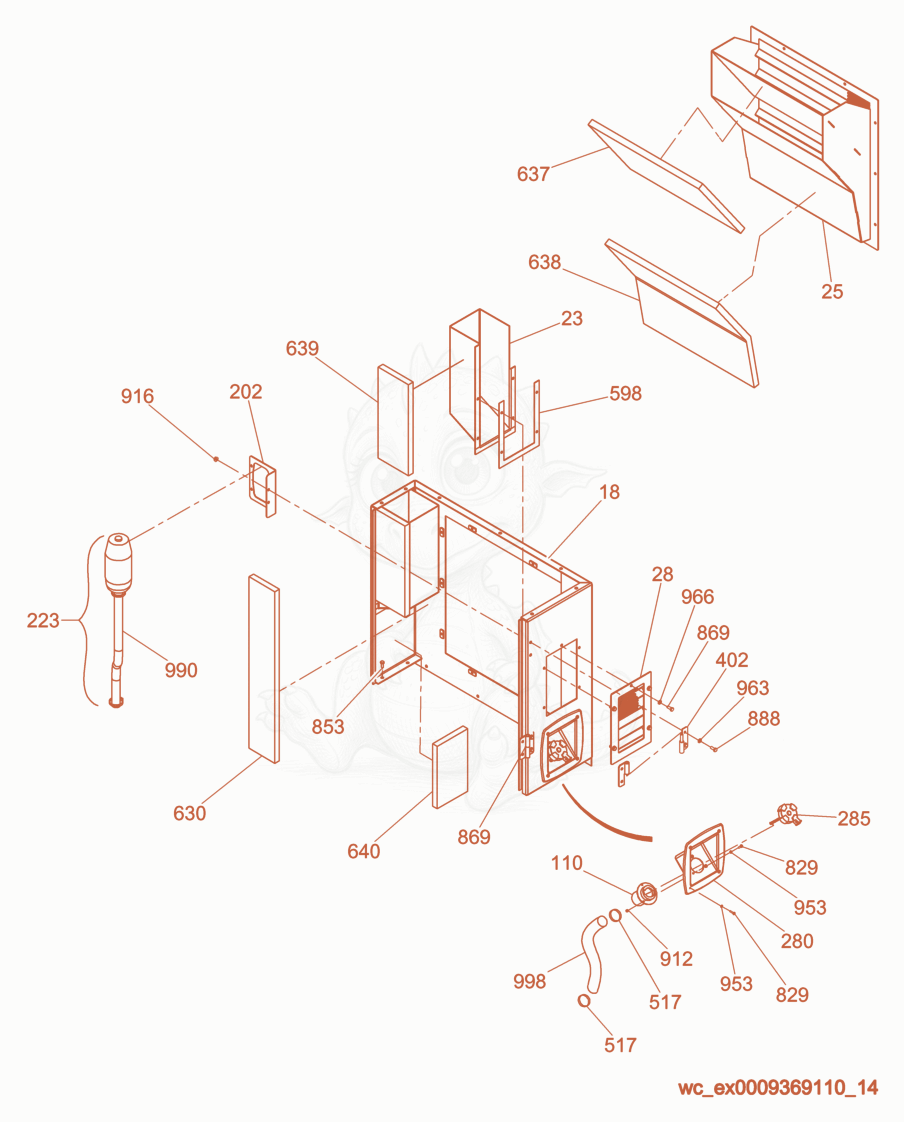

G85 Rear Enclosure w/Fuel Fill Diagram

Exploded parts diagram of the Rear Enclosure w/Fuel Fill of a Wacker Neuson G85, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

185000161289
$717.65
PANEL-ENCL REAR WELDMENT - 5000161289×1
235000161300
$366.33
PANEL-SIDE DUCT WELDMENT - 5000161300×1
255000161291
$1,346.57
PANEL-REAR ACCESS WELDMENT P-5000176420 - 5000161291×1
285000161297
$148.83
PANEL-SIDE ACCESS WELDMENT - 5000161297×1
1105000153013
$56.33
TUBE-FILLER,WELDMENT P - 5000112007 - 5000153013×1
2025000159017
$16.34
BRACKET-FUEL AIR SEPARATOR P-5000176420 - 5000159017×1
2235000155186
$183.57
TANK-FUEL/AIR SEPARATOR - 5000155186×1
2805000153002
$47.11
PORT-FUEL FILL - 5000153002×1
2855000153424
$127.73
CAP-FUEL FILL - 5000153424×1
4025000158848
$31.55
HINGE-DOOR,RIGHT SIDE - 5000158848×2
5175000154344
$2.64
CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
5985000161331
$13.50
GASKET-REAR CORNER DUCTS - 5000161331×1
6305000164239
$19.01
INSULATOR-REAR,SIDE - 5000164239×2
6375000164246
$31.04
INSULATOR-REAR ACCESS,TOP - 5000164246×1
6385000164247
$68.08
INSULATOR-REAR ACCESS,BOTTOM - 5000164247×1
6395000164248Not stocked
Insulator-duct, rear×2
6405000164249Not stocked
Insulator-corner, rear right×1
8295000154517
$0.06
SCREW M5X20-4.8-H PAN HD - 5000154517×7
8535000157021
$0.57
SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×4
8695000158897
$0.25
SCREW M8X20 HX.HD.,SST - 5000158897×2
8885000161194
$0.29
SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×2
9125000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×2
9165000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
9535000010625
$0.14
WASHER B5.3 FLAT - 5000010625×7
9635000158899
$0.07
WASHER M8 FLAT,SST - 5000158899×4
9665000160626
$0.06
WASHER-LOCK M8 INT.STAR SST - 5000160626×1
9905000115783
$76.67
HOSE-TANK VENT - 5000115783×1
9985000153053
$89.10
HOSE-FUEL FILL - 5000153053×1
