G95 Generator 50Hz, LATAM, Premium

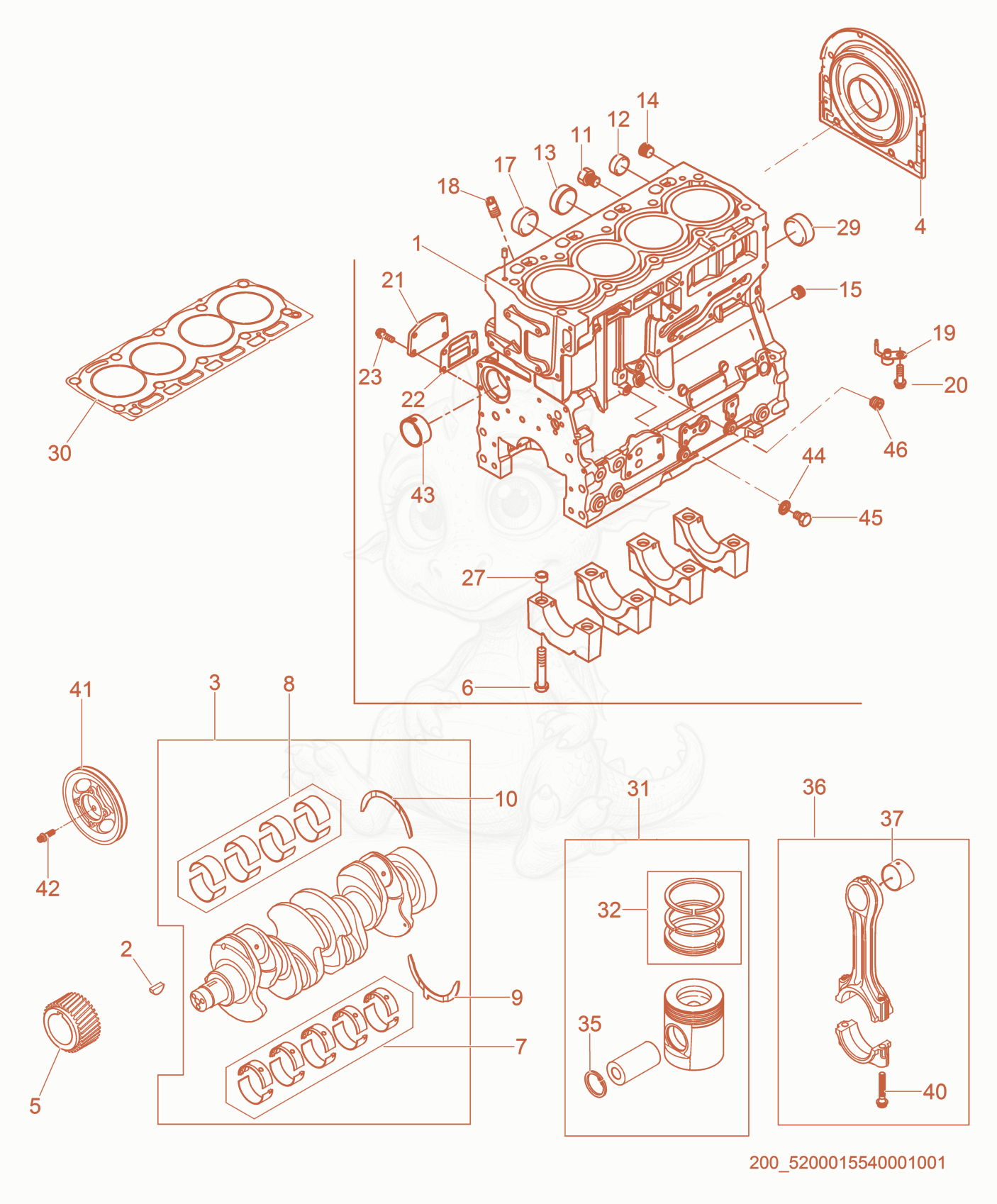

G95 Cylinder Block Diagram

Exploded parts diagram of the Cylinder Block of a Wacker Neuson G95, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200024839Not stocked
    Short engine cpl.×1
  • 35200024064Not stocked
    Crankshaft×1
  • 45200021351Not stocked
    Seal×1
  • 55200021078Not stocked
    Crankshaft gear×1
  • 65200021333Not stocked
    Screw×10
  • 75200024065Not stocked
    Bearing×1
  • 85200024066Not stocked
    Bearing×1
  • 95200021394Not stocked
    Thrust washer×2
  • 105200021393Not stocked
    Thrust washer×2
  • 115200021242Not stocked
    Plug×2
  • 135200021244Not stocked
    Plug×1
  • 155200021240Not stocked
    Plug×1
  • 175200021243Not stocked
    Plug×2
  • 185200021421Not stocked
    Washer×1
  • 195200021213Not stocked
    Jet×4
  • 205200021295Not stocked
    Screw×4
  • 215200021031Not stocked
    Plate×1
  • 225200021436Not stocked
    Gasket×1
  • 235200021307Not stocked
    Screw×4
  • 275200021388Not stocked
    Collar×10
  • 295200021246Not stocked
    Plug×1
  • 305200024069Not stocked
    Cylinder head gasket×1
  • 315200024814Not stocked
    Piston w/Ring Set×4
  • 325200021214Not stocked
    Piston Ring Set×1
  • 355200021056Not stocked
    Clip×2
  • 365200024771Not stocked
    Connecting rod×1
  • 365200024772Not stocked
    Connecting rod×3
  • 375200021358Not stocked
    Bushing×1
  • 405200024150Not stocked
    Bolt×2
  • 415200024107Not stocked
    Crankshaft pulley×1
  • 425200021036Not stocked
    Bolt×3
  • 435200021050Not stocked
    Bushing×1
  • 445200021421Not stocked
    Washer×1
  • 455200021294Not stocked
    Screw×1
