GB3000G

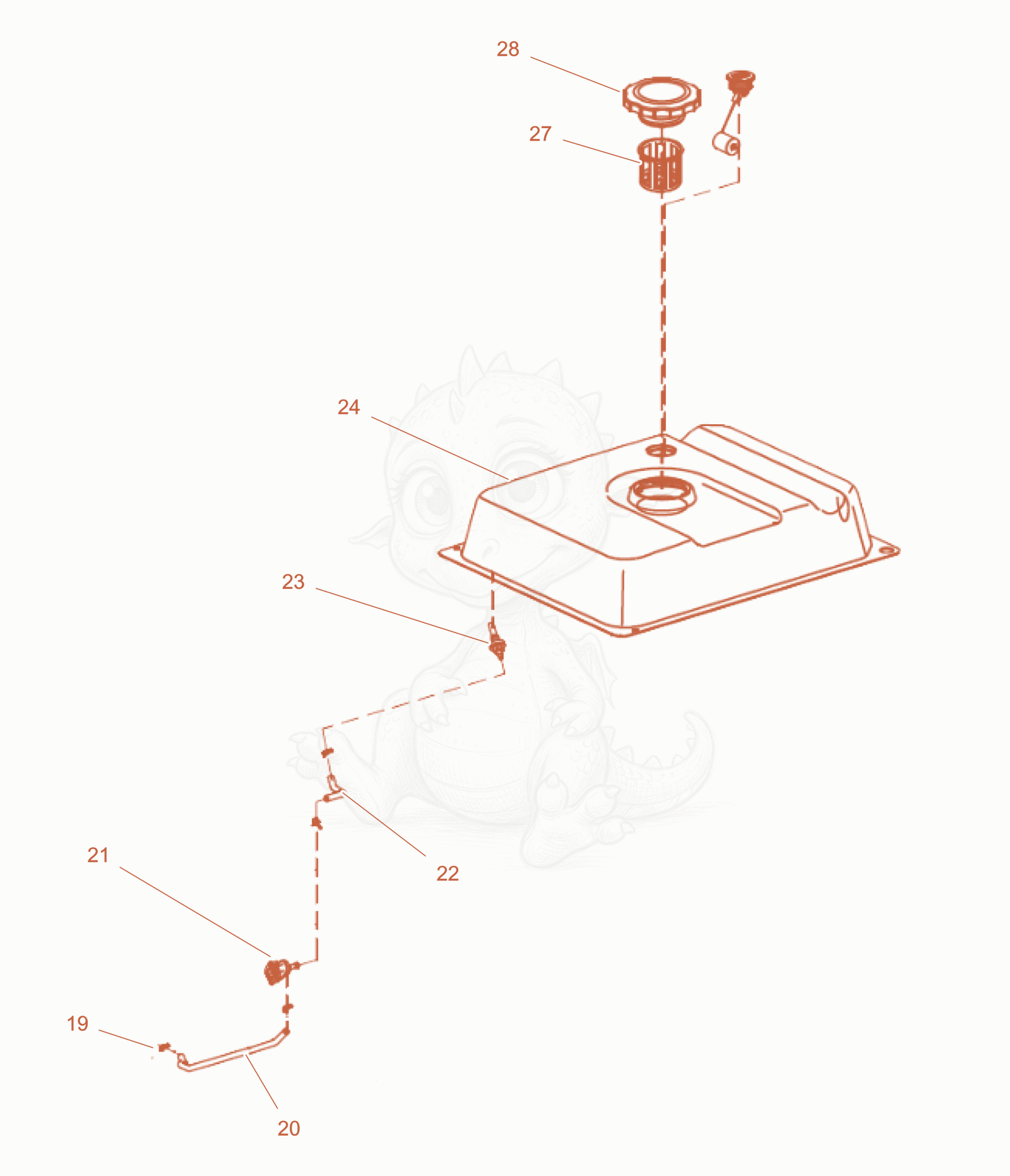

GB3000GCE Fuel tank cpl. Diagram

Exploded parts diagram of the Fuel tank cpl. of a Wacker Neuson GB3000GCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 195000408758
    $0.10
    Tube clamp - 5000408758×4
  • 205100083290Not stocked
    Oil tube×1
  • 215100083289Not stocked
    Components of oil switch×1
  • 225100083288Not stocked
    Oil tube×1
  • 235100083306Not stocked
    Tank oilout×1
  • 245100083305Not stocked
    Tank×1
  • 275100083303Not stocked
    Pouring orifice filter screen combinatio×1
  • 285100083302Not stocked
    Tank cover×1
