GDS5500G

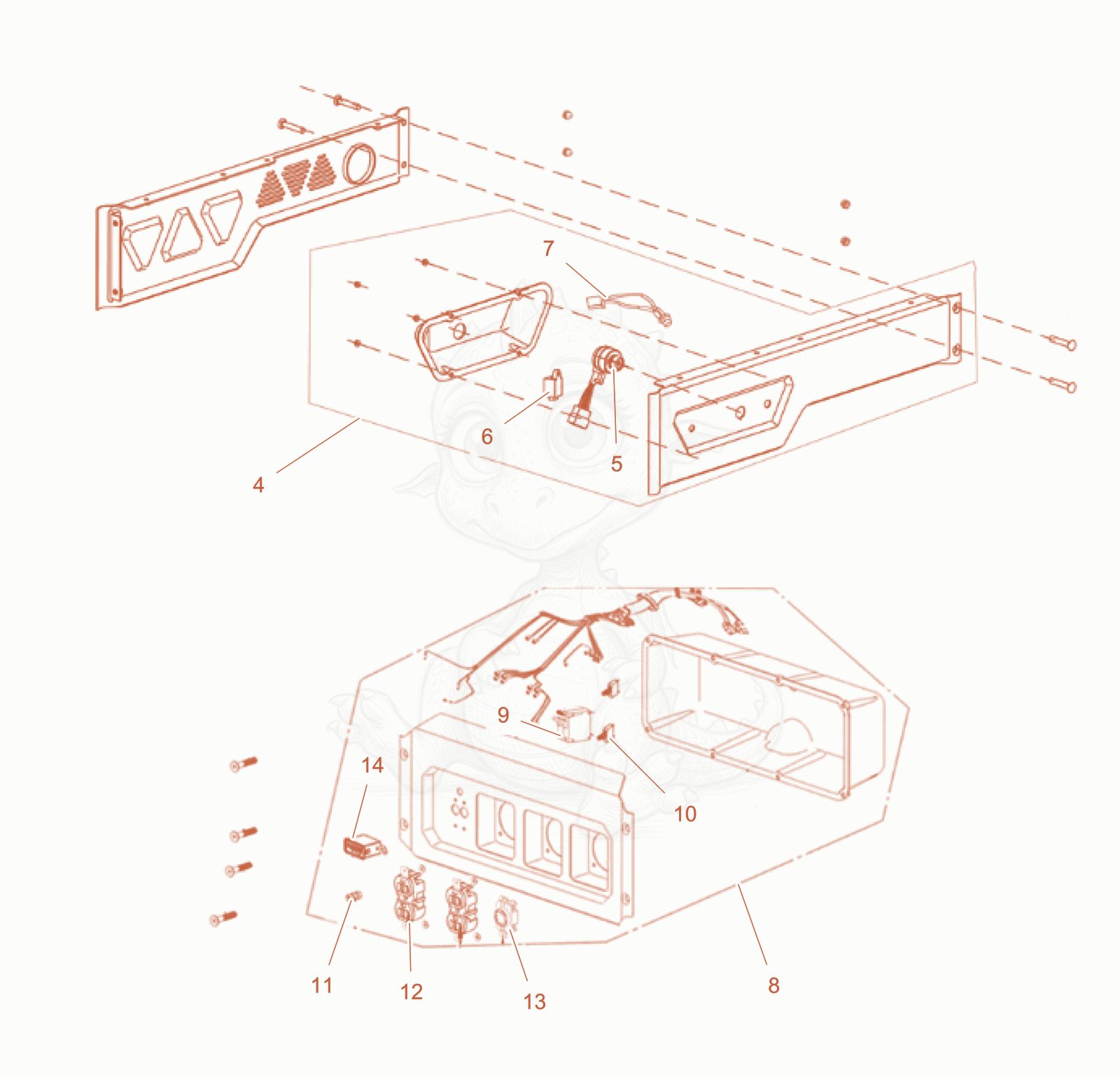

GDS5500GLA Control panel assy cpl. Diagram

Exploded parts diagram of the Control panel assy cpl. of a Wacker Neuson GDS5500GLA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100084441Not stocked
    Components of control panel×1
  • 55100084458Not stocked
    Start control switch×1
  • 65100084457Not stocked
    Flameout switch Drive block×1
  • 75100084456Not stocked
    Fuse box combination×1
  • 85100084455Not stocked
    Components of control panel×1
  • 95100084454Not stocked
    Overcurrent protector×1
  • 105100084453Not stocked
    Overcurrent protector×2
  • 115100084452Not stocked
    Terminal Set, Earth×1
  • 125100083871Not stocked
    Plug×2
  • 135100084451Not stocked
    Power plug combination×1
  • 145000408692
    $42.97
    Timer - 5000408692×1
