GDS5500G

GDS5500GLA Crankcase cpl. Diagram

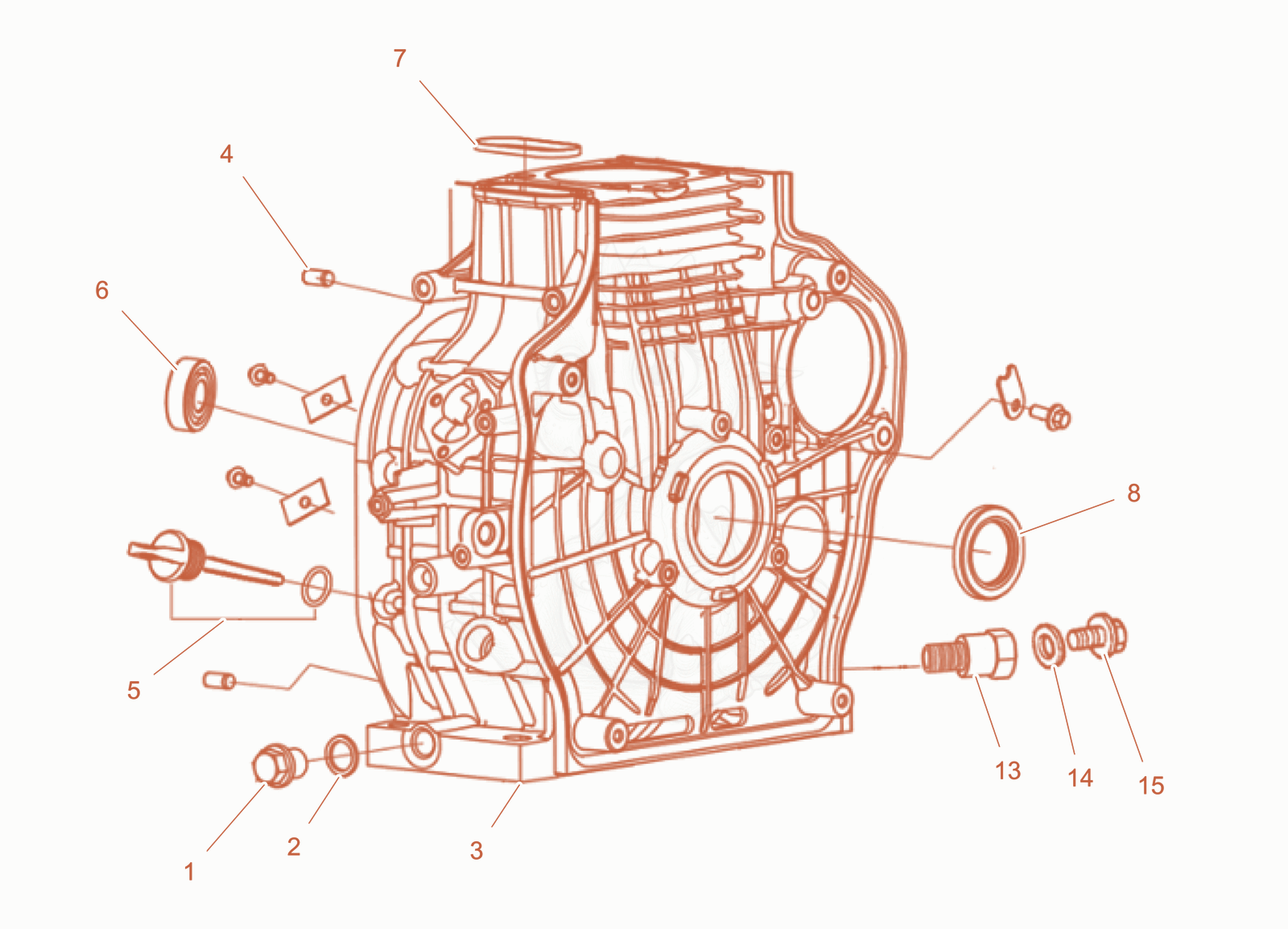

Exploded parts diagram of the Crankcase cpl. of a Wacker Neuson GDS5500GLA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100084393Not stocked
    Sealing plug screw×1
  • 25100084392Not stocked
    Flat washer×1
  • 35100084391Not stocked
    Crankcase body×1
  • 45100084390Not stocked
    Location pin×2
  • 55100084389Not stocked
    Oil rule combination×1
  • 65100084388Not stocked
    Bearing×1
  • 75100084387Not stocked
    Seal ring×1
  • 85100084386Not stocked
    Oil seal×1
  • 135100084404Not stocked
    Extension bar for bleeding×1
  • 145000409346
    $0.26
    Flat washer - 5000409346×1
  • 155000409345Not stocked
    Sealing plug screw×1
