Generator GH 3500

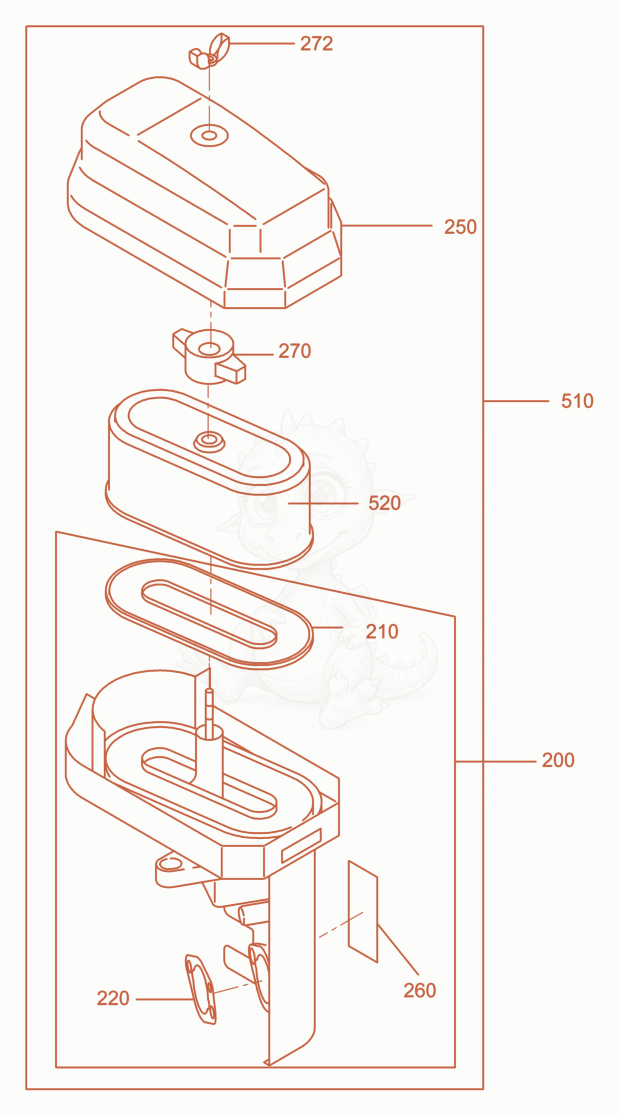

GH3500 Air filter cpl. Diagram

Exploded parts diagram of the Air filter cpl. of a Wacker Neuson GH3500, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2005000156755
    $75.13
    HOLDER-AIR CLEANER - 5000156755×1
  • 2105000156894
    $9.75
    GASKET - 5000156894×1
  • 2205000156748
    $10.39
    GASKET-AIR CLEANER - 5000156748×1
  • 2505000156756
    $47.84
    COVER-AIR CLEANER - 5000156756×1
  • 2605000156750
    $4.44
    LABEL - 5000156750×1
  • 2705000156757
    $4.72
    NUT-WING - 5000156757×1
  • 2725000208302Not stocked
    Wing nut×1
  • 5105000156754
    $312.81
    AIR CLEANER ASSEMBLY - 5000156754×1
  • 5205000156759
    $22.01
    ELEMENT-AIR CLEANER - 5000156759×1
