GP2600 GEN CARB

GP2600 Fuel Tank/Control Box/Frame Diagram

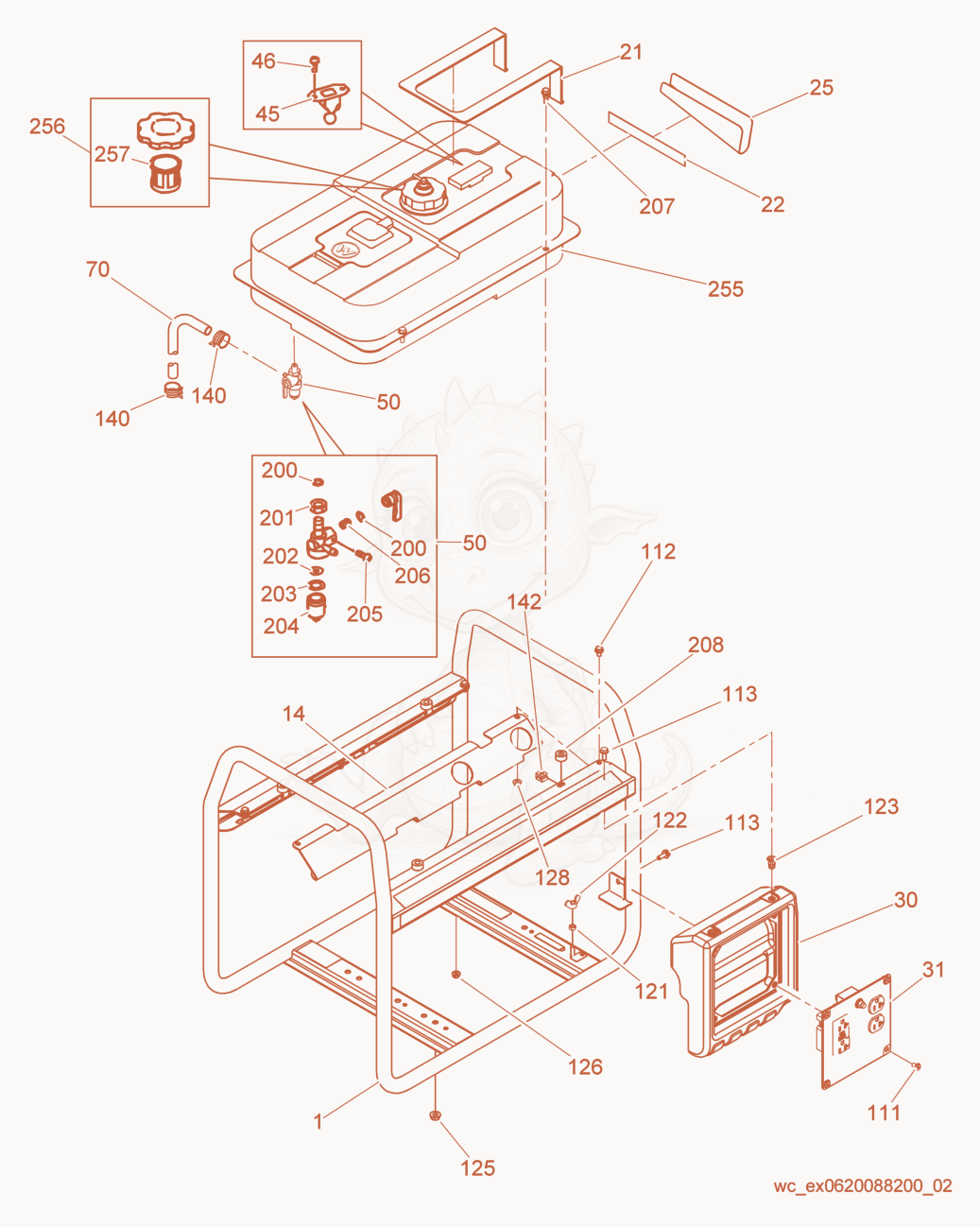

Exploded parts diagram of the Fuel Tank/Control Box/Frame of a Wacker Neuson GP2600, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000165333
$355.37
FRAME-WELDMENT GP2600 P-5000112006 - 5000165333×1
145000171006
$37.44
BRACKET-XMBR,SUPPORT,UPPER - 5000171006×2
215000172791
$15.11
GASKET-TANK,DEFLECTOR,TOP - 5000172791×1
225000172793
$4.87
GASKET-TANK,DEFLECTOR - 5000172793×1
255000172950
$15.62
PANEL-FUEL DEFLECTOR - 5000172950×1
305000162719
$287.49
BOX-CONTROL,SMALL,GP - 5000162719×1
315000171653
$193.25
CONTROL-PANEL,GP2600 - 5000171653×1
455000213426
$56.27
GAUGE-FUEL - 5000213426×1
465000215587
$3.14
Screw - 5000215587×2
505000084380
$32.30
STRAINER-FUEL - 5000084380×1
705000217786
$52.76
HOSE-FUEL - 5000217786×1
1115000162712
$1.97
SCREW M6X10,SBHD,FLGE 10.9,BC - 5000162712×4
1125000073164
$0.42
SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×6
1135000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×3
1215000010880
$0.03
NUT M6 8,HEX - 5000010880×1
1225000010895
$0.58
NUT-WING M6,STAINLESS STEEL - 5000010895×1
1235000089386
$0.79
NUT-JACK THD.,INSERT - 5000089386×3
1255000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×3
1265000029117
$0.03
NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
1285000155519
$0.06
NUT M6,FLANGED - 5000155519×6
1405000156532Not stocked
Hose clamp×2
1425000170184
$2.48
NUT M6,CLIP - 5000170184×5
2005000205669
$4.39
O-ring - 5000205669×2
2015000213425
$5.48
NUT-LOCK - 5000213425×1
2025000213424
$2.43
FILTER - 5000213424×1
2035000213423
$5.47
O-Ring - 5000213423×1
2045000213422
$12.01
Cup - 5000213422×1
2055000205668
$1.34
BOLT-LOCK - 5000205668×1
2065000205671
$1.80
spring - 5000205671×1
2075000215588
$6.26
BOLT-FLANGE - 5000215588×4
2085000215589
$4.95
GASKET-RUBBER - 5000215589×4
2555000213435
$471.47
TANK-FUEL - 5000213435×1
2565000205144
$47.07
CAP-FUEL TANK,COMPLETE - 5000205144×1
2575000053660
$8.13
FILTER-ENGINE FUEL - 5000053660×1
