GP4000 GENERATOR,CSA

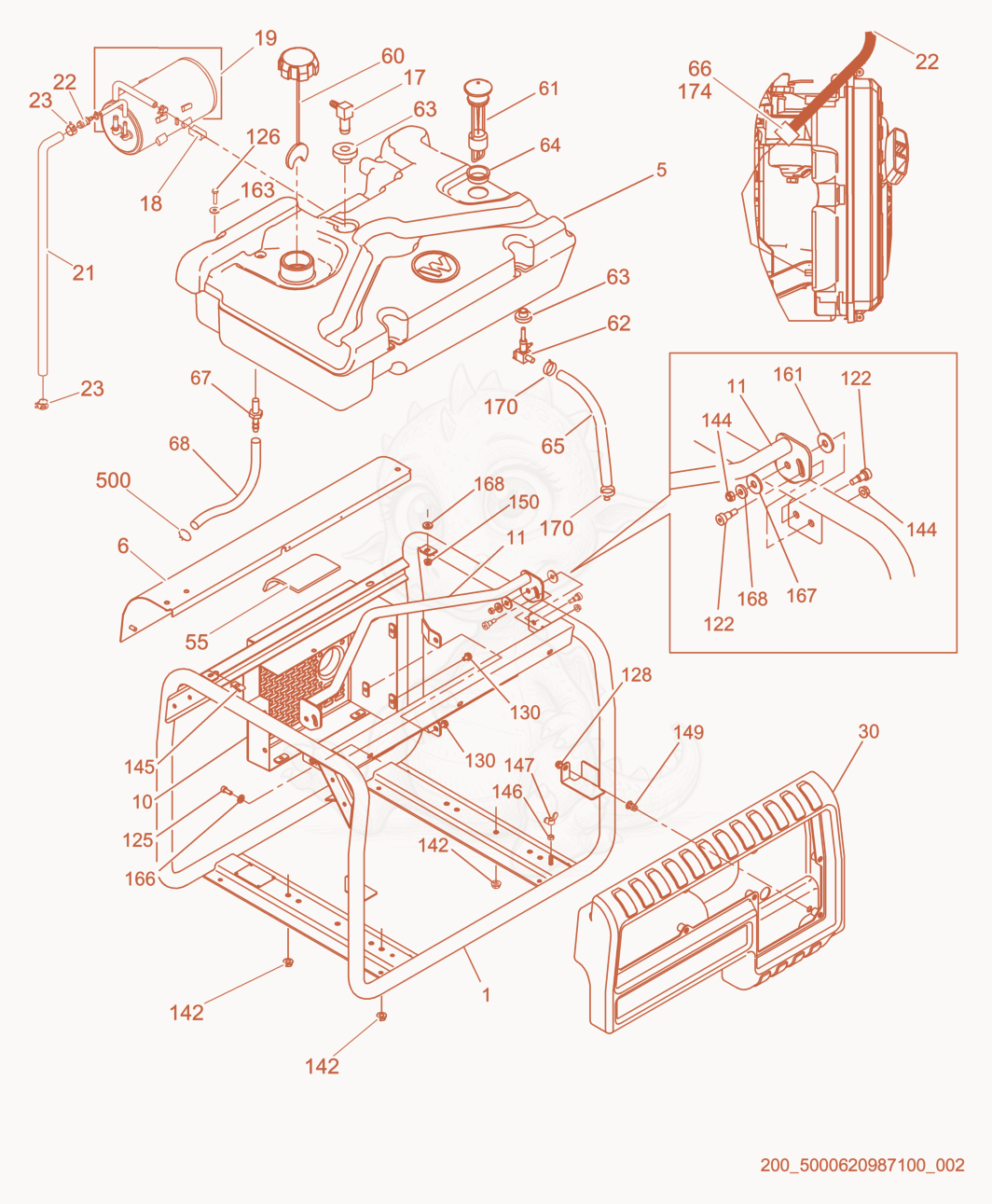

GP4000 Fuel Tank/Control Box/Frame Diagram
- FRAME-GP3800 P-5000112006 - 5000172059×1
- TANK-FUEL,GP,EPA & CARB - 5200000336×1
- COVER-TANK - 5000171207×1
- GUARD-MUFFLER GEN MED,FRONT - 5000164572×1
- BRACKET-LIFTEYE WELDMENT P-5000176420 - 5000161006×1
- FITTING-W/O FILTER - 5000111321×1
- FILTER-FOAM,RETICULATED,45PPI - 5000187596×1
- CAN-CARBON & HOSE ASSY. - 5000173444×1
- BOX-CONTROL GP,MED - 5000161010×1
- INSULATOR-SPACER - 5000172945×1
- CAP-FUEL,LOW PERM GASKET - 5000188220×1
- GAUGE-FUEL 146MM - 5000162900×1
- VALVE-FUEL SHUTOFF 3/16 HOSE - 5000162771×1
- BUSHING-TANK VALVE MOUNTING - 5000053577×2
- BUSHING-FUEL GAUGE - 5000088166×1
- HOSE-FUEL 3/16 X25.75,LOW-PERM - 5000165582×1
- FITTING 1/4 NPT X 3/8 BARB - 5000165523×1
- HOSE-FUEL, 3/8 LOW PERM, 533mm - 5200001974×1
- RIVET-PLASTIC - 5000171229×2
- SCREW-SHR SOC.HD,M6XM8X10,12.9 - 5000162747×4
- SCREW M6 X 12 SOC.HD. - 5000011554×3
- SCREW-LOCK M6X25,HEX - 5000088806×4
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
- SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×10
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×3
- NUT-LOCK M6 HEX. - 5000010368×4
- NUT M6 CLIP ZINC PLATED - 5000088190×4
- NUT M6 8,HEX - 5000010880×1
- NUT-WING M6,STAINLESS STEEL - 5000010895×1
- NUT-JACK THD.,INSERT - 5000089386×2
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
- WASHER-NYLON FLAT,8.4X24X2.36 - 5000162291×2
- WASHER B6.4 FLAT - 5000010373×4
- WASHER-LOCK M6,EXT.STAR - 5000170941×3
- WASHER B8.4 FLAT - 5000010374×2
- WASHER M6.4 - 5000084896×4
- CLAMP-HOSE 3/16 - 5000114201×2
- CAN-CARBON & HOSE ASSY. - 5000173444×1
