GP5500A

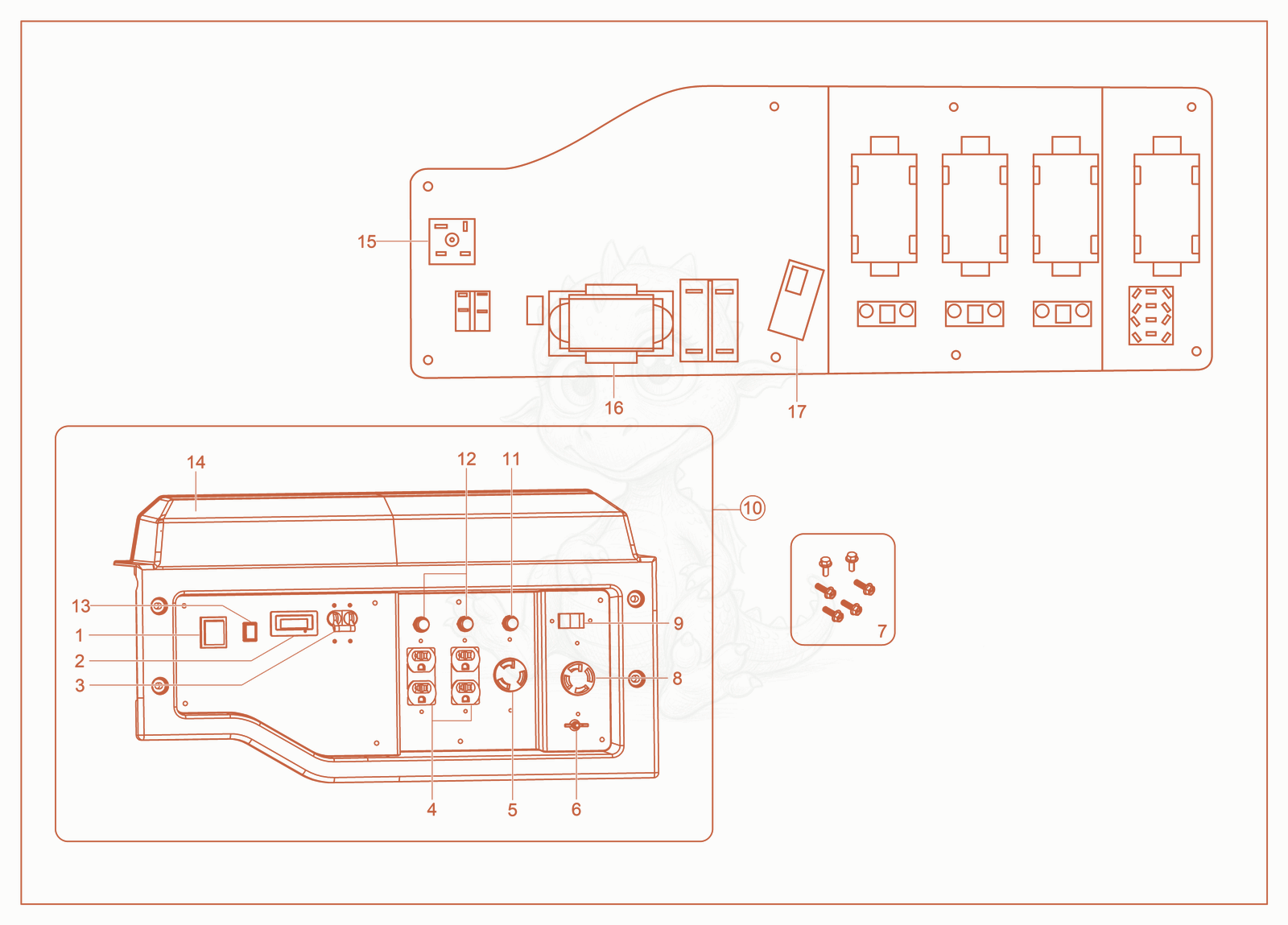

GP5500A Main Panel Diagram

Exploded parts diagram of the Main Panel of a Wacker Neuson GP5500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100071334
    $18.44
    Rocker switch, engine on/off - 5100071334×1
  • 25100071340
    $43.09
    HOURMETER,MECHANICAL - 5100071340×1
  • 35100071309
    $100.38
    Circuit breaker,21.85A - 5100071309×1
  • 45100071339
    $102.06
    Receptacle- 5-20R, 20A, 120V - 5100071339×2
  • 55100071338
    $17.97
    Receptacle-L5-30R, 30A, 120V - 5100071338×1
  • 65100071282
    $14.86
    Grounding lug - 5100071282×1
  • 75100071320
    $9.05
    Mounting hardware kit - 5100071320×1
  • 85100071337
    $20.53
    Receptacle-L14-30, 120V/240V, 30 AMP - 5100071337×1
  • 95100071316
    $54.42
    Voltage selector switch, 25A/125V-250V - 5100071316×1
  • 105100071326
    $508.81
    Control panel - 5100071326×1
  • 115100071251
    $38.43
    BREAKER-CIRCUIT,120V 30A - 5100071251×1
  • 125100071336
    $11.54
    Circuit breaker, 120V, 20A - 5100071336×2
  • 135100071335
    $21.53
    Idle switch - 5100071335×1
  • 145100071314
    $84.83
    Control box housing - 5100071314×1
  • 155100071257
    $18.44
    Bridge rectifier - 5100071257×1
  • 165100071256
    $104.40
    TRANSFORMER - 5100071256×1
  • 175100071261
    $38.41
    Auto idle control - 5100071261×1
  • 185100071288
    $17.41
    Fuse-holder - 5100071288×1
  • 195100071287
    $15.32
    FUSE-5 AMP - 5100071287×1
