GP5600A

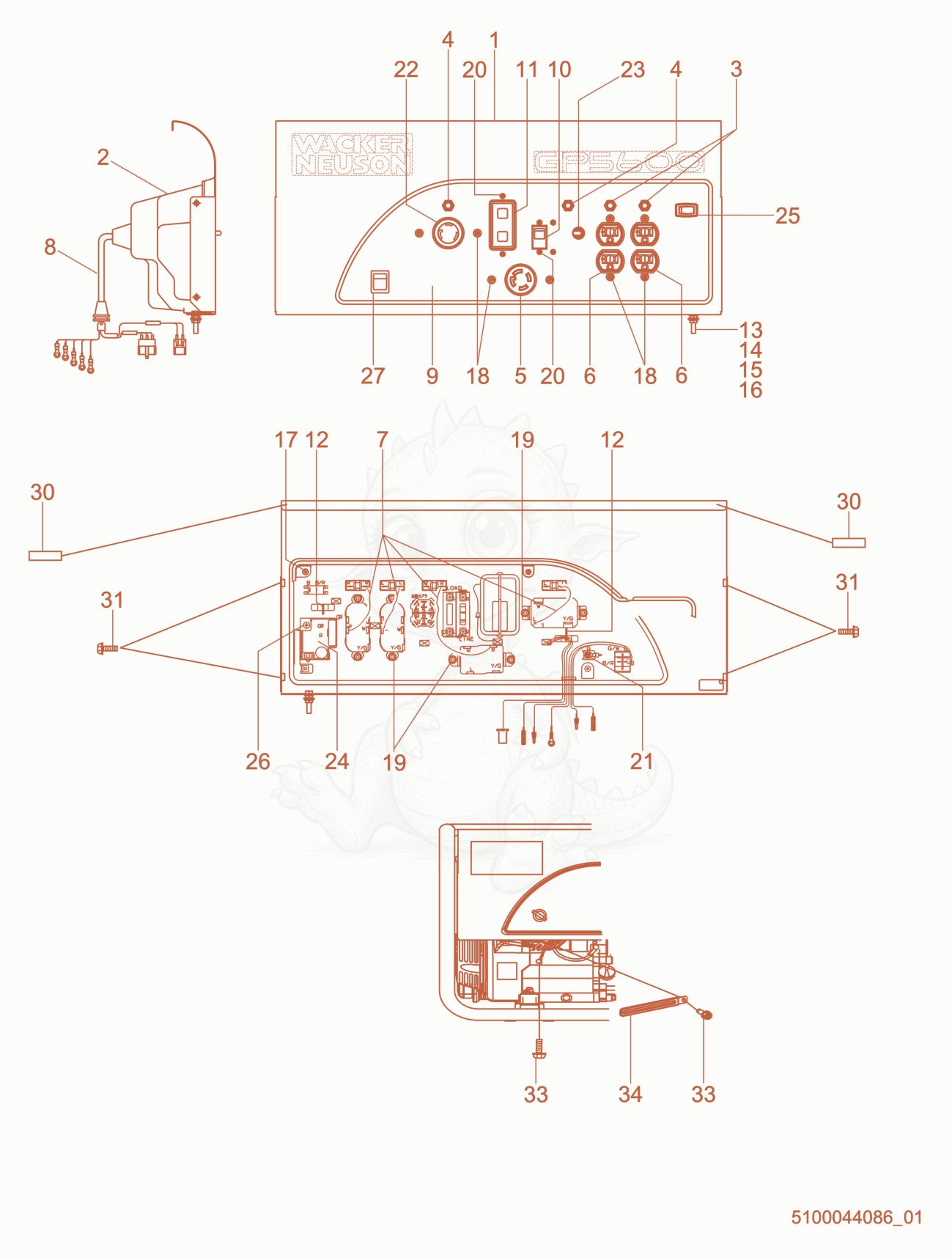

GP5600A Control Box cpl. Diagram
- PANEL - 5100043823×1
- Cover - 5000175188×1
- CIRCUIT BREAKER COMPLETE - 5000175196×2
- CIRCUIT BREAKER COMPLETE - 5000175197×2
- RECEPTACLE, 125/250V-30A - 5200003522×1
- KIT-GFI RECEPTACLE ,125V-20A - 5200003516×2
- KIT-TERMINAL - 5100043824×1
- WIRING HARNESS - 5100043825×1
- PLATE-PANEL - 5100043827×1
- BREAKER - 5100043829×1
- MODULE-GFCI - 5000163895×1
- Clip - 5000170908×2
- BOLT M6 X 28 - 5000170909×1
- NUT M6 - 5000170910×2
- WASHER-SPRING M6 - 5000170911×2
- WASHER M6 - 5000170912×1
- SCREW M4 X 10 - 5000170913×4
- SCREW M4 X 10,BLACK - 5000170914×8
- Nut - 5000170915×8
- SCREW M3 X 6 - 5000170936×6
- SCREW M4 X 6 - 5000170916×1
- RECEPTACLE 30A, 125V - 5200003525×1
- SWITCH - 5100043830×1
- MODULE-AUTO IDLE - 5000170940×1
- 255100043831Not stockedSwitch×1
- SCREW M5 X 12 - 5000171704×1
- SWITCH-ENGINE,ON-OFF - 5200003521×1
- GROMMET - 5100043832×2
- BOLT-FLANGE, 6X16 - 5100043821×4
- BOLT-FLANGE, 6X12 - 5100043836×2
- Plate - 5000179531×1
